How Do Pretreatment Systems Protect Reverse Osmosis Membranes?

Pretreatment systems play a crucial role in safeguarding reverse osmosis membranes, ensuring the longevity and efficiency of reverse osmosis plant operations. These systems act as the first line of defense against various contaminants that could potentially damage or foul the delicate RO membranes. By implementing a comprehensive pretreatment strategy, operators can significantly extend the lifespan of their membranes, reduce maintenance costs, and maintain optimal performance of their reverse osmosis systems. Effective pretreatment involves a series of processes designed to remove suspended solids, organic matter, and other potential foulants from the feed water before it reaches the RO membranes. This multi-step approach typically includes coagulation, flocculation, sedimentation, and filtration. Additionally, chemical treatments may be employed to adjust pH levels, prevent scaling, and inhibit biological growth. By addressing these issues upstream, pretreatment systems ensure that only high-quality water enters the RO process, minimizing the risk of membrane fouling, scaling, and degradation.

Essential Pretreatment Steps: Multimedia Filtration and Cartridge Filters

Multimedia filtration and cartridge filters are two critical components of an effective pretreatment system for reverse osmosis plants. These filtration methods work in tandem to remove a wide range of particulates and impurities from the feed water, protecting the RO membranes from damage and fouling.

Multimedia Filtration: The First Line of Defense

Multimedia filtration utilizes a bed of various materials with different sizes and densities to trap particles of varying sizes. Typically, a multimedia filter consists of layers of anthracite coal, sand, and garnet. As water passes through these layers, larger particles are caught in the upper layers, while smaller particles are trapped in the lower, denser layers. This gradual filtration process allows for efficient removal of suspended solids, reducing the turbidity of the feed water significantly.

The advantages of multimedia filtration include:

High dirt-holding capacity
Longer filter runs between backwashes
Improved water quality for subsequent treatment steps
Reduced load on downstream filtration systems

Cartridge Filters: Fine-Tuning the Filtration Process

Following multimedia filtration, cartridge filters serve as a polishing step to remove any remaining fine particles. These filters typically use disposable cartridges with pore sizes ranging from 1 to 20 microns. The cartridge filters act as a safeguard, capturing any particles that may have passed through the multimedia filter or been introduced in the piping between filtration stages.

Key benefits of cartridge filtration include:

Removal of fine particulates down to sub-micron levels
Protection against sudden spikes in feed water turbidity
Easy maintenance and replacement of filter elements
Customizable filtration based on specific water quality requirements

By implementing both multimedia and cartridge filtration, operators can ensure that the feed water entering the RO system is of the highest quality, minimizing the risk of membrane fouling and extending the operational life of the RO plant.

The Critical Role of Antiscalant Dosing Systems

Antiscalant dosing systems play a vital role in protecting reverse osmosis membranes from scaling, one of the most common and detrimental issues faced by reverse osmosis plants. Scaling occurs when dissolved minerals in the feed water precipitate and form solid deposits on the membrane surface, reducing its permeability and overall efficiency.

Understanding Scale Formation in RO Systems

Scale formation is primarily caused by the concentration of dissolved salts as water passes through the RO membranes. As pure water is extracted, the remaining brine becomes supersaturated with minerals such as calcium carbonate, calcium sulfate, and silica. These minerals can precipitate out of solution and form hard, crystalline deposits on the membrane surface, leading to:

Reduced water flux and system productivity
Increased energy consumption due to higher operating pressures
Shortened membrane lifespan
Potential damage to high-pressure pumps and other equipment

How Antiscalants Work

Antiscalants are specialized chemicals designed to prevent scale formation by interfering with the crystallization process of dissolved minerals. They function through several mechanisms:

Threshold inhibition: Preventing the formation of scale nuclei
Crystal modification: Altering the shape of forming crystals to make them less likely to adhere to surfaces
Dispersion: Keeping small particles suspended in solution rather than allowing them to settle and form scale

By implementing an effective antiscalant dosing system, operators can significantly increase the recovery rate of their RO plants while minimizing the risk of membrane scaling. This allows for more efficient operation, reduced downtime for cleaning, and extended membrane life.

Optimizing Antiscalant Dosing

To maximize the effectiveness of antiscalant treatment, consider the following factors:

Water chemistry analysis: Conduct regular testing to determine the specific scaling potential of your feed water
Antiscalant selection: Choose the appropriate antiscalant based on your water chemistry and system design
Dosing accuracy: Implement precise dosing equipment to ensure optimal antiscalant concentration
Monitoring and adjustment: Regularly monitor system performance and adjust dosing as needed to maintain optimal protection

By carefully managing the antiscalant dosing system, operators can ensure their RO membranes remain free from scale, maintaining peak performance and longevity.

How to Control Biological Fouling and Oxidants Pre-RO?

Controlling biological fouling and managing oxidants in the pre-RO stage are crucial aspects of maintaining a healthy and efficient reverse osmosis plant. These two factors can significantly impact membrane performance and lifespan if not properly addressed.

Tackling Biological Fouling

Biological fouling, or biofouling, occurs when microorganisms colonize and grow on the membrane surface, forming a biofilm. This biofilm can severely reduce membrane permeability and increase the differential pressure across the RO system. To control biofouling effectively:

Implement a robust chlorination system: Chlorine or chloramine dosing can effectively control microbial growth in the pretreatment stages.
Use biocides: Non-oxidizing biocides can be employed periodically to control bacterial populations resistant to chlorine.
Optimize feed water pretreatment: Ensure effective removal of nutrients that support microbial growth through processes like multimedia filtration and activated carbon adsorption.
Maintain clean pretreatment systems: Regular cleaning and disinfection of pretreatment equipment prevent the accumulation of biofilm that can seed downstream RO membranes.

Managing Oxidants Pre-RO

While oxidants like chlorine are effective in controlling biological growth, they can be detrimental to RO membranes. Most RO membranes are sensitive to oxidants and can degrade rapidly if exposed. To manage oxidants effectively:

Implement dechlorination: Use activated carbon filters or chemical reducing agents like sodium bisulfite to remove residual chlorine before the feed water reaches the RO membranes.
Monitor oxidation-reduction potential (ORP): Install ORP sensors to ensure complete removal of oxidants before the RO stage.
Optimize dosing: Fine-tune chlorination and dechlorination dosing to maintain effective biofouling control while protecting RO membranes.
Consider alternative disinfection methods: UV disinfection or membrane filtration (MF/UF) can provide effective microbial control without the need for chemical oxidants.

Balancing Biofouling Control and Membrane Protection

Striking the right balance between controlling biological fouling and protecting RO membranes from oxidant damage requires careful management and monitoring. Consider implementing the following strategies:

Regular membrane cleaning: Implement a proactive cleaning regimen to remove biofilm before it becomes problematic.
Advanced monitoring systems: Utilize real-time monitoring of key parameters such as differential pressure, flux, and salt passage to detect early signs of fouling.
Operator training: Ensure plant operators are well-trained in recognizing and responding to signs of biofouling or oxidant breakthrough.
Periodic system audits: Conduct comprehensive system audits to identify potential weak points in your biofouling control and oxidant management strategies.

By implementing these strategies, operators can effectively control biological fouling while protecting their RO membranes from oxidant damage, ensuring optimal performance and longevity of their reverse osmosis systems.

Conclusion

Effective pretreatment is essential for protecting reverse osmosis membranes and ensuring the longevity and efficiency of RO plants. By implementing comprehensive pretreatment strategies, including multimedia filtration, cartridge filters, antiscalant dosing, and proper management of biological fouling and oxidants, operators can significantly extend membrane life, reduce operational costs, and maintain optimal system performance.

Are you looking to optimize your reverse osmosis plant's pretreatment system? Guangdong Morui Environmental Technology Co., Ltd. specializes in providing cutting-edge water treatment solutions for a wide range of industries. Our expertise spans industrial wastewater treatment, domestic sewage management, seawater desalination, and drinking water production. We offer not only top-quality equipment but also comprehensive installation, commissioning, and after-sales services to ensure your peace of mind.

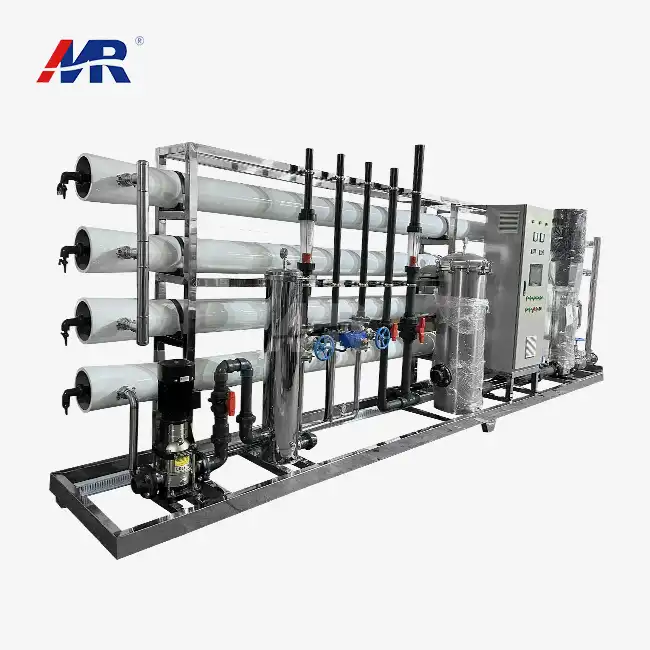

With our state-of-the-art 60m³/hour reverse osmosis plants and innovative RO systems, we cater to diverse needs across various sectors, including manufacturing, food and beverage, pharmaceuticals, and municipal utilities. Our commitment to excellence and advanced technology ensures reliable, efficient, and customizable solutions for all your water purification requirements.

Don't let suboptimal pretreatment compromise your RO system's performance. Contact us today at benson@guangdongmorui.com to discover how our expertise can help you achieve superior water quality and operational efficiency in your reverse osmosis plant.
