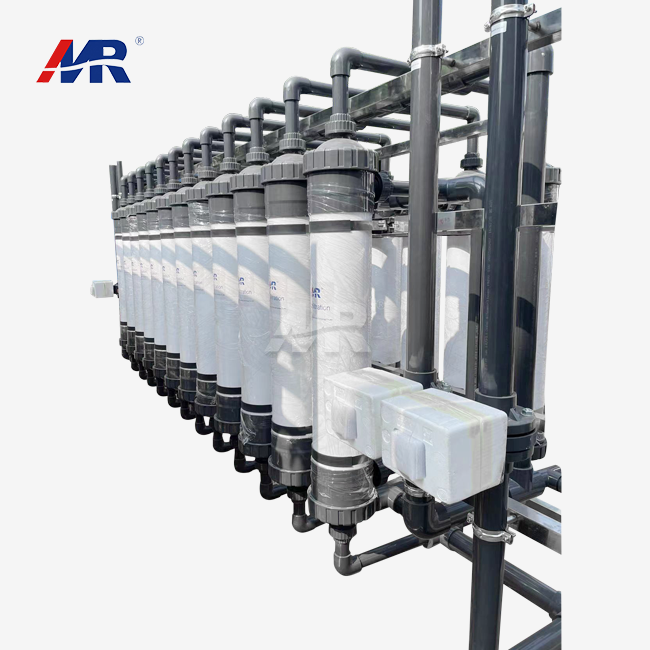

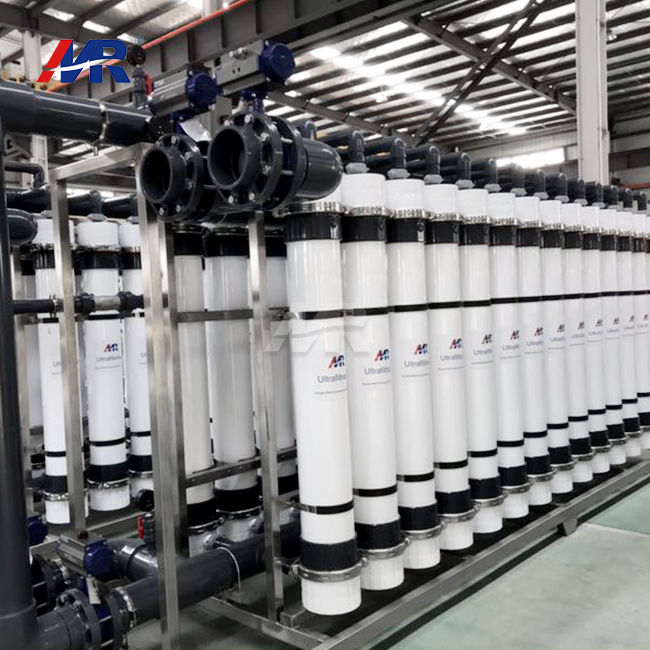

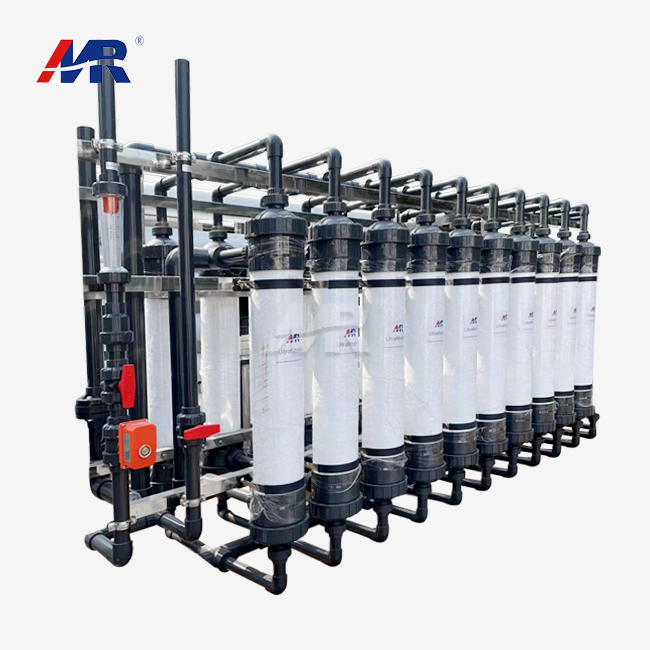

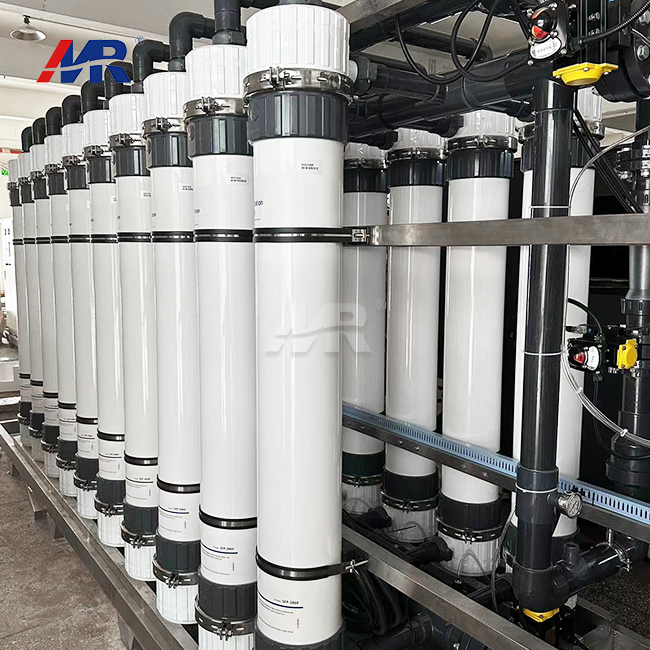

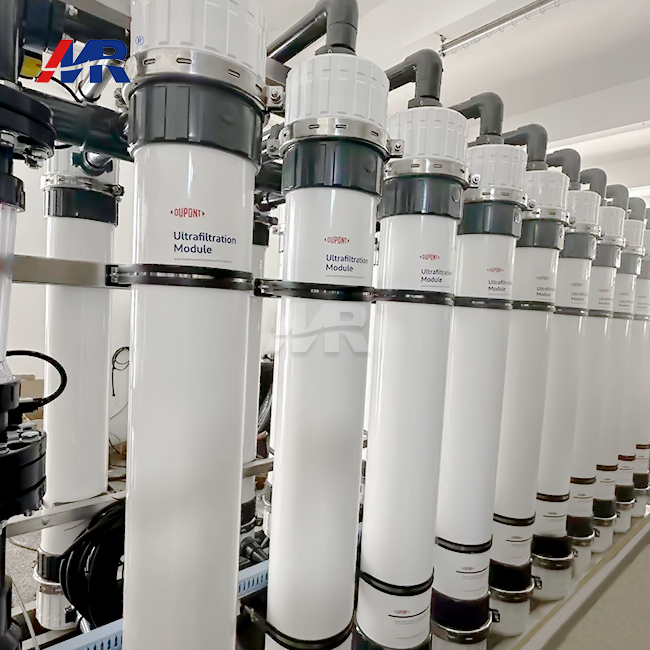

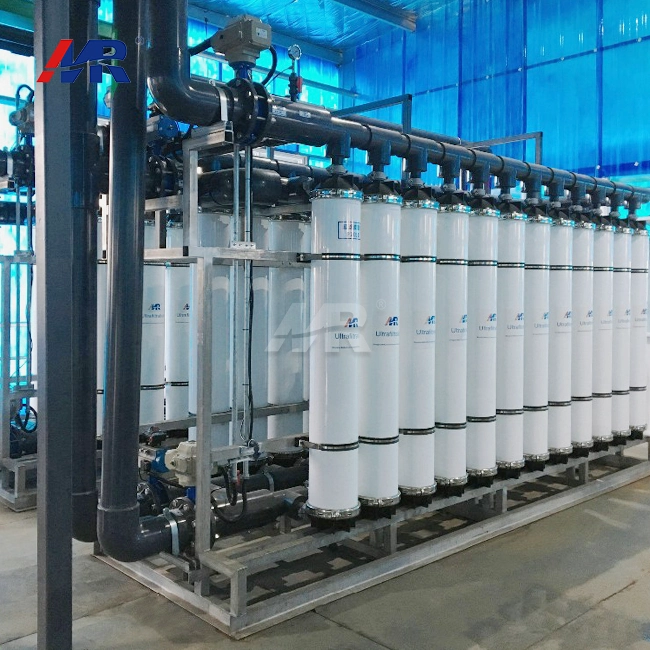

Ultrafiltration Equipment

Ultrafiltration equipment uses pressure-driven membrane separation technology with pore sizes of 0.01-0.1 um to remove suspended solids, colloids, bacteria, and viruses from water. As a reliable pretreatment step for RO systems or a standalone purification solution, UF equipment delivers consistent permeate quality with turbidity below 0.1 NTU and SDI under 3. The system operates at low pressure (0.1-0.3 MPa), keeping energy consumption minimal while achieving over 99.9% removal of particles and microorganisms.

Key advantages:

• High filtration precision with stable effluent quality (turbidity < 0.1 NTU)

• Low operating pressure reduces energy costs by 30-50% vs. conventional systems

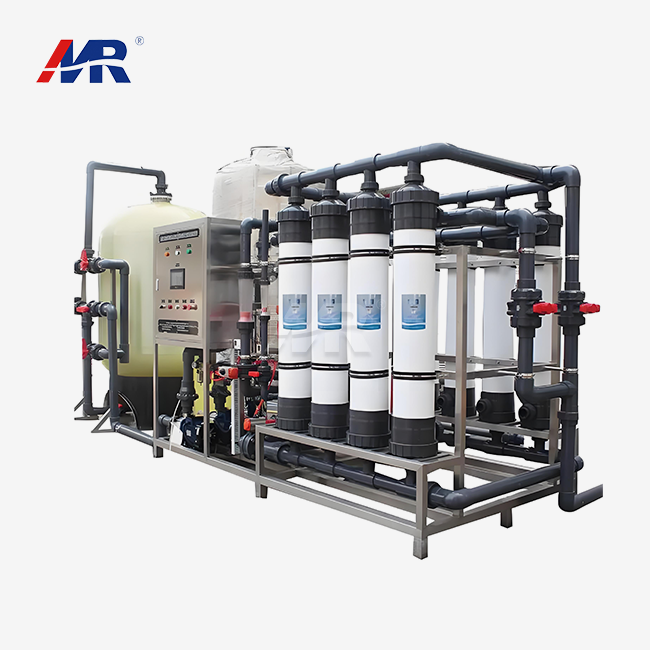

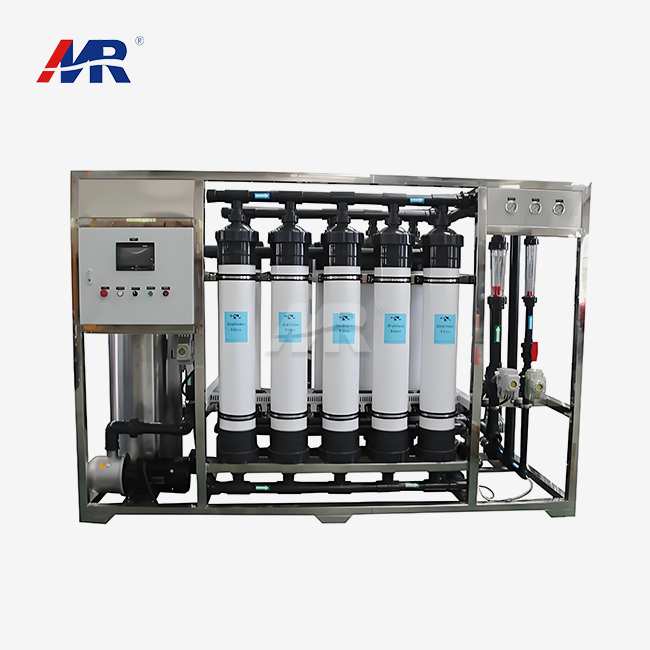

• Modular skid-mounted design for easy expansion and maintenance

• Automated PLC control with backwash and CIP cleaning functions

• PVDF membrane elements with 3-5 year service life under normal conditions

Typical applications: Drinking water purification, RO pretreatment, wastewater recycling, food & beverage processing, pharmaceutical water systems

FAQ:

Q: How long do Ultrafiltration Equipment last?

A: With proper maintenance and regular chemical cleaning, PVDF membranes typically serve 3-5 years.

Q: Can UF handle high-turbidity feed water?

A: Yes, cross-flow filtration mode allows stable operation even at feed turbidity up to 50 NTU.

Contact our engineering team today for a customized ultrafiltration solution tailored to your water quality requirements.
