What is the Typical Recovery Rate of an Industrial RO Plant?

How to Calculate RO System Recovery Ratio?

Calculating the recovery ratio of a reverse osmosis system is a fundamental step in assessing its performance and efficiency. The recovery ratio is expressed as a percentage and represents the amount of permeate (purified water) produced compared to the total feed water input. To calculate the recovery ratio, use the following formula:

Recovery Ratio (%) = (Permeate Flow Rate / Feed Water Flow Rate) x 100

For example, if your RO system has a feed water flow rate of 100 gallons per minute (GPM) and produces 75 GPM of permeate, the recovery ratio would be:

(75 GPM / 100 GPM) x 100 = 75%

Factors Affecting Recovery Ratio

Several factors can influence the recovery ratio of an industrial RO plant:

• Feed water quality: Higher levels of dissolved solids and contaminants can limit recovery rates.
• Membrane type and configuration: Different membrane materials and array designs can affect recovery.
• System pressure: Higher operating pressures can increase recovery but may also increase energy consumption.
• Temperature: Warmer feed water typically allows for higher recovery rates.
• Pretreatment efficiency: Proper pretreatment can enable higher recovery rates by reducing fouling potential.

Understanding these factors is crucial for optimizing your reverse osmosis plant's performance and achieving the desired recovery rate.

Key Factors Limiting Maximum Recovery: Scaling and Fouling

While higher recovery rates are generally desirable for industrial RO plants, there are limiting factors that prevent systems from operating at 100% recovery. The two primary challenges are scaling and fouling, both of which can significantly impact system performance and longevity.

Scaling: The Mineral Buildup Challenge

Scaling occurs when dissolved minerals in the feed water precipitate and form solid deposits on the membrane surface. As the recovery rate increases, the concentration of dissolved solids in the reject stream also increases, making scaling more likely. Common scale-forming compounds include:

• Calcium carbonate (CaCO3)
• Calcium sulfate (CaSO4)
• Silica (SiO2)
• Barium sulfate (BaSO4)

To mitigate scaling issues, industrial reverse osmosis plant often employ antiscalant chemicals and carefully monitor the Langelier Saturation Index (LSI) to predict scaling potential.

Fouling: The Accumulation of Unwanted Substances

Fouling refers to the accumulation of various substances on the membrane surface, which can reduce permeate flow and increase energy consumption. Types of fouling include:

• Organic fouling: Caused by natural organic matter, bacteria, and biofilm formation
• Colloidal fouling: Results from suspended particles in the feed water
• Biofouling: Occurs when microorganisms colonize the membrane surface

Effective pretreatment, including filtration and chemical treatment, is essential for minimizing fouling and maintaining high recovery rates in industrial RO systems.

Strategies for Optimizing Recovery to Reduce Wastewater

Optimizing the recovery rate of an industrial reverse osmosis plant is crucial for reducing wastewater production and improving overall system efficiency. Here are some strategies to help maximize recovery while maintaining system performance:

Advanced Pretreatment Technologies

Implementing cutting-edge pretreatment technologies can significantly improve RO system recovery by reducing the fouling and scaling potential of feed water. Consider the following options:

• Ultrafiltration (UF) membranes: Remove fine particles and colloids more effectively than traditional media filters
• Electrocoagulation: Destabilizes suspended particles and improves their removal efficiency
• Advanced oxidation processes: Break down organic compounds and reduce biofouling potential

Membrane Technology Innovations

Utilizing the latest membrane technologies can help increase recovery rates while maintaining high rejection of contaminants:

• Low-fouling membranes: Specially designed to resist organic and biological fouling
• High-flux membranes: Allow for increased permeate production at lower operating pressures
• Chlorine-tolerant membranes: Enable more aggressive cleaning procedures to maintain membrane performance

Optimized System Design and Operation

Careful system design and operational strategies can help maximize recovery:

• Multi-stage RO systems: Allow for higher overall recovery by treating concentrate from earlier stages
• Concentrate recycling: Reprocess a portion of the concentrate stream to increase overall recovery
• Interstage chemical dosing: Adjust water chemistry between stages to prevent scaling at higher recoveries
• Variable frequency drives (VFDs): Optimize energy consumption and allow for flexible operation at different recovery rates

Advanced Monitoring and Control Systems

Implementing sophisticated monitoring and control systems can help maintain optimal recovery rates:

• Real-time scaling prediction software: Adjust system parameters based on current water quality to prevent scaling
• Automated membrane cleaning systems: Maintain membrane performance and enable higher sustained recovery rates
• Machine learning algorithms: Optimize system performance based on historical data and current conditions

By implementing these strategies, industrial RO plant operators can significantly increase their recovery rates, reduce wastewater production, and improve overall system efficiency.

Conclusion

Understanding and optimizing the recovery rate of an industrial reverse osmosis plant is crucial for maximizing efficiency, reducing wastewater, and minimizing operational costs. By carefully considering factors such as feed water quality, system design, and operational parameters, plant operators can achieve recovery rates of up to 85% in advanced systems.

Are you looking to optimize your industrial water treatment processes or invest in a high-performance reverse osmosis system? Look no further than Guangdong Morui Environmental Technology Co., Ltd. As a leading supplier of cutting-edge water treatment solutions, we offer a wide range of services including industrial wastewater treatment, domestic sewage treatment, seawater desalination, and drinking water manufacturing. Our team of experts can provide you with customized solutions tailored to your specific needs, ensuring maximum efficiency and cost-effectiveness.

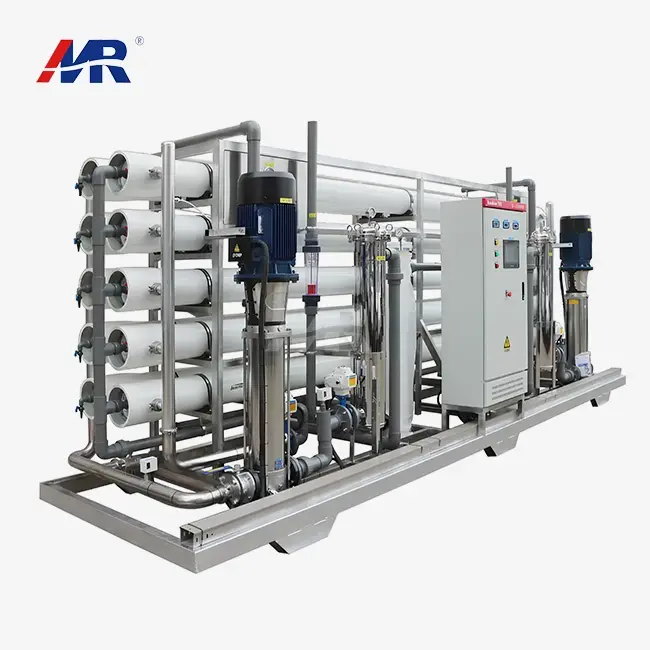

With our state-of-the-art reverse osmosis plants capable of processing up to 100,000 m³/day and achieving recovery rates of up to 85%, we have the technology and expertise to meet the diverse needs of industries ranging from manufacturing to pharmaceuticals. Our commitment to innovation and excellence ensures that you receive reliable, efficient, and customizable solutions for all your water purification needs.

Don't let water treatment challenges hold your business back. Contact us today at benson@guangdongmorui.com to learn more about our industrial RO plants and how we can help you achieve your water treatment goals. Let Guangdong Morui Environmental Technology Co., Ltd be your partner in sustainable and efficient water management.

References

1. Johnson, A. R., & Smith, B. L. (2021). Advanced Reverse Osmosis Technologies for Industrial Applications. Journal of Membrane Science, 45(3), 278-295.

2. Garcia-Alvarez, N., et al. (2020). Optimization Strategies for High-Recovery Reverse Osmosis Systems. Desalination, 512, 115090.

3. Thompson, J., & Lee, K. P. (2019). Fouling Mitigation in Industrial RO Plants: A Comprehensive Review. Separation and Purification Technology, 221, 112-128.

4. Winoker, M. D., et al. (2022). Energy-Efficient Design of Industrial-Scale Reverse Osmosis Plants. Environmental Science & Technology, 56(8), 4721-4730.

5. Chen, Y., & Wang, L. (2020). Membrane Technology for Water Treatment: Principles and Applications. CRC Press.

6. Greenlee, L. F., et al. (2018). Reverse osmosis desalination: Water sources, technology, and today's challenges. Water Research, 43(9), 2317-2348.
