What roles do pre-filters, membranes and post-treatment play in osmosis systems?

An osmosis water purification system needs pre-filters, membranes, and post-treatment parts to work properly and make clean water. Pre-filters remove larger particles to protect the membrane. The semi-permeable membrane is the most significant part of the system. It only lets water molecules through and keeps particles that are dissolved out. Lastly, adding minerals back into the water after treatment makes it even better. This multi-step process in reverse osmosis plants and brackish water reverse osmosis (BWRO) plants makes sure that the water is of the finest quality for a wide range of business and industrial needs. You need to know how these parts work together to build osmosis-based water treatment systems that work well and efficiently.

The Critical Role of Pre-filtration in Osmosis Systems

The first step in any osmosis water purification system is pre-filtration. Its main job is to get rid of bigger particles, silt, and chlorine that could hurt or dirty the sensitive reverse osmosis membrane. If the membrane isn't properly pre-filtered, it won't last as long or work as well.

Types of Pre-filters Used in Osmosis Systems

There are a few different kinds of pre-filters that are often used in osmosis systems:

• Sediment filters get rid of dirt, sand, and other small particles.
• Activated carbon filters: They stick to chlorine, organic molecules, and certain chemicals.
• Filters for more than one type of media: Use a mix of different filtration materials to get rid of all contaminants.

The kind of pre-filtration system you need depends on the quality of the input water and the needs of the osmosis system. For example, a reverse osmosis plant processing brackish groundwater may require more extensive pre-treatment compared to a system treating pre-filtered municipal water.

Benefits of Effective Pre-filtration

There are a number of benefits to good pre-filtration:

• Reduces fouling and scaling, which makes the membrane last longer.
• Makes the whole system work better and get more water back.
• Cuts down on the need for frequent cleaning or replacement of membranes, which lowers operational expenses.
• Makes sure that the water quality is always the same

Operators can greatly improve the effectiveness and lifespan of their osmosis water purification systems by putting money into strong pre-filtration.

The Central Function of Membranes in Osmosis Purification

Any water treatment system that uses osmosis needs membranes as the main part. These semi-permeable barriers are meant to let water molecules through yet keep out dissolved solids, pollutants, and even certain gasses.

How Osmosis Membranes Work？

To make reverse osmosis work, you have to use pressure to push water through the membrane. The tiny holes in the membrane are so small that they keep most dissolved salts, chemical compounds, bacteria, and other contaminants out. In many cases, this technique gets rid of up to 99% of total dissolved solids (TDS).

Types of Membranes Used in Osmosis Systems

Different types of membranes are utilized for different purposes and water quality needs:

• Membranes made of thin-film composites (TFC): Most prevalent in modern RO systems because they have high flux and rejection rates
• Membranes made of cellulose acetate: TFC membranes are more efficient yet less tolerant of chlorine.
• Membranes for nanofiltration: Used to selectively remove ions and make things softer

The type of membrane you choose will affect how well the system works, how much energy it uses, and the quality of the water it cleans. For example, BWRO plants usually use special low-pressure membranes made for treating brackish water.

Membrane Configuration and System Design

To get the best performance out of industrial osmosis systems, the membranes are usually set up in certain ways:

• Elements that are coiled in a spiral: Most common in RO and NF systems
• Modules with hollow fibers: Used in some ultrafiltration situations
• Systems with plates and frames: Not as prevalent, but utilized in some specific situations

The overall design and performance of osmosis water purification plants are affected by the membrane configuration and other parameters like the quality of the input water, the target recovery rate, and the energy efficiency requirements.

The Finishing Touch: Post-Treatment in Osmosis Systems

In many osmosis water purification systems, post-treatment is the last step. It improves the permeate water so that it meets certain quality standards or end-use criteria. This stage is very important for making water that is not only clean but also well-balanced and good for its intended use.

Post-Treatment Processes That Are Common

Post-treatment may include numerous steps, depending on the application:

• Adjusting the pH: Making the RO permeate less acidic
• Adding important minerals back into the cleansed water is called remineralization.
• Disinfection: Making sure there are no harmful microbes, usually by using UV light or chlorine.
• Degasification: Removing dissolved gases like CO2 that may have traveled through the membrane

For instance, in drinking water applications, post-treatment makes sure that the water is not only clean, but also tastes good and doesn't corrode the pipes that carry it.

Why post-treatment is important in industry？

In factories, post-treatment is very important for making sure that process water meets standards. For example:

• For boiler feed, power plants need water that is very pure and has the right conductivity values.
• Semiconductor manufacture needs water that doesn't have certain ions in it that could mess up the process.
• Water used in making drugs must meet strict government regulations.
• Osmosis systems can provide water that is exactly what different industrial processes need by fine-tuning the quality of the water after it has been treated.

Monitoring and Control After Treatment

Advanced osmosis water purification systems have advanced monitoring and control systems in the post-treatment stage. These systems make sure that the water quality stays the same by:

• Constantly checking important things like pH, conductivity, and dissolved oxygen
• Automatically changing the amount of chemicals used to fix the pH and add minerals
• Giving real-time information on the quality of the water for process control and following the rules

This level of control is very significant in reverse osmosis plants that serve important sectors where the quality of the water directly affects the quality of the product or the efficiency of the process.

Frequently Asked Questions

1. How often should the pre-filters in an osmosis device be changed?

A: How often pre-filters need to be replaced relies on the quality of the feed water and how the system is used. Carbon filters can last for 6 to 12 months, while sediment filters may need to be replaced every 3 to 6 months. But keeping an eye on the pressure drop across the filters is the best way to tell when they need to be replaced.

2. Do osmosis filters get rid of all the bad things in water?

A: Osmosis screens work very well, but they can't get rid of all contaminants. Most of the time, they throw out 95–99% of the dissolved salts and organics. However, some small molecules may be able to get through, such as some pesticides or volatile organic chemicals. This is why good pre-treatment and post-treatment are so important for fully cleaning water.

3. What about post-treatment? Is it always needed in osmosis systems?

A: Post-treatment may or may not be needed depending on what the cleaned water will be used for. Post-treatment is needed to change the pH, add minerals, and make sure the water balance is right for many commercial uses and drinking water production. However, the RO permeate may be used straight without any other treatment in situations that need very pure water.

High-Efficiency Osmosis Water Purification Systems for Industrial Applications | Morui

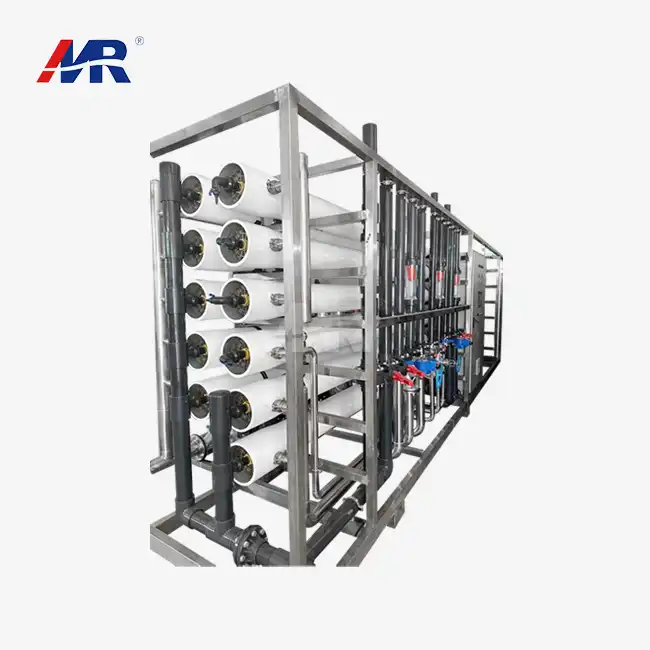

Are you in need of an osmosis water purification system for your business that is both reliable and efficient? Guangdong Morui Environmental Technology Co., Ltd. is the place to go. Our cutting-edge reverse osmosis facilities and BWRO systems are built to fulfill the different needs of different businesses when it comes to treating water.
