What is the Function of an Energy Recovery Device in RO Plants?

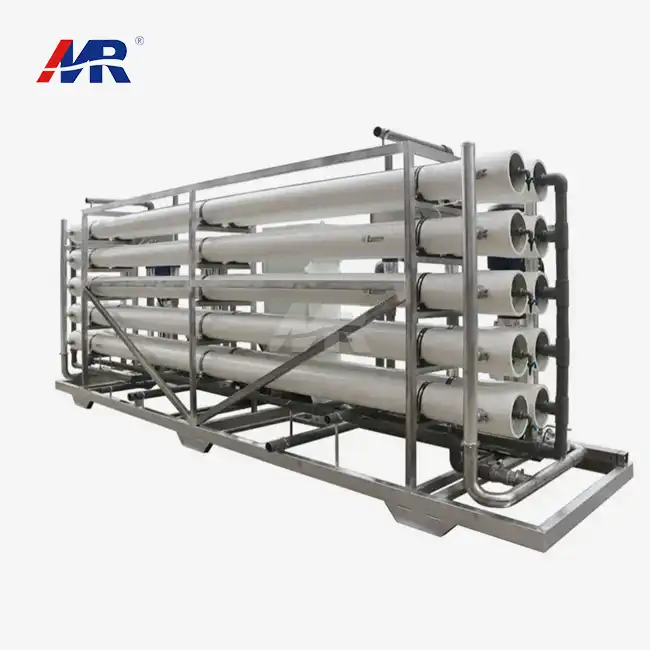

Energy Recovery Devices (ERDs) play a crucial role in modern reverse osmosis plant operations, significantly enhancing efficiency and reducing operational costs. In a reverse osmosis (RO) system, ERDs capture and repurpose the energy from the high-pressure brine stream, which would otherwise be wasted. This recovered energy is then utilized to pressurize the incoming feedwater, substantially decreasing the overall energy consumption of the RO process. By harnessing this otherwise discarded energy, ERDs can dramatically improve the economic viability and environmental sustainability of desalination and water treatment projects. The primary function of an ERD in an RO plant is to optimize energy usage, allowing for more cost-effective and eco-friendly water purification processes. This technology has become increasingly vital in large-scale desalination operations and industrial water treatment facilities, where energy costs constitute a significant portion of operational expenses.

How ERDs Reduce Energy Consumption by up to 60%？

Energy Recovery Devices have revolutionized the efficiency of reverse osmosis systems by significantly reducing the amount of energy required to operate these reverse osmosis plants. The impressive energy savings of up to 60% are achieved through a sophisticated process of energy transfer and utilization.

The Mechanics of Energy Recovery

In a traditional RO system without an ERD, the high-pressure brine reject stream carries substantial energy as it exits the membrane array. This energy would typically be lost, dissipated through a throttling valve. ERDs intervene in this process, capturing the hydraulic energy from the brine stream and transferring it to the incoming feedwater.

This energy transfer occurs with minimal losses, thanks to the advanced design of modern ERDs. By pressurizing the feedwater using recovered energy, the load on the high-pressure pump is significantly reduced. Consequently, the pump requires less electrical power to achieve the necessary operating pressure for the RO process.

Quantifying the Energy Savings

The extent of energy savings can be quite remarkable. In many cases, ERDs can recover up to 60% of the energy that would otherwise be lost in the RO process. This translates to a substantial reduction in the plant's overall energy consumption.

For instance, in a seawater RO plant without an ERD, energy consumption might typically be around 7-8 kWh per cubic meter of produced water. With an efficient ERD system in place, this can be reduced to as low as 2.5-3.5 kWh per cubic meter. This dramatic decrease in energy usage not only reduces operational costs but also minimizes the carbon footprint of the desalination process.

Factors Influencing ERD Efficiency

Several factors contribute to the efficiency of ERDs in reducing energy consumption:

• ERD Type: Different types of ERDs, such as pressure exchangers or turbines, have varying efficiency levels.
• System Design: The integration of the ERD into the overall RO system design can impact its effectiveness.
• Water Quality: The salinity and composition of the feedwater can affect the energy recovery potential.
• Plant Capacity: Larger plants often achieve higher energy recovery rates due to economies of scale.
• Maintenance: Proper maintenance and operation of ERDs ensure optimal performance and energy savings over time.

By leveraging these factors and implementing state-of-the-art ERD technology, modern RO plants can achieve unprecedented levels of energy efficiency, making water treatment and desalination more sustainable and economically viable than ever before.

Types of Energy Recovery Devices: PX Pressure Exchanger vs. Turbines

In the realm of reverse osmosis technology, two primary types of Energy Recovery Devices have emerged as frontrunners: Pressure Exchangers (PX) and Turbines. Each of these ERDs offers unique advantages and operates on different principles to recover energy in RO systems.

Pressure Exchangers (PX)

Pressure Exchangers, particularly the PX type, represent the cutting edge of ERD technology. These devices work on a direct pressure exchange principle, transferring pressure from the brine stream to the incoming feedwater with minimal energy loss.

Key features of PX systems include:

• High Efficiency: PX devices can achieve energy transfer efficiencies of up to 98%, significantly outperforming other ERD types.
• Isobaric Operation: The pressure exchange occurs at constant pressure, minimizing energy losses associated with pressure changes.
• Durability: PX devices have few moving parts, resulting in low maintenance requirements and long operational lifespans.
• Scalability: These systems can be easily scaled to accommodate various plant sizes, from small to large-scale operations.
• Low Mixing: Advanced designs minimize the mixing between the brine and feedwater streams, maintaining high water quality.

Turbine-Based ERDs

Turbine-based ERDs, including Pelton wheels and turbochargers, have been used in RO plants for many years. These devices convert the hydraulic energy of the brine stream into mechanical energy, which is then used to assist in pressurizing the feedwater.

Characteristics of turbine-based ERDs include:

• Proven Technology: With a long history in RO applications, turbines are a well-understood and reliable option.
• Lower Initial Cost: Generally, turbine systems have a lower upfront cost compared to PX devices.
• Flexibility: Turbines can handle varying flow rates and pressures, making them suitable for plants with fluctuating operating conditions.
• Energy Conversion: The process of converting hydraulic to mechanical energy introduces some efficiency losses.
• Maintenance: Turbines typically require more maintenance due to their rotating components.

Comparative Analysis

When comparing PX and turbine-based ERDs, several factors come into play:

• Efficiency: PX devices generally offer higher energy recovery efficiency, particularly in high-pressure applications like seawater desalination.
• Operating Costs: The superior efficiency of PX systems often translates to lower long-term operating costs.
• Plant Size: PX devices are particularly advantageous in large-scale plants, while turbines may be more cost-effective for smaller operations.
• Water Quality: PX systems typically result in less mixing between brine and feedwater, potentially yielding higher quality product water.
• System Complexity: Turbine systems may require more complex integration into the reverse osmosis plant's hydraulic circuit.

The choice between PX and turbine-based ERDs depends on various factors, including plant size, budget, energy costs, and specific operational requirements. Many modern large-scale RO plants opt for PX technology due to its superior efficiency and lower operational costs, while some smaller or specialized applications may still find turbine-based systems more suitable.

The Economic Impact of ERDs on Large-Scale Desalination

The integration of Energy Recovery Devices in large-scale desalination plants has had a transformative economic impact on the industry. By significantly reducing energy consumption, ERDs have made desalination more cost-effective and environmentally sustainable, particularly in regions facing severe water scarcity.

Reduction in Operational Costs

The most immediate and tangible economic benefit of ERDs in large-scale desalination is the substantial reduction in operational costs. Energy typically accounts for 30-50% of the total cost of water production in a reverse osmosis plant. By reducing energy consumption by up to 60%, ERDs can dramatically lower this major expense.

For example, a large-scale desalination plant producing 100,000 m³/day of fresh water might see its energy costs reduced from $0.50 per cubic meter to as low as $0.30 per cubic meter with the implementation of advanced ERD technology. This translates to potential savings of millions of dollars annually for a single plant.

Improved Plant Economics and Viability

The economic benefits of ERDs extend beyond mere cost savings:

• Lower Water Production Costs: The reduced energy consumption directly translates to lower overall water production costs, making desalinated water more competitive with other water sources.
• Increased Plant Profitability: With lower operational costs, desalination plants can achieve higher profit margins or pass savings on to consumers, improving affordability.
• Extended Plant Lifespan: By reducing the load on high-pressure pumps, ERDs can extend the operational life of key equipment, deferring capital replacement costs.
• Expansion Opportunities: The improved economics may allow for plant expansions or the construction of new facilities in regions previously considered economically unfeasible for desalination.

Environmental and Societal Benefits

The economic impact of ERDs also has broader environmental and societal implications:

• Reduced Carbon Footprint: Lower energy consumption means reduced greenhouse gas emissions, aligning desalination more closely with global sustainability goals.
• Increased Water Security: More economical desalination can enhance water security in water-scarce regions, supporting economic development and improving quality of life.
• Job Creation: The growth of the desalination industry, partly due to improved economics, can lead to job creation in construction, operation, and maintenance of plants.
• Technological Innovation: The success of ERDs has spurred further research and development in water treatment technologies, potentially leading to additional breakthroughs.

Case Studies and Real-World Impact

Numerous large-scale desalination projects worldwide have demonstrated the significant economic benefits of ERD implementation:

• In the Middle East, where large-scale desalination is crucial for water supply, ERDs have helped reduce the cost of desalinated water by up to 30% in some plants.
• Australia's Gold Coast Desalination Plant reported energy savings of approximately 55% after implementing advanced ERD technology, significantly improving its operational economics.
• In California, the Carlsbad Desalination Plant utilizes ERDs to produce up to 50 million gallons of water per day at a competitive cost, helping to alleviate regional water scarcity.

These examples underscore the transformative economic impact of ERDs on large-scale desalination, making it an increasingly viable and sustainable solution to global water challenges.

Conclusion

Energy Recovery Devices have revolutionized the economics and sustainability of reverse osmosis desalination. By significantly reducing energy consumption, ERDs have made large-scale desalination more economically viable and environmentally friendly. As water scarcity continues to be a global challenge, the role of ERDs in making desalination a cost-effective and sustainable water source cannot be overstated.

Are you looking to optimize your reverse osmosis plant or implement cutting-edge desalination technology? Guangdong Morui Environmental Technology Co., Ltd. is your trusted partner in water treatment solutions. Our state-of-the-art RO systems, complete with advanced Energy Recovery Devices, are designed to meet the diverse needs of industries ranging from manufacturing to municipal water treatment. With our expertise in industrial wastewater treatment, seawater desalination, and drinking water production, we offer comprehensive solutions tailored to your specific requirements.

Don't let high energy costs or inefficient water treatment hold your business back. Contact us today at benson@guangdongmorui.com to learn how our innovative RO plants can help you achieve superior water quality while significantly reducing operational costs. Let Guangdong Morui be your guide to a more efficient and sustainable water future.

References

1. Elimelech, M., & Phillip, W. A. (2011). The future of seawater desalination: Energy, technology, and the environment. Science, 333(6043), 712-717.

2. Voutchkov, N. (2018). Energy use for membrane seawater desalination – current status and trends. Desalination, 431, 2-14.

3. Bartman, A. R., Christofides, P. D., & Cohen, Y. (2010). Nonlinear model-based control of an experimental reverse-osmosis water desalination system. Industrial & Engineering Chemistry Research, 49(5), 2323-2332.

4. Ghaffour, N., Missimer, T. M., & Amy, G. L. (2013). Technical review and evaluation of the economics of water desalination: Current and future challenges for better water supply sustainability. Desalination, 309, 197-207.

5. Stover, R. L. (2007). Seawater reverse osmosis with isobaric energy recovery devices. Desalination, 203(1-3), 168-175.

6. Peñate, B., & García-Rodríguez, L. (2012). Current trends and future prospects in the design of seawater reverse osmosis desalination technology. Desalination, 284, 1-8.
