From High-Pressure Pump to Membrane Vessels: A Layout Guide

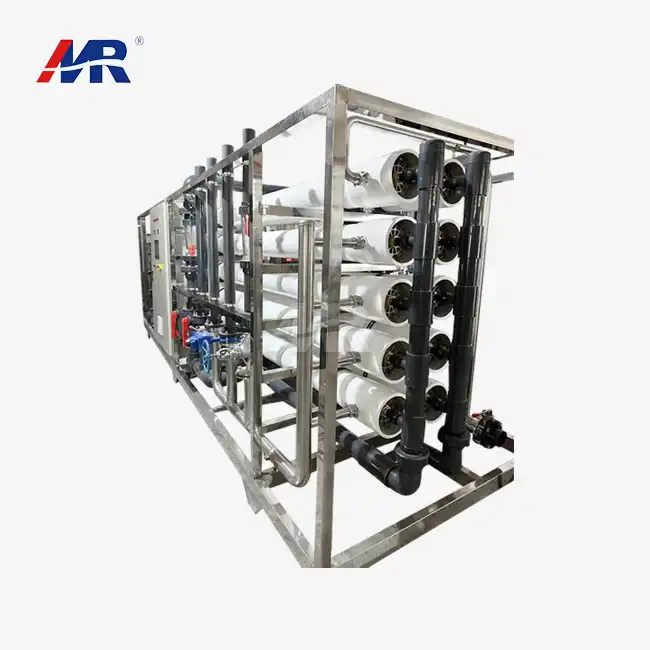

The layout of a reverse osmosis skid is carefully designed to optimize the flow of water through the system while ensuring easy access for maintenance and monitoring. At the core of this layout are two critical components: the high-pressure pump and the membrane vessels.
High-Pressure Pump: The Heart of the System
The high-pressure pump is often considered the heart of the reverse osmosis system. Its primary function is to generate the necessary pressure to overcome osmotic pressure and force water through the semipermeable membranes. In modern reverse osmosis plants, energy recovery devices are often integrated with the high-pressure pump to enhance energy efficiency.
Membrane Vessels: Where the Magic Happens
Membrane vessels house the reverse osmosis membranes, which are the workhorses of the filtration process. These vessels are typically arranged in a series or parallel configuration, depending on the system's design and capacity requirements. The number and arrangement of membrane vessels can significantly impact the system's overall performance and recovery rate.
Spatial Considerations and Accessibility
When designing the layout of an RO skid, engineers must consider spatial efficiency while ensuring easy access for maintenance and replacement of components. This often results in a compact yet functional arrangement that maximizes the use of available space without compromising on operability.
The Function of Valves, Piping, and Instrumentation on an RO Skid
While the high-pressure pump and membrane vessels are the primary components, the supporting infrastructure of valves, piping, and instrumentation is equally crucial for the proper functioning of a reverse osmosis plant.
Valves: Control and Safety
Various types of valves are strategically placed throughout the RO skid to control flow rates, pressure, and to enable isolation of different sections for maintenance or emergencies. Common valve types include:
- Butterfly valves for flow control
- Check valves to prevent backflow
- Pressure relief valves for safety
- Sampling valves for water quality monitoring
Piping: The Circulatory System
The piping network on an RO skid serves as the circulatory system, connecting all components and guiding the water through various stages of treatment. High-quality, corrosion-resistant materials such as stainless steel or PVC are typically used to ensure longevity and maintain water purity.
Instrumentation: Eyes and Ears of the System
Instrumentation plays a critical role in monitoring and controlling the RO process. Key instruments include:
- Pressure gauges and transmitters
- Flow meters
- Conductivity sensors
- pH meters
- Temperature sensors
These instruments provide real-time data on system performance, allowing operators to make informed decisions and adjustments to optimize the purification process.
Importance of Control Panel and PLC for Automated Operation
In modern reverse osmosis plants, automation plays a crucial role in ensuring consistent performance, optimizing energy consumption, and minimizing human error. The control panel and programmable logic controller (PLC) are at the forefront of this automation.
Control Panel: The Command Center
The control panel serves as the interface between the operator and the RO system. It typically features:
- Human-Machine Interface (HMI) display
- Emergency stop buttons
- Status indicators
- Manual override controls
Through the control panel, operators can monitor system parameters, adjust settings, and respond to alarms or anomalies in real-time.
Programmable Logic Controller (PLC): The Brain of the Operation
The PLC is the central processing unit of the RO skid, responsible for executing pre-programmed logic to control various aspects of the system. Key functions of the PLC include:
- Automated start-up and shutdown sequences
- Continuous monitoring and adjustment of operating parameters
- Fault detection and alarm management
- Data logging for performance analysis and reporting
Advanced PLCs can also integrate with SCADA systems, enabling remote monitoring and control of the reverse osmosis plant.
Benefits of Automated Operation
The integration of a robust control system offers numerous benefits:
- Improved consistency in water quality
- Enhanced energy efficiency through optimized operation
- Reduced downtime through predictive maintenance
- Minimized human error in system operation
- Comprehensive data collection for performance analysis and regulatory compliance
As water treatment technologies continue to evolve, the role of automation in reverse osmosis systems becomes increasingly significant, driving improvements in efficiency, reliability, and overall performance.
Conclusion
Understanding the essential components of a reverse osmosis skid is crucial for anyone involved in water treatment projects or operations. From the high-pressure pump that drives the process to the sophisticated control systems that ensure optimal performance, each element plays a vital role in producing high-quality purified water.
