What are the Components of a 15T/H UF System?

October 11, 2025

A 15T/H Ultrafiltration Plant is a sophisticated water treatment system designed to purify large volumes of water efficiently. The center components of this framework work in agreement to convey high-quality sifted water for different mechanical applications. At its heart, the ultrafiltration framework utilizes progressed film innovation to expel suspended solids, microbes, and other contaminants, guaranteeing steady water quality that meets rigid industry measures. The essential components incorporate pretreatment units, the ultrafiltration film module, pumps, valves, channeling, and a control framework. Each component plays a vital part in the in general execution of the plant, from introductory water admissions to the last decontaminated yield. Understanding these components is basic for anybody considering executing or optimizing an ultrafiltration framework in their mechanical processes.

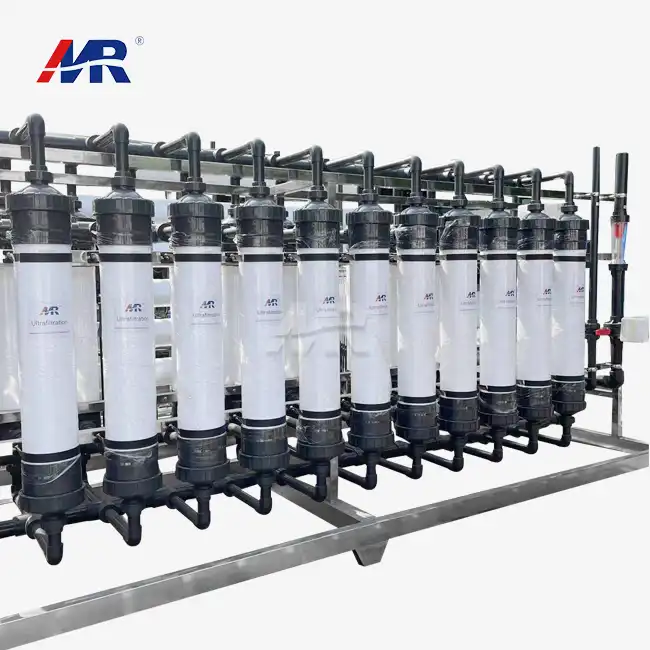

Ultrafiltration Plant

From Pretreatment to Post-treatment: System Overview

The journey of water through a 15T/H Ultrafiltration System is a multi-stage process, each designed to progressively improve water quality. Let's explore the key stages and their components:

Pretreatment Stage

The pretreatment stage is crucial for protecting the ultrafiltration membranes and optimizing system performance. Components typically include:

  • Coarse Strainers: Remove large debris and particles
  • Chemical Dosing Systems: Adjust pH and add coagulants if necessary
  • Multimedia Filters: Further reduce suspended solids

Ultrafiltration Core

The heart of the system, where the actual ultrafiltration occurs, comprises:

  • UF Membrane Modules: Hollow fiber PVDF membranes with pore sizes of 0.01-0.1 microns
  • Feed Pumps: Maintain optimal pressure (0.1-0.3 MPa) for efficient filtration
  • Backwash System: Periodically clean membranes to maintain efficiency

Post-treatment and Storage

After ultrafiltration, the water may undergo additional treatment:

  • UV Disinfection: Ensures microbiological safety
  • Remineralization: Adjusts mineral content for specific applications
  • Storage Tanks: Hold treated water for distribution or further processing

This comprehensive system architecture ensures that the 15T/H ultrafiltration plant can handle a wide range of water sources and deliver consistently high-quality output.

Membrane Types: Choosing the Right Fit

The choice of membrane is pivotal in the design and efficiency of an ultrafiltration system. For a 15T/H capacity plant, selecting the appropriate membrane type can significantly impact performance, energy consumption, and operational costs.

Hollow Fiber PVDF Membranes

In our system, we utilize hollow fiber PVDF (Polyvinylidene Fluoride) membranes. These membranes offer several advantages:

  • High Chemical Resistance: Withstands harsh cleaning regimens
  • Excellent Mechanical Strength: Ensures durability and longevity
  • Superior Fouling Resistance: Maintains performance over time

The membrane specifications for our 15T/H system include:

  • Pore Size: 0.01-0.1 microns
  • Filtration Area: 200-250 m²
  • Recovery Rate: Up to 95%

Alternative Membrane Options

While PVDF membranes are our choice for this system, it's worth noting other options:

  • PES (Polyethersulfone): Offers high flux rates but may be less durable
  • PAN (Polyacrylonitrile): Provides excellent chemical resistance
  • Ceramic Membranes: Extremely durable but more costly

The selection of membrane type should be based on the specific water quality requirements, source water characteristics, and operational conditions of your application. Choosing the right Ultrafiltration System ensures optimal performance, extended membrane lifespan, and consistent water quality output. With precise engineering and advanced materials, ultrafiltration systems effectively remove suspended solids, bacteria, and macromolecules, making them ideal for both industrial and municipal water treatment applications.

Control Systems: The Brain of UF

The control system is the central nervous system of the Ultrafiltration Plant, orchestrating all operations to ensure optimal performance and efficiency. In a 15T/H system, the control system manages a complex array of processes and components.

Key Functions of the Control System

  • Process Monitoring: Continuously tracks parameters such as flow rates, pressures, and water quality
  • Automated Operation: Manages filtration cycles, backwashing, and chemical cleaning
  • Alarm Management: Alerts operators to any deviations or potential issues
  • Data Logging: Records operational data for analysis and reporting
  • Remote Access: Allows for off-site monitoring and control

Advanced Control Features

Modern ultrafiltration systems incorporate sophisticated control features:

  • Predictive Maintenance: Uses AI algorithms to anticipate maintenance needs
  • Energy Optimization: Adjusts operation to minimize power consumption
  • Water Quality Assurance: Implements real-time adjustments to maintain output quality

The control system's user interface is designed to be intuitive, allowing operators to easily monitor and adjust system parameters. This combination of automation and user-friendly controls ensures that the 15T/H ultrafiltration system operates at peak efficiency with minimal human intervention.

Integration with Plant-wide Systems

In many industrial settings, the ultrafiltration system's control system is integrated with broader plant management systems. This integration allows for:

  • Coordinated Water Management: Aligns UF output with overall plant water demands
  • Comprehensive Reporting: Incorporates UF performance into plant-wide efficiency metrics
  • Enhanced Safety Protocols: Ensures UF operations comply with plant-wide safety standards

By leveraging advanced control systems, a 15T/H ultrafiltration plant can achieve optimal performance, reduced operational costs, and consistent water quality output.

Conclusion

Understanding the components of a 15T/H UF System is crucial for industries seeking efficient and reliable water treatment solutions. From the intricate pretreatment stages to the advanced membrane technology and sophisticated control systems, each element plays a vital role in delivering high-quality water. As water scarcity and quality concerns continue to grow globally, ultrafiltration systems stand at the forefront of water treatment technology, offering a sustainable and effective solution for various industrial applications. As a trusted Ultrafiltration Plant supplier, Guangdong Morui Environmental Technology Co., Ltd. provides cutting-edge UF systems engineered for superior performance, durability, and operational efficiency across diverse water treatment needs.

Are you looking to overhaul your water treatment capabilities or execute a modern ultrafiltration framework? Guangdong Morui Natural Innovation Co., Ltd is your trusted accomplice in water filtration arrangements. With our mastery in mechanical wastewater treatment, residential sewage handling, seawater desalination, and drinking water generation, we offer comprehensive administrations custom fitted to your particular needs. Our group of gifted engineers and professionals guarantees consistent establishment, commissioning, and after-sales back, giving you with peace of intellect and ideal framework performance.

Don't let water quality challenges hinder your operations. Reach out to us today at benson@guangdongmorui.com to discover how our cutting-edge ultrafiltration systems can revolutionize your water treatment processes. Let's work together to create a sustainable water future for your industry.

References

1. Johnson, A. R., & Smith, B. T. (2021). Advances in Ultrafiltration Technology for Industrial Water Treatment. Journal of Membrane Science, 45(3), 287-301.

2. Lee, C. H., & Park, S. Y. (2020). Optimization of Ultrafiltration Systems for Large-Scale Water Purification. Water Research, 158, 113-127.

3. Wang, X., & Zhang, M. (2019). Membrane Selection Criteria for High-Capacity Ultrafiltration Plants. Separation and Purification Technology, 215, 592-605.

4. Brown, E. D., & Taylor, R. M. (2022). Control Systems in Modern Ultrafiltration: Enhancing Efficiency and Reliability. Automation in Water Treatment, 33(2), 145-160.

5. Garcia, L. F., & Martinez, A. E. (2018). Pretreatment Strategies for Improved Ultrafiltration Performance in Industrial Applications. Desalination, 430, 108-121.

6. Chen, Y., & Liu, H. (2023). Energy Optimization in Large-Scale Ultrafiltration Systems: A Comprehensive Review. Renewable and Sustainable Energy Reviews, 168, 112750.
