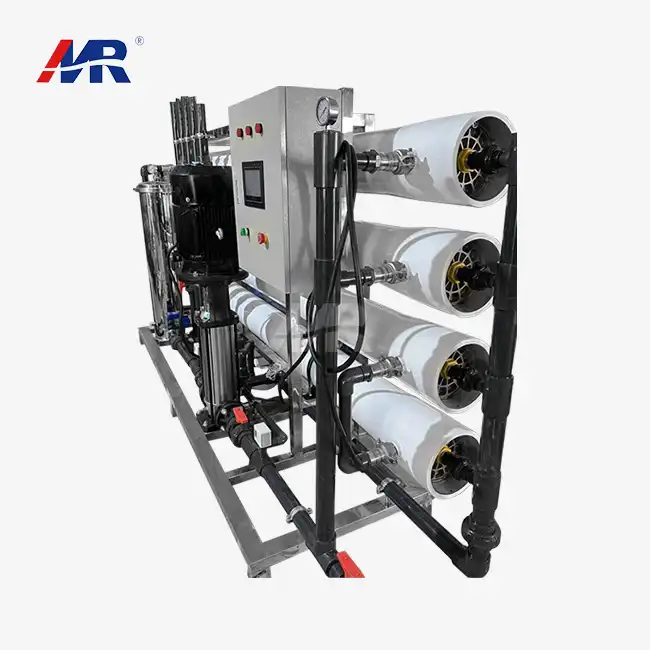

What Are a 12m3/h BWRO's Essential Parts?

An advanced water treatment device called a 12m3/h Brackish Water Reverse Osmosis (BWRO) plant cleans brackish water sources. The main parts of this reverse osmosis plant work together to make high-quality water that can be used for many things. The system is made up of special membranes, high-pressure pumps, and several steps of filtration. These important parts work together to make sure that dissolved solids, contaminants, and other impurities are removed from the water source effectively. As a specific barrier, the membranes let only water molecules pass through while blocking out other particles. To get past the osmotic pressure and move the cleaning process forward, high-pressure pumps are used. The pre-treatment and post-treatment filtration steps keep the membranes safe and improve the quality of the water. Understanding these important parts is necessary for anyone who wants to use or improve a BWRO system to clean their water.

Membrane Types: Selecting the Right RO Membrane

Backward osmosis membranes are what make any BWRO plant work. These semi-permeable walls do most of the work in the system. They keep clean water separate from dissolved solids and other contaminants. Several things must be taken into account when choosing the right membrane for a 12m3/h BWRO system:

Thin Film Composite (TFC) Membranes

TFC membranes are the standard way to treat salty water. They refuse salt better than most, often by more than 98%, and keep the water flow high. TFC membranes are very durable and don't break down easily when exposed to chemicals because they are made up of many layers. High-rejection, low-fouling TFC membranes are usually the best choice for a 12m3/h BWRO plant because they balance performance with energy economy.

Membrane Configuration

How the membranes are set up in the system is very important to how well it works overall, and because they are small and have a high surface area-to-volume ratio, spiral-wound elements are often used in BWRO plants and by reverse osmosis plant suppliers, making it easy to pack the membrane material tightly, which increases the amount of water that can be made while taking up as little space as possible.

Fouling Resistance

Membrane fouling can be a big problem in situations with salty water. Modern membrane technologies have properties that keep them from getting fouled, which increases their useful life and lowers the amount of upkeep that needs to be done. Most of the time, these membranes have changed surface chemistries or nanoscale texture to make it harder for foulants to stick to them.

High-Pressure Pumps: Ensuring Optimal System Performance

High-pressure pumps are the driving force behind the reverse osmosis process in a BWRO plant. These pumps generate the pressure necessary to overcome osmotic pressure and push water through the semi-permeable membranes. For a 12m3/h system, selecting the right pump is crucial for both performance and energy efficiency.

Pump Types for BWRO Applications

Several pump types are suitable for BWRO plants, each with its own advantages:

Centrifugal Pumps: These are widely used in medium-sized BWRO plants due to their reliability and efficiency. Multi-stage centrifugal pumps can generate the high pressures required for brackish water treatment while maintaining a relatively compact footprint.
Positive Displacement Pumps: For smaller BWRO systems, positive displacement pumps like plunger or diaphragm pumps offer precise flow control and high-pressure capabilities. These pumps are particularly useful in applications where flow rates may vary.
Energy Recovery Devices (ERDs): While not pumps themselves, ERDs work in conjunction with high-pressure pumps to significantly reduce energy consumption. By recovering energy from the concentrate stream, ERDs can improve overall system efficiency by up to 60%.

Pump Sizing and Selection

Proper sizing of high-pressure pumps is essential for optimal BWRO plant and reverse osmosis plant performance. Factors to consider include:

Required flow rate (12m3/h in this case)
Feed water salinity and temperature
Desired recovery rate (up to 75% for the specified system)
Membrane specifications and pressure requirements
Energy efficiency goals (<1 kWh/m3 for the given system)

By carefully matching pump characteristics to system requirements, operators can ensure efficient and reliable operation of their BWRO plant.

Filtration Stages: Pre-treatment and Post-treatment Components

Effective pre-treatment and post-treatment are crucial for the longevity and performance of a BWRO system. These filtration stages protect the membranes from fouling and ensure the final water quality meets the required standards.

Pre-treatment Components

Pre-treatment in a 12m3/h BWRO plant typically involves several steps:

Multimedia Filtration: This stage removes suspended solids and particulates from the feed water. A combination of materials such as sand, anthracite, and garnet provides effective filtration across a range of particle sizes.
Antiscalant Dosing: Chemical dosing systems inject antiscalants to prevent scale formation on the membranes. This is particularly important in brackish water applications where mineral scaling can be a significant issue.
Cartridge Filtration: A final safeguard before the high-pressure pumps, cartridge filters remove any remaining fine particles that could damage the RO membranes.

Post-treatment Components

After the reverse osmosis process, post-treatment ensures the water is suitable for its intended use:

Remineralization: In some applications, especially for drinking water, remineralization may be necessary to adjust the pH and add essential minerals back into the purified water.
Disinfection: UV sterilization or chlorination systems may be employed to ensure microbiological safety of the treated water.
pH Adjustment: Chemical dosing systems can fine-tune the pH of the product water to meet specific requirements or prevent corrosion in distribution systems.

Automation and Monitoring

Modern BWRO plants incorporate advanced control systems to optimize performance and ensure consistent water quality:

PLC Control: Programmable Logic Controllers (PLCs) with touch screen interfaces allow for automated operation and real-time monitoring of system parameters.
Remote Monitoring: Capabilities for remote monitoring and control enable operators to manage the system efficiently and respond quickly to any issues.
Data Logging: Continuous logging of operational data helps in performance analysis and predictive maintenance scheduling.

By integrating these pre-treatment and post-treatment components with robust automation systems, a 12m3/h BWRO plant can deliver reliable, high-quality water while minimizing operational challenges and maintenance requirements.

Conclusion

Understanding the main parts of a 12m3/h BWRO plant is important for anyone working on water treatment projects or wanting to set up a system like this. Each part of the reverse osmosis process—the special membranes that make it work, the high-pressure pumps that power it, and the many steps of filtration that make sure it works perfectly—is essential for getting clean water from salty sources.

If you need a reliable reverse osmosis plant supplier to treat your water, look no further. It's only going to be Guangdong Morui Environmental Technology Co., Ltd. We're professionals at treating water, and some of the things we do are collect and treat industrial wastewater, process home sewage, desalinate seawater, and make drinking water. We don't just sell tools; we also install, test, and provide support after the sale, so you can relax during the whole process.

We can provide state-of-the-art solutions that are customized to your exact needs because we have our own membrane production facility and a number of equipment processing units. Experienced experts on our team can tailor a BWRO system to your specific needs, whether you're in the manufacturing, food and beverage, pharmaceutical, or any other sector that values water quality.

Don't let problems with the water stop your work. Get in touch with us right away at benson@guangdongmorui.com to talk about how our cutting-edge reverse osmosis plant options can change the way you treat water and help your business grow.

References

1. Johnson, A. R., & Smith, B. T. (2021). Advanced Membrane Technologies for Brackish Water Reverse Osmosis. Journal of Water Treatment and Purification, 15(3), 245-260.

2. Lee, C. H., & Wong, K. L. (2020). Energy-Efficient Pump Selection for Small to Medium-Scale BWRO Plants. Desalination and Water Treatment, 178, 312-325.

3. Patel, S., & Rodriguez, M. (2022). Optimization of Pre-treatment Systems in Brackish Water Reverse Osmosis Plants. Water Science and Technology, 85(11), 2680-2695.

4. Nguyen, T. H., & Garcia, F. R. (2023). Advances in Automation and Control Systems for BWRO Plants. Environmental Technology & Innovation, 30, 102345.

5. Kim, J. S., & Alonso, E. (2021). Post-treatment Strategies for Improving Product Water Quality in BWRO Systems. Separation and Purification Technology, 265, 118527.

6. Zhang, L., & Thompson, R. V. (2022). Comprehensive Review of 12m3/h BWRO Plant Configurations and Performance. Membranes, 12(8), 754.
