Advanced Filtration: Micro and Ultrafiltration Explained
The cornerstone of MBR technology lies in its advanced filtration capabilities, which combine micro and ultrafiltration processes to achieve superior water quality. These filtration methods are fundamental to the system's ability to produce high-grade effluent suitable for various reuse applications.
Microfiltration: The First Line of Defense
Microfiltration serves as the initial barrier in the Membrane Bioreactor (MBR) process, effectively removing larger particles and microorganisms. With pore sizes typically ranging from 0.1 to 10 microns, microfiltration membranes can capture suspended solids, bacteria, and some larger viruses. This stage significantly reduces the turbidity of the water, preparing it for the more refined ultrafiltration process.
Ultrafiltration: Achieving Molecular-Level Separation
Ultrafiltration takes filtration to the next level, employing membranes with even smaller pore sizes, usually between 0.01 and 0.1 microns. This allows for the removal of smaller particles, including most viruses, macromolecules, and colloidal materials. The ultrafiltration stage in MBR systems is crucial for achieving the high-quality effluent that sets this technology apart from conventional treatment methods.
The synergy between micro and ultrafiltration in MBR systems results in several key benefits:
- Enhanced pathogen removal, ensuring safer water output
- Significant reduction in turbidity and suspended solids
- Removal of many dissolved organic compounds
- Consistent water quality, regardless of influent variations
By leveraging these advanced filtration techniques, MBR systems can handle a wide range of contaminants, making them versatile solutions for diverse water treatment needs across industries.
Compact Design: Space-Saving Benefits Revealed
One of the most significant advantages of MBR systems is their compact design, which offers substantial space-saving benefits compared to conventional wastewater treatment plants. This feature makes MBR technology particularly attractive for applications where space is at a premium, such as urban areas or facilities with limited expansion possibilities.
Integrated Biological Treatment and Membrane Filtration

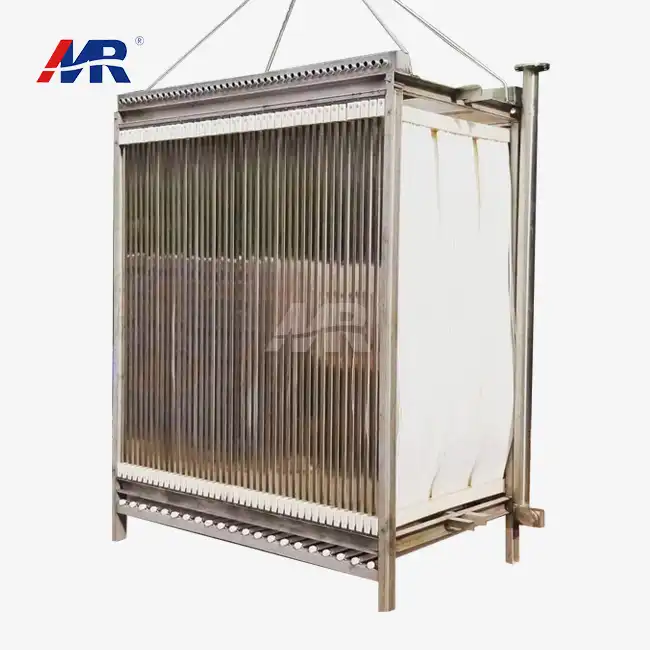

The key to the MBR Membrane Module's compact design lies in its integration of biological treatment and membrane filtration within a single unit. This consolidation eliminates the need for separate secondary clarifiers and tertiary filtration stages, which are typically required in conventional activated sludge systems. By combining these processes, MBR systems can achieve:
- Up to 50% reduction in overall footprint compared to conventional systems
- Higher biomass concentrations, allowing for more efficient treatment in smaller volumes
- Elimination of secondary clarifiers, reducing land requirements
- Potential for modular expansion, facilitating future capacity increases without major construction
Vertical Integration and Efficient Use of Space
MBR systems often utilize vertical integration, stacking components to further minimize their horizontal footprint. This vertical design allows for:
- Efficient use of available height in treatment facilities
- Reduced piping and pumping requirements
- Easier access for maintenance and monitoring
The compact nature of MBR systems not only saves space but also offers additional benefits such as reduced civil engineering costs, lower energy consumption for pumping, and easier retrofitting of existing plants. These space-saving characteristics make MBR technology an ideal solution for upgrading and expanding wastewater treatment capabilities in constrained environments.
High-Quality Effluent: Meeting Stringent Standards
The production of high-quality effluent is perhaps the most compelling feature of MBR systems, setting them apart in the realm of wastewater treatment. This superior output quality is crucial for meeting increasingly stringent environmental regulations and enabling water reuse applications.
Exceptional Contaminant Removal
MBR technology excels in removing a wide range of contaminants, including:
- Suspended solids: Nearly complete removal, with effluent turbidity often below 1 NTU
- Organic compounds: High removal rates for BOD and COD, often exceeding 95%
- Nutrients: Enhanced nitrogen and phosphorus removal through biological processes
- Pathogens: Significant reduction in bacteria and viruses, often achieving 4-6 log removal
This level of treatment results in effluent quality that frequently surpasses that of conventional secondary treatment followed by tertiary filtration.
Consistent Performance Under Varying Conditions
MBR systems demonstrate remarkable stability in effluent quality, even when faced with fluctuating influent characteristics or flow rates. This consistency is attributed to:
- The physical barrier provided by the membrane, which ensures consistent solids separation
- Higher biomass concentrations, allowing for more robust biological treatment
- Longer sludge retention times, promoting the growth of specialized microorganisms
The ability to maintain high-quality effluent under diverse conditions makes the MBR Membrane technology particularly valuable for industries with variable wastewater streams or facilities requiring reliable performance year-round.
Enabling Water Reuse and Resource Recovery
The superior effluent quality produced by MBR systems opens up numerous possibilities for water reuse, including:
- Industrial process water
- Irrigation for agriculture and landscaping
- Groundwater recharge
- Urban non-potable applications (e.g., toilet flushing, street cleaning)
Furthermore, the high-quality effluent facilitates resource recovery initiatives, such as nutrient extraction for fertilizer production or the generation of biogas from waste sludge. These capabilities align with circular economy principles and contribute to sustainable water management practices.
Conclusion
Membrane Bioreactor innovation speaks to a critical jump forward in wastewater treatment, advertising a effective combination of progressed filtration, compact plan, and high-quality emanating generation. The key highlights of MBR systems—including miniaturized scale and ultrafiltration capabilities, space-saving benefits, and the capacity to meet rigid water quality standards—make them an perfect arrangement for a wide extend of applications over different industries.
As water shortage and natural directions gotten to be progressively squeezing concerns, the appropriation of MBR innovation is likely to quicken. Its capacity to create reliably high-quality gushing whereas possessing a littler impression than customary frameworks positions it as a significant apparatus in tending to worldwide water challenges.
For businesses and regions looking to update their wastewater treatment capabilities, MBR frameworks offer a future-proof arrangement that combines effectiveness, unwavering quality, and maintainability. By contributing in this progressed innovation, organizations can not as it were meet current administrative prerequisites but too plan for future water reuse openings and asset recuperation initiatives.
Are you ready to revolutionize your wastewater treatment process? Guangdong Morui Environmental Technology Co., Ltd. is here to help. As a leading specialist in water treatment solutions, we offer cutting-edge MBR systems tailored to your specific needs. Whether you're in the manufacturing, food and beverage, pharmaceutical, or municipal sector, our expert team can design and implement a state-of-the-art MBR solution that maximizes efficiency and meets the most stringent environmental standards.
FAQ
1. What is the typical lifespan of an MBR membrane?
The lifespan of an MBR membrane can vary depending on operating conditions and maintenance practices, but typically ranges from 5 to 10 years. Proper care and regular cleaning can significantly extend membrane life.
2. How does the energy consumption of MBR systems compare to conventional treatment methods?
While MBR systems generally have higher energy requirements due to membrane aeration, their overall efficiency in producing high-quality effluent often results in lower total lifecycle costs. Additionally, ongoing technological improvements are continuously reducing energy demands.
3. Can MBR systems handle variations in influent quality?
Yes, MBR systems are known for their robustness in handling fluctuations in influent quality. The combination of biological treatment and membrane filtration provides a buffer against variations, maintaining consistent effluent quality.
4. What are the main maintenance requirements for MBR systems?
Key maintenance tasks include regular membrane cleaning, monitoring of operating parameters, and occasional membrane replacement. Automated cleaning processes and advanced monitoring systems have significantly reduced the manual labor required for MBR maintenance.
Top MBR Membrane Suppliers and Manufacturers | Morui
Looking for reliable MBR membrane solutions? Look no further than Guangdong Morui Environmental Technology Co., Ltd. As a leading manufacturer and supplier of MBR membranes, we offer top-quality products backed by years of expertise in water treatment technology. Our state-of-the-art manufacturing facilities and rigorous quality control ensure that you receive MBR membranes that meet the highest industry standards.
Whether you need MBR membranes for municipal wastewater treatment, industrial applications, or specialized projects, our team is ready to assist you. We offer customized solutions to meet your specific requirements, along with comprehensive support from initial consultation to after-sales service.
To learn more about our MBR membrane products or to request a quote, please contact us at benson@guangdongmorui.com. Our expert team is standing by to help you find the perfect MBR solution for your needs. Choose Morui for quality, reliability, and innovation in membrane technology.
References
1. Judd, S. (2016). "The MBR Book: Principles and Applications of Membrane Bioreactors for Water and Wastewater Treatment." Butterworth-Heinemann.
2. Meng, F., et al. (2017). "Recent advances in membrane bioreactors (MBRs): Membrane fouling and membrane material." Water Research, 128, 255-269.
3. Krzeminski, P., et al. (2017). "Membrane bioreactors – A review on recent developments in energy reduction, fouling control, novel configurations, LCA and market prospects." Journal of Membrane Science, 527, 207-227.
4. Drews, A. (2010). "Membrane fouling in membrane bioreactors—Characterisation, contradictions, cause and cures." Journal of Membrane Science, 363(1-2), 1-28.
5. Le-Clech, P., et al. (2006). "Filtration characteristics of membrane bioreactors and influence of operational parameters." Environmental Progress, 25(3), 243-251.
6. Liao, B.Q., et al. (2006). "A review of biofouling and its control in membrane separation bioreactors." Water Environment Research, 78(7), 711-723.
