Biological Treatment: Microorganisms in Action
The natural treatment stage in an MBR framework is where the enchantment of microbial corruption happens. This handle saddles the control of actually happening microorganisms to break down natural poisons in wastewater. Not at all like routine actuated slime frameworks, MBRs keep up a higher concentration of blended alcohol suspended solids (MLSS), ordinarily extending from 8,000 to 12,000 mg/L. This hoisted biomass concentration permits for more productive poison expulsion and supplement reduction.
Aerobic and Anoxic Zones
MBR systems often incorporate both aerobic and anoxic zones to facilitate comprehensive nutrient removal. The aerobic zone, rich in dissolved oxygen, promotes the growth of aerobic bacteria that degrade organic matter and convert ammonia to nitrate. In the anoxic zone, denitrifying bacteria thrive, converting nitrates to nitrogen gas, thus completing the nitrogen removal process. This zonal approach ensures advanced nutrient removal, addressing concerns related to eutrophication in receiving water bodies.
Biomass Retention and Adaptation
One of the key advantages of MBR systems is their ability to retain a diverse microbial community. The membrane bioreactor configuration allows for longer sludge retention times (SRT), typically ranging from 15 to 30 days. This extended retention period enables the development of slow-growing microorganisms specialized in degrading complex pollutants. As a result, MBR systems can adapt to variations in influent composition and effectively treat a wide range of contaminants, including recalcitrant compounds that might challenge conventional treatment methods.
Membrane Separation: Solid-Liquid Division Process
The membrane separation phase is what sets MBR systems apart from conventional activated sludge processes. This critical stage employs advanced filtration technology to achieve superior solid-liquid separation, resulting in high-quality effluent suitable for various reuse applications.
Membrane Characteristics and Configuration

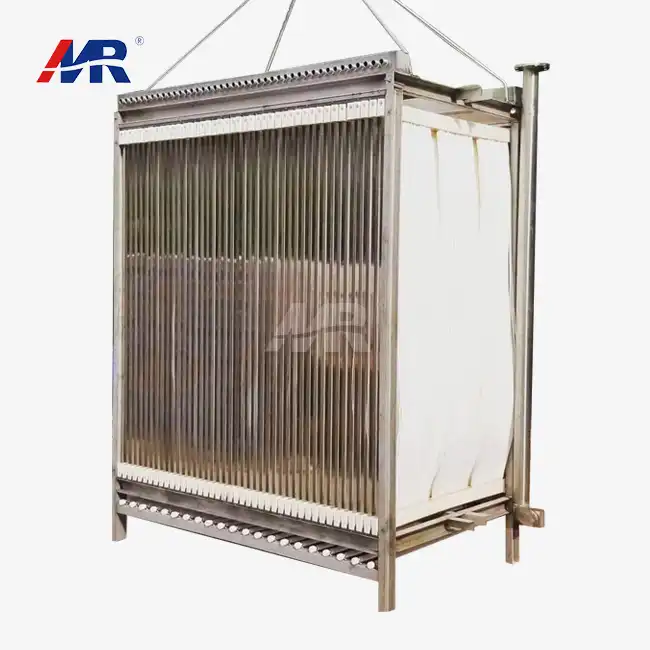

The heart of the MBR system is the MBR membrane module, typically comprising hollow fiber ultrafiltration membranes with a pore size of around 0.04 microns. This ultra-fine filtration capability ensures the removal of suspended solids, bacteria, and even some viruses from the treated water. MBR membranes are designed to operate at flux rates between 10 to 25 liters per square meter per hour (LMH), balancing high throughput with sustainable long-term performance.
Filtration Mechanisms and Fouling Control
The membrane filtration process in MBR systems relies on a combination of size exclusion and cake layer formation. As water permeates through the membrane, suspended solids and microorganisms are retained, forming a dynamic layer on the membrane surface. This cake layer can contribute to additional filtration but also leads to membrane fouling over time. To combat fouling and maintain stable operation, MBR systems employ various strategies, including air scouring, backwashing, and chemical cleaning. These maintenance procedures ensure consistent performance and extend the lifespan of the membrane modules.
Synergy Effect: Combining Biology and Technology
The true power of MBR systems lies in the synergistic combination of biological treatment and membrane separation technologies. This integration results in a host of benefits that make MBRs an attractive option for a wide range of applications.
Enhanced Effluent Quality
By combining the biodegradation capabilities of microorganisms with the ultra-fine filtration of membranes, MBR systems produce exceptionally high-quality effluent. The treated water is free from suspended solids, has significantly reduced organic content, and exhibits low levels of nutrients. This superior effluent quality opens up numerous possibilities for water reuse, supporting sustainable water management practices in water-scarce regions.
Compact Footprint and Modular Design
The integration of biological treatment and membrane separation in a single unit allows MBR Membrane systems to achieve a smaller footprint compared to conventional treatment plants. This space-saving design is particularly advantageous in urban areas where land availability is limited. Furthermore, the modular nature of MBR Membrane systems facilitates easy expansion and upgrades, providing flexibility to adapt to changing treatment requirements or increasing capacity demands.
Operational Flexibility and Automation
MBR systems offer greater operational flexibility than traditional wastewater treatment methods. The ability to maintain high biomass concentrations and adjust retention times allows operators to fine-tune the treatment process for optimal performance. Additionally, the automation capabilities of modern MBR systems, including real-time monitoring and control of key parameters, contribute to reduced labor costs and improved process stability.
Conclusion
The composition and working principles of MBR systems represent a significant advancement in wastewater treatment technology. By harnessing the power of microorganisms and coupling it with cutting-edge membrane filtration, MBRs offer a robust, efficient, and versatile solution for addressing diverse water treatment challenges. As water scarcity and environmental regulations become increasingly pressing concerns, the adoption of MBR technology is poised to play a crucial role in sustainable water management strategies across various industries and municipalities.
Are you looking to upgrade your wastewater treatment capabilities or implement a state-of-the-art water reuse system? Guangdong Morui Environmental Technology Co., Ltd. is your trusted partner in advanced water treatment solutions. Our expertise spans industrial wastewater, domestic sewage treatment, seawater desalination, and drinking water manufacturing. We offer not just equipment, but comprehensive services including one-stop installation, commissioning, and ongoing support.
With our in-house membrane production facility and partnerships with leading brands like Shimge Water Pumps, Runxin Valves, and Createc Instruments, we deliver tailored solutions to meet your specific needs. Whether you're in the food and beverage industry, pharmaceutical manufacturing, or managing a municipal wastewater treatment plant, our MBR systems can help you achieve superior water quality while optimizing your operational efficiency.
FAQ
1. What are the main advantages of MBR systems over conventional wastewater treatment methods?
MBR systems offer several key advantages, including superior effluent quality, reduced footprint, lower sludge production, and the ability to handle higher organic loading rates. The integration of biological treatment with membrane filtration results in more efficient pollutant removal and enables water reuse applications.
2. How often do MBR membranes need to be replaced?
The lifespan of MBR membranes can vary depending on operating conditions and maintenance practices. With proper care and regular cleaning, MBR membranes can typically last 5-10 years. Factors such as influent characteristics, flux rates, and cleaning protocols can influence membrane longevity.
3. Can MBR systems treat industrial wastewater effectively?
Yes, MBR systems are highly effective in treating various types of industrial wastewater. Their ability to maintain high biomass concentrations and adapt to changing influent compositions makes them suitable for industries such as food and beverage, pharmaceuticals, and chemicals. However, pretreatment may be necessary for certain industrial streams to protect the membranes from harsh chemicals or excessive fouling.
4. What are the energy requirements for operating an MBR system?
MBR systems generally have higher energy requirements compared to conventional activated sludge processes, primarily due to the need for membrane aeration and permeate pumping. However, advancements in membrane technology and process optimization have led to more energy-efficient designs. The specific energy consumption can vary based on system size, configuration, and operating conditions.
Expert MBR Membrane Solutions for Wastewater Treatment | Morui
Looking for top-quality MBR membrane solutions for your wastewater treatment needs? Guangdong Morui Environmental Technology Co., Ltd. offers cutting-edge MBR systems designed to deliver exceptional performance and reliability. Our team of experts is ready to assist you in selecting the perfect MBR solution tailored to your specific requirements. From initial consultation to installation and ongoing support, we're committed to ensuring your success in water treatment and reuse initiatives. Don't hesitate to reach out to us at benson@guangdongmorui.com for a personalized quote or to discuss how our MBR technology can transform your water management practices. Take the first step towards cleaner water and improved operational efficiency with Morui's advanced MBR solutions today!
References
1. Judd, S. (2016). The MBR Book: Principles and Applications of Membrane Bioreactors for Water and Wastewater Treatment. Butterworth-Heinemann.
2. Meng, F., et al. (2017). Fouling in membrane bioreactors: An updated review. Water Research, 114, 151-180.
3. Krzeminski, P., et al. (2017). The optimal MBR configuration: Hybrid versus stand-alone — Comparison of three full-scale MBRs treating municipal wastewater. Desalination, 421, 68-76.
4. Subtil, E. L., et al. (2014). Membrane bioreactor (MBR) for municipal wastewater treatment – A review. Brazilian Journal of Chemical Engineering, 31(3), 719-732.
5. Le-Clech, P. (2010). Membrane bioreactors and their uses in wastewater treatments. Applied Microbiology and Biotechnology, 88(6), 1253-1260.
6. Xiao, K., et al. (2019). Engineering application of membrane bioreactor for wastewater treatment in China: Current state and future prospect. Frontiers of Environmental Science & Engineering, 13(1), 1-21.
