Key components of an industrial seawater desalination machine

Water shortage problems around the world can't be solved without industrial seawater desalination machines. In order to meet the growing demand for clean water supplies, these high-tech devices change saltwater into drinkable freshwater. Businesses, cities, and other groups that want to use desalination options need to know about the main parts of these machines. There are many parts that work together to get rid of salt and other impurities in seawater, ranging from high-pressure pumps to sophisticated screens. The main parts of a modern seawater desalination machine will be looked at in detail in this guide. We will talk about what they do and how important they are to the desalination process. Finding out about these basic ideas will help you understand how complicated seawater desalination technology is, whether you work in industry, environmental management, or cleansing water.

Pumps and Pressure Vessels: Powering Desalination

Every seawater desalination machine is made up of a network of pumps and pressure tanks that work together to remove salt from the water. At pressures above 800 psi, high-pressure pumps move seawater through semi-permeable barriers. They are the system's workhorses. These pumps have to be carefully designed to be able to handle the acidic nature of saltwater and keep working well for long periods of time.

Types of Pumps in Desalination Systems

Several pump varieties are employed in desalination plants, each serving a specific purpose:

Centrifugal pumps: Commonly used for intake and pre-treatment stages
Positive displacement pumps: Ideal for high-pressure applications in reverse osmosis systems
Axial flow pumps: Efficient for moving large volumes of water at lower pressures

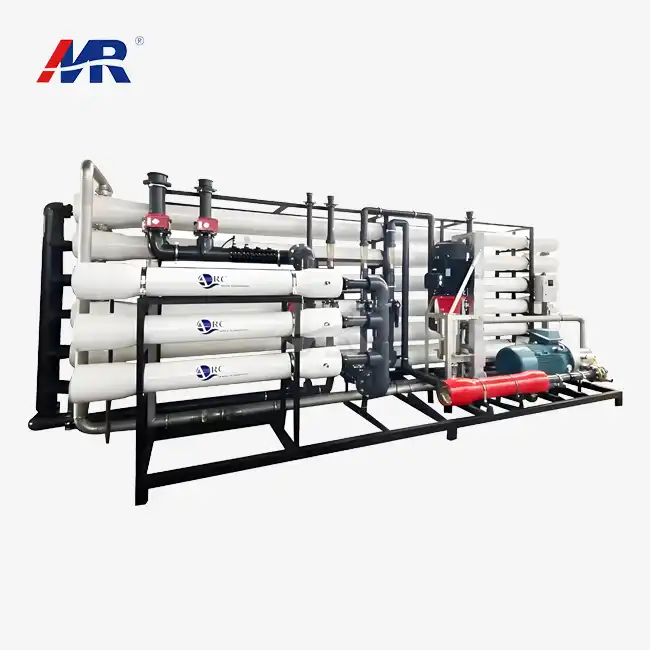

Pressure tanks, on the other hand, hold the reverse osmosis membranes and have to be able to handle the very high pressures needed for the desalination process. Most of the time, these tanks are made of fiberglass-reinforced plastic or stainless steel, which makes them strong and resistant to rust. The design of pressure vessels is very important because they need to allow for the best flow behavior while also being easy to maintain and change membranes.

Energy Considerations in Pump Selection

Selecting the right pumps for a bulk seawater desalination machine involves careful consideration of energy efficiency. Variable frequency drives (VFDs) are often incorporated to adjust pump speeds based on demand, optimizing energy consumption and extending equipment lifespan. Additionally, the integration of energy recovery devices with high-pressure pumps can significantly reduce overall energy requirements, making the desalination process more economically viable and environmentally friendly.

Membrane Types: Choosing the Right Filter

Membranes are the unsung heroes of seawater desalination, serving as the primary barrier between salt and freshwater. The selection of appropriate membrane technology is paramount to the efficiency and effectiveness of the desalination process. Reverse osmosis (RO) membranes are the most widely used in modern desalination plants, but other membrane types also play important roles in various stages of water treatment.

Reverse Osmosis Membranes

RO membranes are the cornerstone of most seawater desalination machines. These semi-permeable membranes allow water molecules to pass through while rejecting salt ions and other impurities. Key characteristics of RO membranes include:

High salt rejection rates (typically >99%)
Robust construction to withstand high operating pressures
Various configurations (spiral-wound, hollow fiber, or flat sheet)

Advancements in membrane technology have led to the development of low-fouling and high-flux membranes, which can significantly improve system performance and reduce operational costs.

Pre-treatment Membranes

Before seawater reaches the RO membranes, it undergoes pre-treatment to remove larger particles and biological contaminants. This stage often employs ultrafiltration (UF) or microfiltration (MF) membranes, which offer several benefits:

Removal of suspended solids and microorganisms
Protection of RO membranes from fouling and damage
Improved overall system efficiency and longevity

The selection of pre-treatment membranes depends on the specific characteristics of the source water and the desired quality of the final product.

Energy Recovery Devices: Boosting Efficiency

Energy recovery devices (ERDs) are integral components of modern seawater desalination machines, significantly enhancing the overall efficiency of the process. These innovative devices capture and reuse the energy from the high-pressure brine stream, which would otherwise be wasted. By recycling this energy, ERDs can reduce the power consumption of desalination plants by up to 60%, making the process more economically viable and environmentally sustainable.

Types of Energy Recovery Devices

Several types of ERDs are employed in desalination systems, each with its own advantages:

Pressure exchangers: Direct transfer of energy from brine to feed water
Turbochargers: Convert hydraulic energy to mechanical energy
Pelton wheels: Utilize the kinetic energy of the brine stream

The type of ERD used relies on things like the plant's capacity, its goals for energy saving, and its upkeep needs. Pressure separators, for example, have become more common recently because they work very well and can handle a lot of water.

Integration and Optimization

The benefits of ERDs must be fully utilized by incorporating them correctly into the distillation system. As a result, system hydraulics, pressure changes, and flow rates need to be carefully thought through. Energy recovery is maximized in a wide range of working situations thanks to advanced control systems and real-time monitoring.

When ERDs are used, high-pressure pumps can be shrunk, which lowers capital costs and makes the plant size smaller. In places with limited room or strict environmental rules, this is especially helpful for bulk seawater desalination machines.

Future Trends in Energy Recovery

As the desalination industry continues to evolve, new energy recovery technologies are emerging. These include:

Osmotic energy recovery systems
Forward osmosis hybrid systems
Nanomaterial-based energy harvesting devices

These innovative approaches promise to further reduce the energy intensity of seawater desalination, making it an increasingly attractive solution for water-scarce regions worldwide.

Conclusion

All those working in water treatment, industry, or environmental management would do well to familiarize themselves with the main parts of industrial seawater desalination machines for sale. Elements such as high-pressure pumps, specialized membranes, and unique energy recovery devices are crucial in the process of desalinizing saltwater. These components are getting better, longer-lasting, and cheaper as technology goes on, which means desalination systems may be used more widely across the world.

No one does it better than Guangdong Morui Environmental Technology Co., Ltd. when it comes to installing saltwater desalination systems or improving current water treatment infrastructure. Modern seawater desalination machines designed to suit the specific requirements of sectors as varied as manufacturing and municipal water supply are available from our company, a frontrunner in the water treatment solutions industry.

For water purification problems that are unique to your situation, our team of specialists is here to help you develop and implement a desalination solution. A dependable, effective, and long-lasting water treatment system is what you can expect from us because of our dedication to quality, cutting-edge technology, and extensive support services.

Don't let water scarcity limit your operations or community growth. Contact us today at benson@guangdongmorui.com to learn more about our advanced seawater desalination machines and how we can help you secure a stable, high-quality water supply for years to come. Let Guangdong Morui Environmental Technology Co., Ltd be your trusted partner in turning seawater into opportunity.

References

1. Elimelech, M., & Phillip, W. A. (2011). The future of seawater desalination: Energy, technology, and the environment. Science, 333(6043), 712-717.

2. Ghaffour, N., Missimer, T. M., & Amy, G. L. (2013). Technical review and evaluation of the economics of water desalination: Current and future challenges for better water supply sustainability. Desalination, 309, 197-207.

3. Greenlee, L. F., Lawler, D. F., Freeman, B. D., Marrot, B., & Moulin, P. (2009). Reverse osmosis desalination: Water sources, technology, and today's challenges. Water Research, 43(9), 2317-2348.

4. Peñate, B., & García-Rodríguez, L. (2012). Current trends and future prospects in the design of seawater reverse osmosis desalination technology. Desalination, 284, 1-8.

5. Semiat, R. (2008). Energy issues in desalination processes. Environmental Science & Technology, 42(22), 8193-8201.

6. Voutchkov, N. (2018). Energy use for membrane seawater desalination – current status and trends. Desalination, 431, 2-14.
