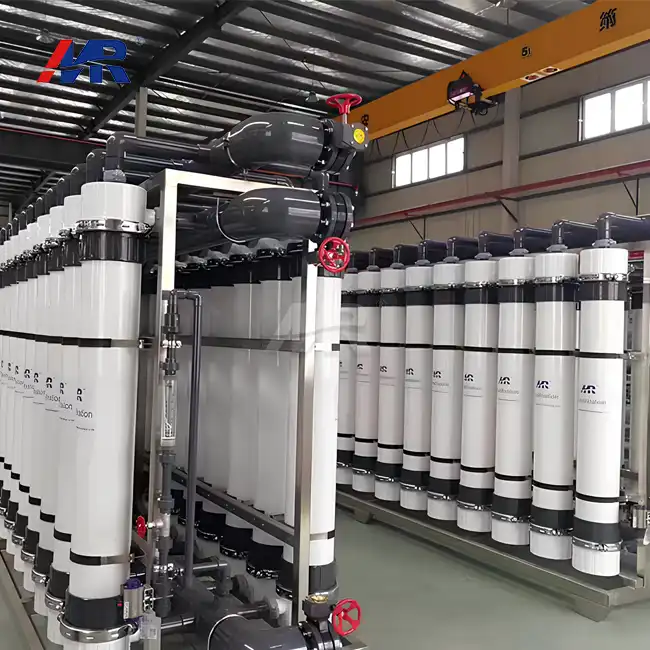

200m3/hour Ultrafiltration Equipment: Compact Design, Massive Impact

In the ever-evolving landscape of water treatment technology, the 200m3/hour Ultrafiltration System stands as a testament to engineering ingenuity and efficiency. This powerhouse of purification combines a compact footprint with an impressive flow rate, making it a game-changer for industries and municipalities alike. By harnessing advanced membrane technology, this system efficiently removes suspended solids, bacteria, and other contaminants from water, ensuring a high-quality output that meets stringent standards. The beauty of this ultrafiltration marvel lies not just in its capacity, but in its ability to deliver such performance within a surprisingly small space. This makes it an ideal solution for facilities where space is at a premium, yet water treatment demands are high. From food and beverage production to pharmaceutical manufacturing, the applications of this high-capacity system are as diverse as they are crucial. As we delve deeper into the intricacies of this Ultrafiltration Plant, we'll uncover how its innovative design principles and cutting-edge features are reshaping the water treatment landscape, offering a glimpse into a future where efficiency and sustainability go hand in hand.

How Can Such a High Flow Rate Be Achieved in a Relatively Small Footprint?

The achievement of a 200m3/hour flow rate in a compact ultrafiltration system is a feat of engineering that combines several innovative approaches. At the heart of this system lies advanced membrane technology, specifically PVDF hollow fiber membranes with a pore size ranging from 0.01 to 0.1 microns. These membranes are not only highly efficient in removing contaminants but also allow for a dense packing arrangement within the system.

Optimized Membrane Configuration

The key to achieving high flow rates in a small footprint lies in the optimized configuration of the membrane modules. By arranging the hollow fiber membranes in a vertical orientation, the system maximizes the available surface area for filtration while minimizing the horizontal space required. This vertical design allows for efficient use of gravity in the filtration process, reducing the energy needed for water flow.

Advanced Flow Distribution

Another crucial factor in achieving high flow rates is the implementation of advanced flow distribution systems. These systems ensure that water is evenly distributed across all membrane modules, maximizing the utilization of the entire filtration area. This even distribution not only enhances the system's capacity but also prolongs the life of the membranes by preventing localized fouling.

Innovative Backwashing Techniques

To maintain high flow rates over time, the system incorporates innovative backwashing techniques. These techniques use air scouring and reverse flow to effectively clean the membranes without the need for extensive downtime. This approach allows for continuous operation at high capacities, further contributing to the system's impressive performance within its compact design.

Modular Design Principles for Scalable 200 m³/h UF Installations

The modular design of the 200m3/hour ultrafiltration system is a cornerstone of its versatility and efficiency. This approach not only facilitates easier installation and maintenance but also allows for scalability to meet changing water treatment demands.

Standardized Module Units

At the core of the modular design are standardized ultrafiltration module units. These units are self-contained and include all necessary components for filtration, including membrane housings, piping, and control valves. The standardization allows for easy replication and expansion of the system capacity as needed.

Plug-and-Play Integration

The modular units are designed with a plug-and-play approach, featuring quick-connect fittings and standardized interfaces. This design principle significantly reduces installation time and complexity, allowing for rapid deployment and commissioning of the Ultrafiltration System.

Scalability and Flexibility

The modular nature of the system provides unparalleled scalability. Facilities can start with a smaller installation and easily expand by adding more modules as their treatment needs grow. This flexibility is particularly valuable for industries with fluctuating water treatment requirements or municipalities planning for future growth.

Space-Saving Benefits of Integrated High-Capacity Ultrafiltration Skids

The integration of high-capacity ultrafiltration components into compact skids represents a significant advancement in space-efficient water treatment solutions. These integrated skids offer numerous benefits that make them ideal for a wide range of applications.

Comprehensive All-in-One Design

Integrated ultrafiltration skids consolidate all necessary components into a single, compact unit. This includes pre-filtration systems, ultrafiltration membranes, pumps, valves, and control systems. By housing these elements in a unified structure, the skid minimizes the overall footprint of the Ultrafiltration Plant, making it suitable for installation in confined spaces.

Vertical Integration for Maximum Space Efficiency

The vertical integration of components within the skid maximizes the use of available space. By stacking elements vertically, the system utilizes height rather than floor area, which is often at a premium in industrial and municipal settings. This vertical arrangement also facilitates easier access for maintenance and monitoring.

Reduced Infrastructure Requirements

The compact nature of integrated ultrafiltration skids significantly reduces the infrastructure requirements for installation. Less piping, fewer connection points, and a smaller foundation are needed compared to traditional, spread-out systems. This not only saves space but also reduces installation costs and complexity.

Enhanced Portability and Flexibility

The skid-mounted design enhances the portability of the ultrafiltration system. This is particularly beneficial for temporary installations, pilot projects, or applications where the treatment system may need to be relocated in the future. The compact, self-contained nature of the skid allows for easier transportation and rapid deployment across different sites.

In conclusion, the 200m3/hour Ultrafiltration Equipment showcases how innovative design and engineering can deliver massive impact in a compact package. Its high flow rate, achieved through optimized membrane configuration and advanced flow distribution, sets new standards in water treatment efficiency. The modular design principles ensure scalability and ease of installation, while the integrated skid approach maximizes space utilization and flexibility.

For industries and municipalities seeking cutting-edge water treatment solutions, this ultrafiltration system offers a perfect blend of performance, efficiency, and adaptability. Its applications span across various sectors, from food and beverage production to municipal water treatment, demonstrating its versatility in meeting diverse water purification needs.

At Guangdong Morui Environmental Technology Co., Ltd, we pride ourselves on delivering state-of-the-art water treatment solutions tailored to your specific requirements. Whether you're in the manufacturing industry, food and beverage sector, or managing municipal utilities, our expertise in ultrafiltration technology can help you achieve your water treatment goals efficiently and effectively.

Ready to revolutionize your water treatment process with our high-capacity, space-efficient ultrafiltration equipment? Contact us today at benson@guangdongmorui.com to discuss how our innovative solutions can meet your unique needs. Let Guangdong Morui Environmental Technology Co., Ltd be your partner in achieving superior water quality and operational efficiency.
