What pre-treatment is required for a 15 m³/h SWRO?

For a 15 m³/h seawater desalination plant, appropriate pre-treatment is pivotal to guarantee ideal execution and life span of the invert osmosis (RO) layers. The pre-treatment handle for a Seawater Turn around Osmosis (SWRO) framework of this capacity regularly includes a few key steps. These incorporate beginning screening to expel huge particles, taken after by mixed media filtration to diminish suspended solids and turbidity. Cartridge filtration serves as a last obstruction some time recently the water comes to the RO films. Chemical dosing, counting antiscalants and coagulants, is fundamental to avoid scaling and fouling. A few progressed frameworks may consolidate ultrafiltration (UF) for prevalent molecule expulsion. The particular pre-treatment necessities can shift based on the source water quality and nearby conditions, but these center components are essential to ensuring the SWRO plant and keeping up its effectiveness. By executing a comprehensive pre-treatment procedure, administrators can essentially upgrade the execution and life expectancy of their desalination framework, eventually driving to more solid freshwater production.

Essential Pre-treatment Steps: Multimedia Filtration and Cartridge Filters

Multimedia filtration plays a pivotal role in the pre-treatment process for a 15 m³/h SWRO system. This filtration method utilizes multiple layers of media, typically including anthracite, sand, and garnet, each with different particle sizes and densities. As seawater passes through these layers, suspended solids are trapped, effectively reducing turbidity and silt density index (SDI).

Benefits of Multimedia Filtration

The layered approach of multimedia filtration offers several advantages:

Improved filtration efficiency due to varying pore sizes
Higher dirt-holding capacity compared to single-media filters
Longer filter runs between backwashes
Reduced pressure drop across the filter bed

Following multimedia filtration, cartridge filters serve as a critical final barrier before the water reaches the RO membranes. These filters, typically rated at 5 microns or less, capture any remaining fine particles that could potentially damage or foul the membranes.

Importance of Cartridge Filtration

Cartridge filters offer several benefits in SWRO pre-treatment:

Protection against sudden spikes in suspended solids
Easy replacement when fouled, ensuring consistent performance
Customizable filtration ratings to match specific water quality needs
Safeguarding expensive RO membranes from particulate fouling

The combination of multimedia and cartridge filtration creates a robust pre-treatment system that significantly reduces the load on the RO membranes, thereby extending their lifespan and maintaining the efficiency of the seawater desalination plant.

Why is chemical dosing (antiscalant, coagulant) critical for membrane life?

Chemical dosing is a crucial aspect of pre-treatment in SWRO systems, playing a vital role in preserving membrane life and maintaining system efficiency. Two key chemicals used in this process are antiscalants and coagulants, each serving distinct yet complementary functions.

Role of Antiscalants

Antiscalants are essential in preventing scale formation on RO membranes. Seawater contains high concentrations of dissolved minerals that can precipitate and form scale when concentrated during the RO process. Antiscalants work by:

Interfering with crystal growth of scale-forming compounds
Increasing the solubility of sparingly soluble salts
Dispersing colloidal particles to prevent their deposition on membrane surfaces

By preventing scale formation, antiscalants help maintain membrane permeability, reduce energy consumption, and extend the intervals between chemical cleanings.

Importance of Coagulants

Coagulants are used to improve the removal of suspended particles and colloids from the seawater. They work by:

Destabilizing small particles, allowing them to aggregate into larger, more easily filterable flocs
Enhancing the performance of subsequent filtration stages
Reducing the silt density index (SDI) of the feed water

Effective coagulation can significantly reduce membrane fouling, leading to more stable operation and longer membrane life.

The proper selection and dosing of these chemicals are critical for the longevity and efficiency of the RO membranes. Overdosing can lead to membrane fouling, while underdosing may result in inadequate protection against scaling and fouling. Regular monitoring and adjustment of chemical dosing based on feed water quality and system performance are essential for optimal operation of the SWRO plant.

Comparing Pre-treatment Technologies: UF vs. Conventional Media Filters

When designing a pre-treatment system for a 15 m³/h SWRO plant, operators must choose between conventional media filtration and more advanced technologies like ultrafiltration (UF). Both approaches have their merits, and the choice often depends on specific project requirements, feed water quality, and operational considerations.

Ultrafiltration (UF) Pre-treatment

UF technology offers several advantages in SWRO pre-treatment:

Superior particle removal, typically down to 0.01-0.02 microns
Consistent permeate quality regardless of feed water turbidity fluctuations
Effective removal of bacteria and some viruses, improving biological fouling control
Smaller footprint compared to conventional media filters
Potential for higher RO flux rates and reduced chemical consumption

However, UF systems also have some considerations:

Higher capital cost compared to conventional media filters
More complex operation and maintenance requirements
Potential for membrane fouling, requiring regular chemical cleaning

Conventional Media Filtration

Traditional media filtration remains a reliable choice for many SWRO plants:

Lower initial investment cost
Simpler operation and maintenance
Robust performance in handling high turbidity events
Longer track record in seawater desalination applications

Limitations of conventional filtration include:

Less consistent permeate quality during feed water quality fluctuations
Larger footprint required for equivalent capacity
Limited removal of smaller particles and microorganisms

The choice between UF and conventional media filtration depends on various factors, including feed water quality, space constraints, energy costs, and local expertise. In some cases, a hybrid approach combining both technologies may offer the best solution for a 15m3/hour seawater desalination system price. Ultimately, the goal is to provide the most effective and economical pre-treatment to protect the RO membranes and ensure reliable operation of the desalination plant.

Conclusion

Effective pre-treatment is crucial for the success of any SWRO plant, particularly for a 15 m³/h system. By implementing a comprehensive pre-treatment strategy that includes multimedia filtration, cartridge filters, chemical dosing, and potentially advanced technologies like UF, operators can significantly enhance the performance and longevity of their desalination systems. This not only ensures consistent high-quality water production but also optimizes operational costs and energy efficiency.

FAQ

1. What is the typical recovery rate for a 15 m³/h SWRO system?

The recovery rate for a 15 m³/h SWRO system typically ranges from 40% to 45%, depending on feed water quality and system design.

2. How often should pre-treatment filters be backwashed or replaced?

Backwashing frequency for multimedia filters depends on feed water quality but is typically done every 24-48 hours. Cartridge filters are usually replaced every 1-3 months, or when the pressure drop becomes excessive.

3. What is the expected lifespan of RO membranes in a well-maintained SWRO system?

With proper pre-treatment and maintenance, RO membranes in a seawater desalination plant can last 5-7 years, sometimes even longer.

4. How does feed water temperature affect SWRO system performance?

Higher feed water temperatures generally increase membrane permeability, allowing for higher production rates but potentially at the cost of reduced salt rejection. System design and operation must account for seasonal temperature variations.

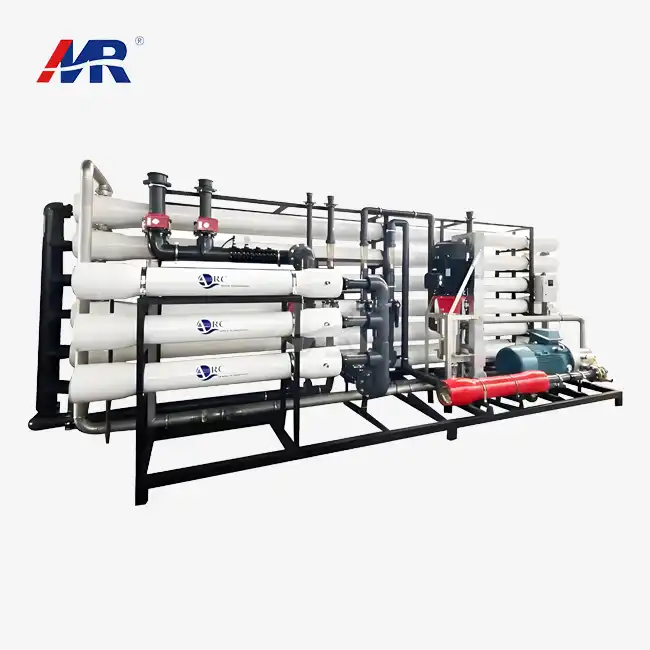

Top-Quality Seawater Desalination Plants | Morui
