What Is DTRO and How It Transforms Wastewater Treatment Efficiency？

Disc Tube Reverse Osmosis (DTRO) is changing the way wastewater is treated, giving enterprises that deal with tough effluents a strong new tool. This new DTRO system uses a novel disc-tube architecture and the strong performance of reverse osmosis to remove more contaminants, especially in places that get dirty quickly. DTRO technology is changing the way enterprises purify water and recover resources by attaining very high rejection rates for salts, heavy metals, and organic compounds. DTRO is a game-changer for industries from landfill leachate treatment to zero liquid discharge (ZLD) applications in chemical manufacturing since it can handle high-strength wastewaters, runs on less energy, and has less membrane fouling.

Understanding DTRO Technology and Its Advantages

The Basic Ideas Behind DTRO

DTRO technology is based on traditional reverse osmosis ideas, but it also adds new design features. The system is made up of a succession of disc-shaped membrane modules that are layered inside a cylindrical pressure vessel. This setup gives the treatment system the most membrane surface area while taking up the least amount of space.

When wastewater is pushed through these tightly packed membrane discs at high pressure, the water molecules are separated from the pollutants. The way the discs are arranged makes the flow patterns turbulent, which helps to keep the membranes from getting dirty and scaling, which is a major problem with regular RO systems.

The main benefits of DTRO over regular RO

• Better resistance to fouling: The disc shape and turbulent flow make it less likely for foulants to build up on membrane surfaces.
• Higher Recovery Rates: DTRO systems can get back 50–70% of the water they use, which is much better than many typical RO systems.
• Small Footprint: The stacked disc design makes better use of space, therefore DTRO is perfect for places where space is limited.

Flexibility in Treating High-Strength Wastewaters: DTRO can manage influent streams with COD levels up to 25,000 mg/L, which is far higher than

What most other systems can do？

Energy efficiency: The better flow dynamics and less fouling mean that less energy is used, which could save 20–30% compared to standard RO.
Uses in Different Fields

DTRO technology is useful for many different industrial uses since it is so flexible:

• DTRO is good in getting rid of heavy metals and complex organic compounds from leachate that is quite polluted.
• Industrial Wastewater: DTRO can treat high-strength effluents, which is helpful for industries including textiles, pharmaceuticals, and chemical manufacture.
• Mining and Mineral Processing: DTRO can get valuable minerals back and make clean water from mine drainage and process wastewater.
• Food and Drink: The technology helps make products more concentrated and cleans up process wastewater to meet strict discharge rules.
• Zero Liquid Discharge (ZLD) Systems: DTRO is a key part of ZLD systems. It cuts down on the amount of wastewater by a lot and makes it possible to recover resources.

Design and operational issues for the DTRO system

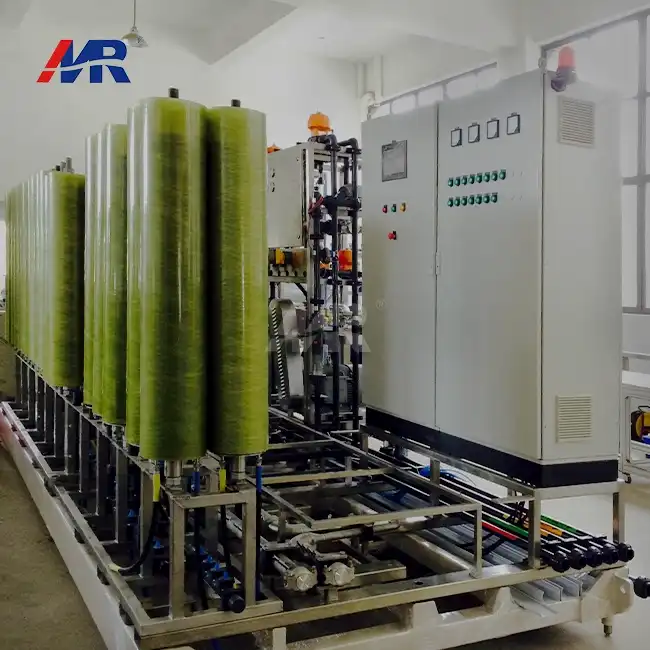

Important Parts of a DTRO System

A standard DTRO system has a number of important parts that function together:

• Disc Tube Modules: The main part of the system, which has stacked membrane discs inside.
• High-Pressure Pumps: To make the pressure needed for the reverse osmosis process.
• Pre-treatment systems: These usually have multimodal filtration and chemical dosing to keep the membranes safe.
• Cleaning Systems: Mechanisms that clean in place to keep the membrane working well.
• Control and Monitoring Equipment: Advanced PLC systems that let you keep an eye on operations in real time.

Optimizing and setting operational parameters

For DTRO to work well, you need to carefully manage a few important parameters:

• Managing pressure is finding the right operating pressure that balances the amount of permeate produced with the amount of energy used.
• Flow Rates: Keeping turbulent conditions and reducing scaling by controlling cross-flow velocities.
• Recovery Rate: Finding the right balance between getting water back and the risk of rain and scaling.
• How often to clean: Use proactive cleaning schedules to keep the membrane working well.
• Controlling pH and temperature: changing these things to get the best rejection rates and keep the membrane from breaking.

Things to think about for maintenance and longevity

There are a number of important maintenance tasks that must be done to keep DTRO systems running well and reliably for a long time:

• Regular Membrane Inspection: Checking disk modules every so often for symptoms of deterioration or too much dirt.
• Optimized Cleaning Protocols: Making chemical cleaning routines fit the types of dirt that need to be cleaned.
• Monitoring and Data Analysis: Keeping an eye on how the system is working all the time to find and fix problems before they happen.
• Operator Training: Making sure that employees know how to use DTRO and how to fix problems with it.
• Scheduled replacement of worn parts and regular system audits are examples of preventive maintenance.
• Case Studies: Success Stories in Wastewater Treatment: Breakthrough in Treating Landfill Leachate

A city dump in Asia had trouble handling leachate that was quite dirty using regular methods. The use of a DTRO system led to:

• The treated effluent had a COD level that went from 15,000 mg/L to less than 100 mg/L.
• More than 99% of ammonia nitrogen is removed.
• 65% of the water is recovered, which greatly cuts down on the amount of trash that needs to be thrown away.
• Following strict municipal rules for discharges to avoid big fines.
• In chemical manufacturing, achieving zero liquid discharge

As part of a ZLD effort, a chemical facility in South America used DTRO technology:

• DTRO concentration cut the amount of wastewater by 85%.
• Getting important raw ingredients back from the concentrated brine stream.
• More than 100,000 cubic meters of water saved each year.
• A return on investment was realized within 18 months, thanks to lower disposal costs and resource recovery.

Solution for Water Management in the Mining Industry

An African copper mine used DTRO to deal with problems with water shortages and the environment:

• Cleaning up acid mine drainage so that it can be used again in the process.
• 60% less use of fresh water.
• Choosing to recover copper and other important metals from the concentrate stream.
• A big drop in the impact on the environment and better connections with the community.

FAQ

Q1: How does DTRO compare to regular reverse osmosis when it comes to saving energy?

A: DTRO systems use 20% to 30% less energy than regular reverse osmosis systems. The disc-tube design makes the flow dynamics better and cuts down on fouling, which means less energy is needed to keep high pressure and flow rates.

Q2: Is DTRO able to manage wastewaters with a lot of salt?

A: Yes, DTRO works effectively to clean up wastewaters with a lot of salt in them. The system can handle influent streams with total dissolved solids (TDS) values of up to 70,000 mg/L, which makes it perfect for uses like seawater desalination and brine concentration in factories.

Q3: How long do DTRO membranes usually last?

A: If you take care of and use DTRO membranes correctly, they can last 3–5 years or longer. The actual longevity, on the other hand, relies on things like the quality of the water coming in, the conditions in which it is used, and how well the pre-treatment and cleaning processes work. Regularly checking on performance and doing maintenance before problems happen can greatly lengthen the life of membranes.

Morui's Advanced DTRO System Solutions for Treating Industrial Wastewater

Are you ready to change the way you treat wastewater with the latest DTRO technology? Guangdong Morui Environmental Technology Co., Ltd. makes the most advanced DTRO systems that are made to fit the needs of your industry. Our team of experts offers full support, from designing the system to installing it and keeping it up to date. Morui's DTRO solutions offer better pollution removal, energy efficiency, and long-term reliability. Email us at benson@guangdongmorui.com today to talk about how we can help you improve your wastewater treatment operations and reach your environmental and business goals.

References

1. Zhang, Y., et al. (2021). "Advanced treatment of landfill leachate utilizing disc-tube reverse osmosis: Performance assessment and fouling examination." Journal of Water Process Engineering, 40, 101891.

2. Li, X., and others (2020). "Comparing the disc tube reverse osmosis process to the traditional reverse osmosis process for reclaiming municipal wastewater." Water Research, 175, 115678.

3. Wang, J., et al. (2019). "Utilization of disc tube reverse osmosis technology in zero liquid discharge systems for the treatment of high-salinity wastewater." Desalination, 465, 35–42.

4. Chen, G., et al. (2018). "Energy-efficient disc tube reverse osmosis membrane system for treating industrial wastewater." Journal of Cleaner Production, 196, 1203–1211.

5. Liu, S., et al. (2022). "Disc tube reverse osmosis technology for the sustainable management of mining wastewaters: A thorough review." Environmental Management Journal, 305, 114353.

6. Tong, T., et al. (2020). "Fouling mitigation in disc tube reverse osmosis systems: Mechanisms and innovative cleaning strategies." Technology for separation and purification, 250, 117252.
