What components make up MBR Membrane?

Several complex parts work together to make the MBR Membrane, an important part of Membrane Bioreactor (MBR) systems, clean wastewater effectively. Within an MBR membrane, there is a porous filtering surface that is usually created from advanced polymeric materials like PVDF or PES. Surfaces like hollow fibers or flat sheets are placed on this surface in certain ways to make membrane modules. Sturdy frames, headers for water distribution, and aeration systems help keep these units working at their best. Structure of the membrane is made to let water pass through while keeping solids and microorganisms out. This works by mixing biological treatment with physical separation. The membrane's durability and long-term effectiveness in a variety of wastewater treatment uses are also improved by permeate collection systems, backwash mechanisms, and cleaning-in-place (CIP) arrangements.

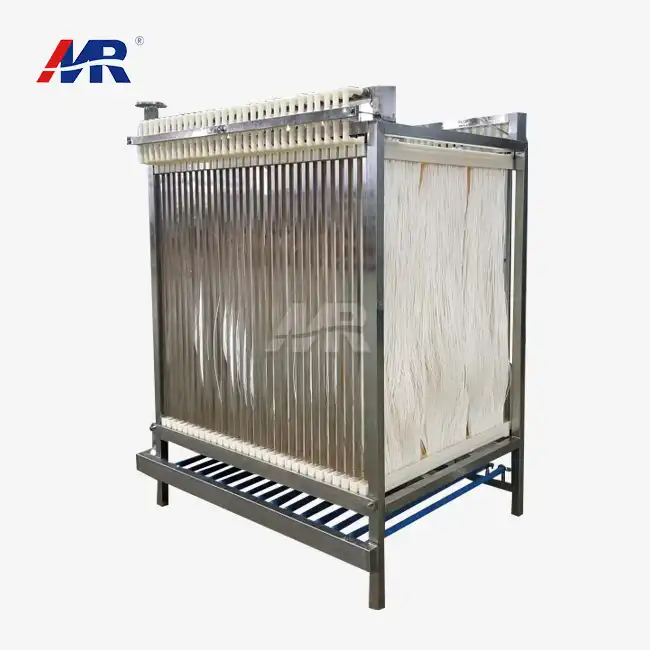

Membrane Cassette Modules: The Core Filtration Unit

There are membrane cassette modules inside every MBR Membrane Module. These are the main pieces that filter things. These units were carefully made to have as much surface area as possible while having as little of an impact as possible. This makes it possible to treat large amounts of wastewater efficiently. The hollow fibers or membrane sheets inside these boxes are set up in certain ways to improve flow and stop fouling.

Key Features of Membrane Cassette Modules

Membrane cassette units have a high packing density, which means they can fit a lot of filtration area into a small space. This design not only makes treatment more effective, but it also makes the MBR system work better overall. The modules often incorporate innovative features such as:

Self-cleaning mechanisms to reduce maintenance requirements
Uniform flow distribution systems to ensure consistent performance across the entire membrane surface
Robust materials that can withstand the rigors of continuous operation in challenging environments
Modular designs that facilitate easy installation, removal, and replacement of individual components

The configuration of these cassettes in an MBR Membrane factory plays a pivotal role in determining the overall performance of the Membrane Bioreactor system, and factors such as membrane pore size, surface chemistry, and module geometry are carefully optimized to achieve the desired balance between flux rates, energy consumption, and effluent quality.

Essential System Components: Tanks, Pumps, and Aeration Systems

While the MBR Membrane modules are central to the MBR process, a suite of additional components is essential for the system's overall functionality and efficiency, and these components work in concert to create an environment that supports both biological treatment and membrane filtration processes.

Bioreactor Tanks: The Biological Powerhouse

Bioreactor tanks serve as the primary vessels where the biological treatment occurs. These tanks are designed to maintain optimal conditions for microbial activity, including:

Sufficient volume to accommodate the required hydraulic retention time
Mixing systems to ensure uniform distribution of biomass and substrates
Temperature control mechanisms to maintain ideal conditions for biological processes
Nutrient dosing systems to support microbial growth and metabolism

The design of these tanks is crucial in determining the overall treatment capacity and efficiency of the MBR system.

Pumping Systems: Driving the Flow

A network of pumps is integral to the operation of an MBR system, facilitating the movement of water and sludge throughout the treatment process. Key pumping components include:

Feed pumps to introduce influent wastewater into the system
Recirculation pumps to maintain mixed liquor suspended solids (MLSS) concentration
Permeate pumps to extract treated water through the membranes
Backwash pumps for membrane cleaning and fouling control

The selection and sizing of these pumps are critical factors in optimizing energy consumption and ensuring stable operation across varying flow conditions.

Aeration Systems: Oxygenation and Scouring

Aeration systems in MBR configurations serve dual purposes: providing oxygen for biological processes and scouring membrane surfaces to mitigate fouling. These systems typically consist of:

Fine bubble diffusers for efficient oxygen transfer to support microbial activity
Coarse bubble diffusers or dedicated air scouring systems for membrane cleaning
Blowers or compressors to supply air at the required pressure and flow rate
Advanced control systems to optimize aeration based on process demands

The design and operation of aeration systems significantly impact both treatment performance and energy efficiency, making them a critical focus area for ongoing optimization efforts in MBR technology.

What materials are MBR membranes typically made from? (e.g., PVDF, PES)

The choice of material for MBR membranes in a Membrane Bioreactor is a critical factor that influences the system's performance, durability, and cost-effectiveness, and two of the most commonly used materials in modern MBR systems are Polyvinylidene Fluoride (PVDF) and Polyethersulfone (PES), each offering unique properties that make them suitable for wastewater treatment applications.

PVDF: Balancing Performance and Durability

PVDF has emerged as a preferred material for many MBR applications due to its excellent balance of properties:

High chemical resistance, particularly to chlorine and other oxidizing agents
Strong mechanical properties, allowing for robust membrane structures
Good thermal stability, enabling operation across a wide temperature range
Hydrophobic nature, which can be modified to achieve desired performance characteristics

The versatility of PVDF allows for the creation of membranes with various pore sizes and surface properties, making it suitable for diverse wastewater treatment scenarios. Its resistance to fouling and ease of cleaning contribute to longer operational lifespans and reduced maintenance requirements.

PES: Enhancing Flux and Selectivity

Polyethersulfone (PES) is another popular choice for MBR membranes, offering its own set of advantages:

Excellent filtration performance with high flux rates
Good chemical and thermal stability
Naturally hydrophilic surface, which can help reduce organic fouling
High mechanical strength, allowing for the creation of membranes with high packing density

PES membranes are particularly valued for their ability to achieve high permeate quality while maintaining good flux rates. Their hydrophilic nature can be advantageous in certain applications where organic fouling is a significant concern.

Emerging Materials and Composite Structures

While PVDF and PES remain dominant in the MBR membrane market, ongoing research and development efforts are exploring new materials and composite structures to further enhance membrane performance. Some promising areas include:

Nanocomposite membranes incorporating materials like graphene oxide or silver nanoparticles to improve antimicrobial properties and fouling resistance
Ceramic membranes offering exceptional chemical and thermal stability for challenging industrial applications
Surface-modified membranes with tailored properties to address specific treatment requirements

These advancements in membrane materials are driving continuous improvements in MBR technology, enabling more efficient and cost-effective wastewater treatment solutions across various industries.

Conclusion

An MBR Membrane system is made up of many different parts that are all closely linked to each other. Each part is very important to the treatment process as a whole. Every part of the membrane cassette modules, from the main filtration units to the tanks, pumps, and ventilation systems that hold everything together, is made to work as well as possible. The membrane materials you choose, like PVDF and PES, also affect how well the system works and how long it lasts.

As new problems with cleaning wastewater come up, MBR technology changes to deal with them. New membrane materials, module designs, and ways to connect systems are making it possible to clean water and recover resources that were lost.

Morui Environmental Technology Co., Ltd. is the leader in MBR technology and can help a business or city clean wastewater in the most cutting edge way possible. As part of our full range of services, we clean sewage from factories and homes, remove salt from seawater, and make drinking water. We can make unique solutions that meet even the strictest water treatment needs thanks to our state-of-the-art hardware and membrane production plants.

Put state-of-the-art MBR technology to the test and see how it improves your water treatment procedures. To learn more about how our cutting-edge solutions can meet your unique needs and assist you in efficiently and sustainably attaining your water quality objectives, contact us at benson@guangdongmorui.com today.

References

1. Judd, S. (2020). The MBR Book: Principles and Applications of Membrane Bioreactors for Water and Wastewater Treatment. Elsevier Science.

2. Meng, F., et al. (2019). Membrane bioreactors for municipal wastewater treatment: Recent developments and future challenges. Journal of Environmental Sciences, 80, 87-101.

3. Drews, A. (2018). Membrane fouling in membrane bioreactors—Characterisation, contradictions, cause and cures. Journal of Membrane Science, 363(1-2), 1-28.

4. Le-Clech, P., et al. (2021). MBR focus: the operator's perspective. Water Science and Technology, 53(3), 189-194.

5. Krzeminski, P., et al. (2017). The present and future of membrane bioreactors (MBR) technology. Biotechnology Advances, 35(2), 145-168.

6. Wang, Z., et al. (2022). Recent advances in membrane bioreactors (MBRs) for wastewater treatment: A review. Journal of Environmental Management, 300, 113756.
