Core Components: High-Pressure Pumps and Energy Recovery Devices
At the heart of any seawater desalination system lies two critical components: high-pressure pumps and energy recovery devices. These elements work in tandem to ensure the efficient operation of the reverse osmosis process.
High-Pressure Pumps: The Driving Force
High-pressure pumps are the workhorses of SWRO systems, responsible for generating the immense pressure required to overcome osmotic pressure and force seawater through semi-permeable membranes, and these pumps typically operate at pressures ranging from 55 to 80 bar, depending on the salinity of the feed water and the desired recovery rate, so the selection of an appropriate high-pressure pump from a seawater desalination plant supplier is crucial for system efficiency and longevity.
There are several types of high-pressure pumps used in SWRO plants:
- Positive displacement pumps
- Centrifugal pumps
- Axial piston pumps
Each type has its advantages and is chosen based on factors such as plant capacity, energy efficiency requirements, and maintenance considerations.
Energy Recovery Devices: Maximizing Efficiency
Energy recovery devices (ERDs) are important parts of SWRO plants that make them use a lot less energy generally. The high-pressure brine stream coming out of the RO membranes gives these devices energy, which they then pass to the feed water coming in. Up to 60% of the energy used in the desalination process can be recovered by this process. This makes the system much more efficient and lowers its operating costs.
Common types of ERDs include:
- Pressure exchangers
- Turbochargers
- Pelton wheels
The choice of ERD depends on factors such as plant size, desired energy efficiency, and capital costs. Modern SWRO plants often utilize isobaric pressure exchangers, which offer the highest energy recovery rates and have become the industry standard for large-scale desalination projects.
The Role of Pre-treatment and Post-treatment Stages in the System
While the reverse osmosis process is at the core of seawater desalination, the pre-treatment and post-treatment stages play equally crucial roles in ensuring the longevity and efficiency of the system, as well as the quality of the produced water.
Pre-treatment: Safeguarding the RO Membranes
Pre-treatment is a critical stage in any SWRO system or seawater desalination plant, designed to remove suspended solids, organic matter, and potential foulants from the seawater before it reaches the RO membranes. Effective pre-treatment not only prolongs the life of the membranes but also reduces the frequency of cleaning cycles and improves overall system performance.
Key components of the pre-treatment stage include:
- Coagulation and flocculation systems
- Multimedia filtration units
- Ultrafiltration membranes
- Cartridge filters
- Chemical dosing systems for antiscalants and biocides
The specific combination and configuration of these components depend on the source water quality and the design requirements of the SWRO plant. For instance, a 15 m³/h system might employ a compact pre-treatment train consisting of multimedia filtration followed by ultrafiltration to ensure optimal feed water quality.
Post-treatment: Enhancing Water Quality
After the desalination process, the produced water often requires additional treatment to make it suitable for its intended use, whether for drinking, industrial applications, or irrigation. Post-treatment processes are designed to adjust the water's chemical composition, ensuring it meets regulatory standards and is safe for consumption.
Common post-treatment processes include:
- Remineralization to add essential minerals
- pH adjustment
- Disinfection (e.g., chlorination or UV treatment)
- Boron removal (if required)
For a 15 m³/h SWRO system, post-treatment might involve a calcite contactor for remineralization, followed by CO2 injection for pH adjustment and a UV disinfection unit to ensure microbiological safety.
How do membrane vessels and RO racks function in a 15 m³/h system?
Membrane vessels and RO racks are integral components of any SWRO system, including those with a capacity of 15 m³/h. These elements house and organize the reverse osmosis membranes, which are the core of the desalination process.
Membrane Vessels: The Pressure-Bearing Containers
Membrane vessels are cylindrical containers designed to withstand high pressures while housing multiple RO membrane elements. In a 15 m³/h system, these vessels typically contain 6-8 membrane elements arranged in series. The vessels are constructed from durable materials such as fiberglass-reinforced plastic (FRP) or stainless steel to withstand the corrosive nature of seawater and the high operating pressures.
Key features of membrane vessels include:
- End caps with feed, permeate, and concentrate connections
- Internal spacers to ensure proper flow distribution
- Sealing systems to prevent leakage between feed and permeate streams
For a 15 m³/h SWRO plant, you might find 3-4 pressure vessels arranged in parallel to achieve the desired capacity while maintaining optimal operating conditions for the membranes.
RO Racks: Organizing the Desalination Process

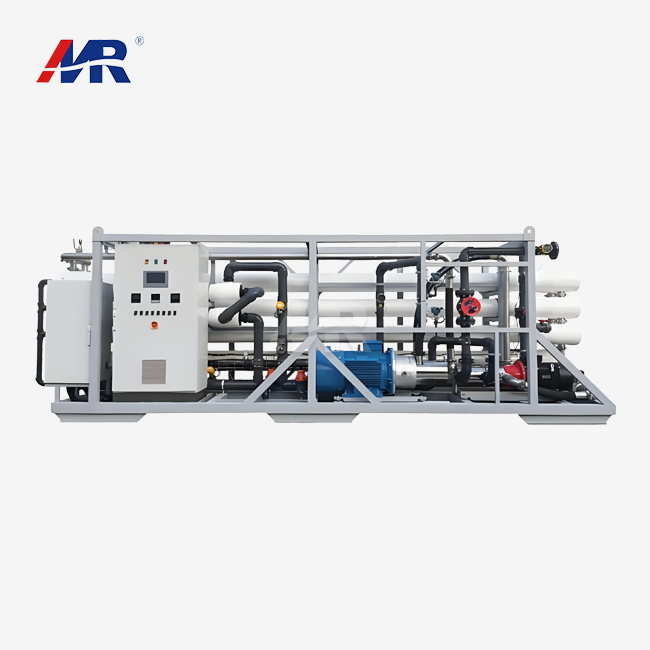

RO racks serve as the structural framework that organizes and supports the membrane vessels, piping, and associated equipment. In a 15 m³/h system, the RO rack would be designed to accommodate the required number of pressure vessels while ensuring easy access for maintenance and membrane replacement.
The RO rack design typically includes:
- Sturdy framework, often made of corrosion-resistant materials like stainless steel
- Manifolds for feed water distribution and permeate collection
- Mounting points for pressure gauges, flow meters, and sampling ports
- Provisions for CIP (Clean-In-Place) connections
In an SWRO system that can handle 15 m³/h, the RO rack could be set up as a single-stage system with several pressure vessels linked in parallel. This set-up makes running efficient while still leaving room for future capacity growth if needed.
The way membrane vessels and RO racks work together is very important for how well the SWRO system works as a whole. The right layout and design will make sure that the flow is evenly distributed, that pressure drops are kept to a minimum, and that upkeep is easy. These are all very important for making sure that a 15 m³/h plant consistently produces high-quality water.
Conclusion
It is important for people who work with water treatment or businesses that need a lot of clean water to understand the parts that make up an SWRO plant in a seawater desalination plant, from the main parts like high-pressure pumps and energy recovery devices to the important pre-treatment and post-treatment steps, and the membrane tanks and RO racks, especially in a 15 m³/h system, show how complicated the engineering has to be to make a desalination plant that works well.
The Guangdong Morui Environmental Technology Co., Ltd. is the only place you need to look for a safe and effective way to desalinate seawater. We are the best company to help you clean your water because we are experts in treating garbage from factories and homes, desalinating seawater, and making drinking water. Not only do we sell equipment, but we also give full solutions that include installation, commissioning, consumables, and full support after the sale.
We guarantee the best parts for your SWRO system because we have our own factories that make membranes and tools. As authorized dealers for well-known water treatment equipment names, we can make a solution that fits your needs, whether you work in manufacturing, food and beverage, pharmaceuticals, or any other field that needs high-quality water.
Ready to explore how our innovative RO systems can solve your water purification challenges? Contact us today at benson@guangdongmorui.com to discuss your needs and discover how our state-of-the-art seawater desalination technology can benefit your operations.
