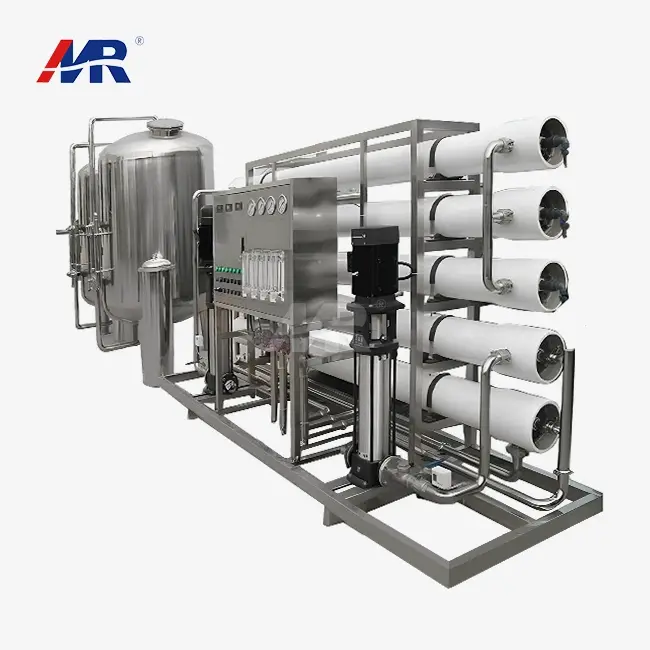

What Are the Components of Brackish Water Reverse Osmosis?

Brackish water reverse osmosis (BWRO) systems are sophisticated water treatment solutions designed to purify brackish water sources, which contain higher levels of dissolved salts than freshwater but less than seawater. These systems are crucial for producing high-quality water for various applications, including municipal water supply, industrial processes, and agricultural irrigation. Understanding the key components of a BWRO system is essential for anyone involved in water treatment or considering implementing such a solution. Let's delve into the core elements that make up these advanced purification systems, exploring how each contributes to the efficient removal of salts and contaminants from brackish water sources.

Essential Components: Multistage Centrifugal Pumps and Membrane Housings

At the heart of any brackish water reverse osmosis system lies two critical components: multistage centrifugal pumps and membrane housings. These elements work in tandem to create the high-pressure environment necessary for effective salt separation and water purification.

Multistage Centrifugal Pumps: The Powerhouse of BWRO Systems

Multistage centrifugal pumps are the workhorses of BWRO systems, responsible for generating the substantial pressure required to overcome osmotic pressure and force water through semi-permeable membranes. These pumps are designed to operate efficiently at high pressures, typically ranging from 150 to 400 psi for brackish water applications. The multistage design allows for incremental pressure buildup, ensuring optimal energy efficiency and reducing wear on pump components.

Key features of multistage centrifugal pumps in BWRO systems include:

Corrosion-resistant materials such as stainless steel or duplex alloys to withstand brackish water's corrosive nature
Variable frequency drives (VFDs) for precise control over pump speed and pressure output
Energy recovery devices to capture and reuse pressure from the concentrate stream, enhancing overall system efficiency

Membrane Housings: The Filtration Frontline

Membrane housings are the vessels that contain and protect the reverse osmosis membranes, which are the primary filtration elements in a BWRO system. These housings are engineered to withstand high operating pressures while facilitating the flow of feed water across the membrane surface.

Critical aspects of membrane housings include:

Durable construction, often using fiberglass-reinforced plastic (FRP) or stainless steel
Multiple ports for feed water inlet, permeate collection, and concentrate discharge
Precision-engineered internals to ensure even distribution of feed water across the membrane surface
Sealing mechanisms to prevent bypass and maintain system integrity

The synergy between multistage centrifugal pumps and membrane housings forms the foundation of efficient brackish water reverse osmosis systems, enabling the production of high-quality water with salt rejection rates exceeding 99% and recovery rates up to 85%.

How do cartridge filter housings protect the RO membranes?

Cartridge filter housings play a crucial role in safeguarding the delicate reverse osmosis membranes from premature fouling and damage. These components are an integral part of the pretreatment stage in brackish water reverse osmosis systems, acting as the first line of defense against particulate matter and other contaminants that could compromise membrane performance.

The Multi-Faceted Protection Offered by Cartridge Filters

Cartridge filter housings accommodate replaceable filter elements designed to remove suspended solids, sediment, and other particulates from the feed water before it reaches the RO membranes. This pretreatment step is essential for several reasons:

Particle Removal: Cartridge filters effectively capture particles as small as 1-5 microns, preventing them from reaching and potentially damaging the membrane surface.
Membrane Lifespan Extension: By reducing the particulate load on RO membranes, cartridge filters help extend membrane life, reducing replacement frequency and associated costs.
Improved System Performance: Clean feed water leads to more consistent and efficient RO system operation, maintaining high flux rates and optimal salt rejection.
Protection Against Biological Fouling: Some specialized cartridge filters can help reduce biological contaminants, mitigating the risk of biofouling on membrane surfaces.

Design Considerations for Effective Cartridge Filter Housings

To maximize the protective capabilities of cartridge filter housings in BWRO systems, several design factors are considered:

Material Selection: Housings are typically constructed from corrosion-resistant materials such as polypropylene or stainless steel to withstand the potentially aggressive nature of brackish water.
Flow Distribution: Proper inlet and outlet configurations ensure even distribution of water across the filter elements, maximizing filtration efficiency.
Ease of Maintenance: Quick-release mechanisms and ergonomic designs facilitate rapid filter cartridge replacement, minimizing system downtime.
Scalability: Modular designs allow for easy expansion of filtration capacity as system requirements grow.

By incorporating well-designed cartridge filter housings, BWRO system operators can significantly enhance membrane protection, leading to more reliable and cost-effective water treatment operations. This pretreatment step is essential for achieving the high performance and longevity expected from modern brackish water reverse osmosis systems.

Instrumentation: Key Sensors for Monitoring Pressure, Flow, and Quality

Advanced instrumentation is a critical component of modern brackish water reverse osmosis systems, providing real-time data on system performance and water quality. These sensors and monitoring devices enable operators to optimize system efficiency, detect potential issues early, and ensure consistent production of high-quality water.

Pressure Sensors: The Pulse of the System

Pressure sensors are strategically placed throughout the BWRO system to monitor hydraulic conditions at various stages of the treatment process. Key locations for pressure monitoring include:

Feed Water Inlet: To ensure adequate pressure for system operation
Pre-filtration Stages: To detect filter fouling and schedule maintenance
High-Pressure Pump Discharge: To verify proper operating pressure for RO membranes
Membrane Feed and Concentrate: To calculate trans-membrane pressure and monitor membrane performance
Permeate Stream: To ensure product water meets pressure specifications

Advanced pressure sensors in BWRO systems often feature high accuracy, corrosion-resistant materials, and digital outputs for seamless integration with control systems.

Flow Meters: Quantifying System Dynamics

Accurate flow measurement is essential for monitoring system performance and calculating key parameters such as recovery rate and specific energy consumption. Flow meters are typically installed to measure:

Feed Water Flow: To track overall system throughput
Permeate Flow: To monitor product water production
Concentrate Flow: To calculate system recovery and detect membrane fouling

Modern BWRO systems often employ electromagnetic or ultrasonic flow meters, which offer high accuracy and reliability in challenging brackish water environments.

Water Quality Sensors: Ensuring Product Excellence

A suite of water quality sensors is crucial for verifying the performance of brackish water reverse osmosis systems and ensuring that the produced water meets required specifications. Key parameters monitored include:

Conductivity: Measured in both feed and permeate streams to calculate salt rejection efficiency
pH: Monitored to optimize chemical dosing and prevent membrane scaling
Oxidation-Reduction Potential (ORP): Used to detect the presence of oxidizing agents that could damage RO membranes
Turbidity: Measured in the feed water to assess pretreatment effectiveness
Total Dissolved Solids (TDS): Monitored in the product water to ensure it meets quality standards

These sensors often feature online, continuous monitoring capabilities, allowing for real-time adjustments to system parameters and rapid response to any deviations from optimal operating conditions.

Integration and Control: Harnessing Sensor Data

The true power of instrumentation in BWRO systems lies in the integration of sensor data with advanced control systems. Modern plants utilize programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems to:

Automate system operation based on real-time sensor feedback
Implement sophisticated control algorithms for optimizing energy efficiency and water quality
Generate comprehensive performance reports and trend analyses
Enable remote monitoring and control capabilities

By leveraging these advanced instrumentation and control capabilities, operators can maximize the efficiency and reliability of their brackish water reverse osmosis systems, ensuring consistent production of high-quality water while minimizing operational costs and environmental impact.

Conclusion

Understanding the key components of brackish water reverse osmosis systems is crucial for anyone involved in water treatment or considering implementing such a solution. From the essential multistage centrifugal pumps and membrane housings to the protective cartridge filter housings and advanced instrumentation, each element plays a vital role in ensuring efficient and reliable water purification.

For industries ranging from manufacturing and food & beverage to pharmaceuticals and electronics, as well as municipal water treatment plants and agricultural operations, investing in a high-quality BWRO system can significantly improve water quality and operational efficiency.
