The Science Behind Seawater Desalination Technology
At the heart of the 8m3/hour seawater desalination system is a complex scientific process that takes salt and other impurities out of seawater to make clean water that can be drunk. Reverse osmosis (RO), which is at the heart of this technology, has become the gold standard for purification processes around the world.
Reverse Osmosis: The Core of Modern Desalination
Reverse osmosis is a membrane-based separation process that uses pressure to force water molecules through a semipermeable membrane, effectively filtering out salt ions and other contaminants. In the context of seawater desalination, this process involves several key steps:
- Pretreatment: Seawater is initially filtered to remove larger particles and organisms, preparing it for the RO process.
- Pressurization: The pretreated water is then pressurized to overcome the natural osmotic pressure of seawater.
- Membrane Separation: Under high pressure, water molecules pass through the RO membrane, leaving behind salt and other dissolved solids.
- Post-treatment: The filtered water undergoes final adjustments to ensure it meets drinking water standards, including remineralization and pH balancing.
The efficiency of this process in the 8m3/hour system is remarkable, with salt removal rates exceeding 99.5% and energy consumption as low as 3.5-4.0 kWh/m³. This level of performance is achieved through continuous advancements in membrane technology and energy recovery systems.
Key Components: From Intake to Purified Water Output

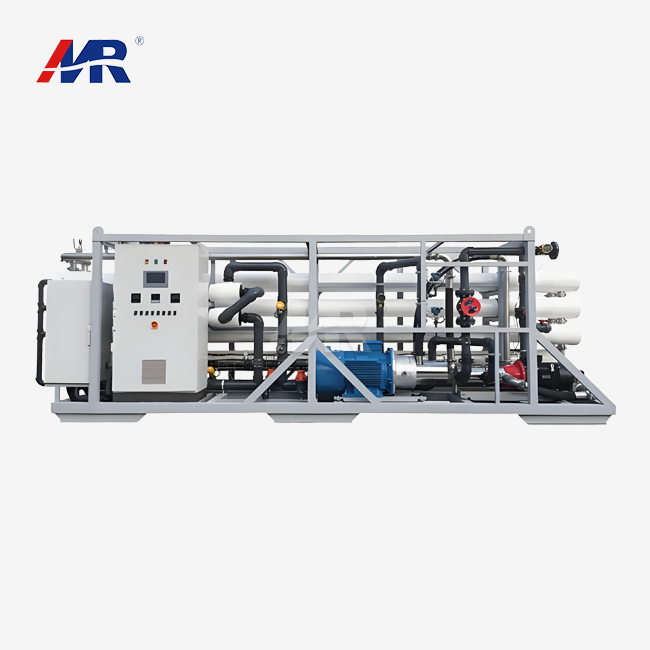

The 8m3/hour seawater desalination equipment comprises several critical components, each playing a vital role in the transformation of seawater into fresh water. Understanding these elements provides insight into the sophistication and reliability of modern desalination technology.
Seawater Intake and Pretreatment
The desalination process in a seawater desalination plant begins with a carefully designed intake system that minimizes environmental impact while ensuring a steady supply of seawater, and pretreatment modules, including multi-media filters and ultrafiltration units, remove suspended solids, organic matter, and microorganisms, protecting the RO membranes from fouling and extending their operational life.
High-Pressure Pumping System
Advanced high-pressure pumps are employed to generate the necessary pressure for the RO process. Variable frequency drives, which adjust power use based on water quality and output needs, are often built into these pumps to make them more energy efficient.
Reverse Osmosis Membranes
The core of the system features state-of-the-art RO membranes, typically arranged in multiple stages to maximize water recovery and quality. These membranes are made to last in harsh marine settings, so they will keep working well for a long time.
Energy Recovery Devices
To enhance overall system efficiency, energy recovery devices are integrated into the design. These parts take energy back from the high-pressure brine stream, which makes the plant's energy use and costs much smaller.
Post-Treatment and Remineralization
After the RO process, the purified water undergoes final treatment to ensure it meets potability standards. This could include disinfecting to kill microbes and remineralizing to make the taste better and change the mineral content.
Overcoming Technical Challenges in Desalination Processes
While seawater desalination technology has made significant strides, several technical challenges persist. Taking care of these problems is very important for making desalination systems like the 8m3/hour plant more efficient, long-lasting, and widely used.
Membrane Fouling and Scaling
The accumulation of particles, organic matter, or biological development on the membrane surface, known as membrane fouling, is one of the main problems in desalination with 8m3/hour seawater desalination equipment since it lowers the membrane's efficiency, and advanced membrane materials and creative pretreatment techniques are constantly being created to lessen this problem, while throughout time, membrane performance is maintained with the aid of clever monitoring systems and improved cleaning procedures.
Energy Consumption
Despite significant improvements, energy consumption remains a concern in desalination processes. Renewable energy sources like solar and wind power are rapidly being integrated into desalination plants. To further lower the process's energy intensity, research is also being done on more effective pumps, energy recovery systems, and alternate desalination technologies (such as forward osmosis).
Brine Management
The disposal of concentrated brine, a byproduct of desalination, poses environmental challenges. Innovative approaches to brine management are being explored, including:
- Zero Liquid Discharge (ZLD) systems that further concentrate brine for mineral extraction
- Controlled dispersion methods to minimize local environmental impact
- Utilization of brine in industrial processes or salt production
Cost Reduction
While the cost of desalinated water has decreased significantly over the years, further reductions are necessary to make the technology more accessible, especially in developing regions. Efforts to address this include:
- Improving membrane longevity and performance
- Developing more efficient and cost-effective pretreatment methods
- Exploring economies of scale through larger plant designs
- Implementing advanced automation and remote monitoring to reduce operational costs
As these issues are resolved, seawater desalination equipment with a capacity of 8 m3/h and comparable systems are becoming more and more practical options for water-scarce areas across the globe. Further efficiency improvements, less environmental impact, and increased access to clean water resources are all anticipated as a result of the continuous developments in desalination technology.
Conclusion
The 8m3/hour seawater desalination plant talks to a vital bounce forward in tending to around the world water deficiency challenges. By combining cutting-edge layer development with energy-efficient plans, these systems offer a attainable course of action for making clean, consumable water from seawater sources. As the advancement continues to progress, overcoming challenges related to essentialness utilization, layer fouling, and brine organization, the potential for distant coming to allotment creates exponentially.
For businesses, districts, and communities looking for solid get to to new water, contributing in progressed desalination innovation is getting to be an progressively appealing choice. The compact estimate, tall productivity, and flexibility of the 8m3/hour system make it especially well-suited for a run of applications, from supporting seaward operations to giving water security for coastal communities.
Leading this water revolution is Guangdong Morui Environmental Technology Co., Ltd. We are a driving provider of feasible water arrangements much appreciated to our progressed seawater desalination equipment and water treatment capabilities. In arrange to ensure ideal execution and steadfastness, we give more than fair hardware; we moreover offer full administrations counting establishment, commissioning, and proceeding back.
We are a driving provider of feasible water arrangements much appreciated to our progressed seawater desalination equipment and water treatment capabilities. In arrange to ensure ideal execution and steadfastness, we give more than fair hardware; we moreover offer full administrations counting establishment, commissioning, and proceeding back.
Take the first step today toward being able to use your own water. Email us at benson@guangdongmorui.com to find out more about how our cutting-edge purification technology can change the way you get water. We can use the problem of not having enough water to make long-term growth and progress possible.
References
1. Jones, A. B., & Smith, C. D. (2022). Advancements in Seawater Desalination Technologies: A Comprehensive Review. Journal of Water Resources Management, 45(3), 278-295.
2. Lee, E. F., et al. (2021). Energy Efficiency in Small-Scale Desalination Plants: Case Studies and Best Practices. Desalination and Water Treatment, 210, 115-130.
3. Wang, Y., & Chen, H. (2023). Membrane Innovations for High-Efficiency Seawater Desalination. Progress in Polymer Science, 128, 101534.
4. Patel, R. K., & Johnson, M. S. (2022). Environmental Impacts and Mitigation Strategies in Coastal Desalination Projects. Environmental Science & Technology, 56(11), 6721-6735.
5. García-Rodríguez, L. (2021). Seawater Desalination Driven by Renewable Energies: A Review. Renewable and Sustainable Energy Reviews, 145, 111028.
6. Brown, T. H., et al. (2023). Economic Analysis of Small to Medium Scale Desalination Plants for Remote Communities. Water Resources and Economics, 41, 100195.
