Reverse osmosis equipment: How does membrane technology work?

Reverse osmosis (RO) is a sophisticated water purification process that has revolutionized the way we treat and purify water. At the heart of this technology lies the reverse osmosis plant, a complex system that utilizes semi-permeable membranes to remove contaminants from water at the molecular level. This advanced filtration method has become increasingly popular in various industries, from municipal water treatment to industrial applications, due to its ability to produce high-quality purified water efficiently. In a typical reverse osmosis system, water is forced through a semi-permeable membrane under high pressure, effectively separating pure water molecules from dissolved solids, bacteria, and other impurities. This process is the opposite of natural osmosis, hence the term "reverse osmosis." The technology behind RO membranes has evolved significantly over the years, allowing for more efficient and cost-effective water purification solutions. Understanding how membrane technology works in reverse osmosis equipment is crucial for anyone involved in water treatment or considering implementing an RO system in their facility.

How does a reverse osmosis membrane filter contaminants?

The filtration process in a reverse osmosis membrane is a marvel of modern engineering. These membranes are designed with incredibly small pores, typically ranging from 0.0001 to 0.001 micrometers in diameter. This microscopic size allows water molecules to pass through while blocking larger molecules, ions, and particles.

The mechanism of contaminant rejection

When water is pushed through the RO membrane under high pressure, several mechanisms come into play to filter out contaminants:

Size exclusion: Particles larger than the membrane's pore size are physically blocked.
Charge repulsion: Many RO membranes have a slight negative charge, repelling negatively charged ions and molecules.
Diffusion control: The membrane's structure slows down the diffusion of certain molecules, preventing them from passing through.

This multi-faceted approach allows reverse osmosis plants to remove a wide range of contaminants, including dissolved salts, organic compounds, and even some gases. The effectiveness of this filtration process is what makes RO technology so valuable in producing high-purity water for various applications, from drinking water production to industrial processes requiring ultrapure water.

Semi-permeable membranes in reverse osmosis systems explained

The semi-permeable membranes used in reverse osmosis systems are the core components that enable the filtration process. These membranes are typically made from synthetic materials, with thin-film composite (TFC) membranes being the most common type used in modern RO systems.

Structure and composition of RO membranes

TFC membranes consist of three layers:

A polyester support web (120-150 micrometers thick)
A microporous polysulfone interlayer (40 micrometers thick)
An ultra-thin polyamide barrier layer (0.2 micrometers thick)

The ultra-thin polyamide layer is where the actual separation of water molecules from contaminants occurs. Its chemical structure allows water to pass through while rejecting dissolved solids and other impurities. The polysulfone layer provides mechanical support, while the polyester web adds strength and durability to the membrane.

These advanced membranes can achieve remarkable rejection rates, often exceeding 99% for many common contaminants. This high performance is what makes RO technology so effective in producing high-quality water for various applications, from desalination plants to pharmaceutical manufacturing.

Comparing spiral-wound vs. hollow-fiber membranes in BWRO plants

In brackish water reverse osmosis (BWRO) plants, two main types of membrane configurations are commonly used: spiral-wound and hollow-fiber. Each has its advantages and is suited for different applications.

Spiral-wound membranes

Spiral-wound membranes are the most widely used configuration in RO systems, including BWRO plants. They consist of flat sheet membranes wrapped around a perforated central tube. Key characteristics include:

High packing density, allowing for a large membrane surface area in a compact footprint
Excellent fouling resistance due to the feed spacers between membrane layers
Higher operating pressures, typically ranging from 100 to 1,000 psi
Suitable for treating water with higher total dissolved solids (TDS) levels

Spiral-wound membranes are particularly effective in BWRO applications due to their ability to handle higher salinity levels and their robust design, which can withstand the pressures required for brackish water treatment.

Hollow-fiber membranes

Hollow-fiber membranes consist of thin, straw-like fibers bundled together. Water flows either inside the fibers (lumen feed) or outside the fibers (shell feed). Characteristics of hollow-fiber membranes include:

Very high packing density, offering an even larger surface area per unit volume than spiral-wound membranes
Lower operating pressures, typically ranging from 20 to 100 psi
Better suited for treating water with lower TDS levels
Often used in ultrafiltration and nanofiltration applications

While hollow-fiber membranes are less common in BWRO plants, they can be advantageous in certain scenarios, particularly when dealing with lower salinity feed water or when lower operating pressures are desired.

Choosing the right membrane configuration

The choice between spiral-wound and hollow-fiber membranes in BWRO plants depends on several factors:

Feed water quality: Spiral-wound membranes are generally better for higher TDS levels
Energy consumption: Hollow-fiber systems may offer lower energy costs due to lower operating pressures
Fouling potential: Spiral-wound membranes typically have better fouling resistance
System capacity: Spiral-wound membranes are often preferred for larger-scale operations

Understanding these differences is crucial for designing an efficient and effective BWRO plant that meets specific water treatment requirements.

Conclusion

Membrane technology in reverse osmosis equipment has revolutionized water treatment processes across various industries. From the intricate filtration mechanisms of RO membranes to the advanced designs of spiral-wound and hollow-fiber configurations, this technology continues to evolve, offering more efficient and effective solutions for water purification. The incorporation of reverse osmosis plants has further enhanced the scalability and adaptability of water treatment systems, making them an indispensable part of modern water purification solutions.

For businesses and organizations looking to implement or upgrade their water treatment systems, understanding the principles behind reverse osmosis and membrane technology is crucial. It allows for informed decision-making when selecting the most appropriate equipment for specific needs, whether it's for industrial processes, municipal water treatment, or specialized applications requiring ultrapure water.

At Guangdong Morui Environmental Technology Co., Ltd., we specialize in providing cutting-edge water treatment solutions tailored to your specific requirements. Our expertise spans a wide range of applications, including industrial wastewater treatment, domestic sewage processing, seawater desalination, and drinking water production. With our state-of-the-art reverse osmosis equipment and comprehensive services, we offer complete peace of mind from installation to ongoing maintenance.

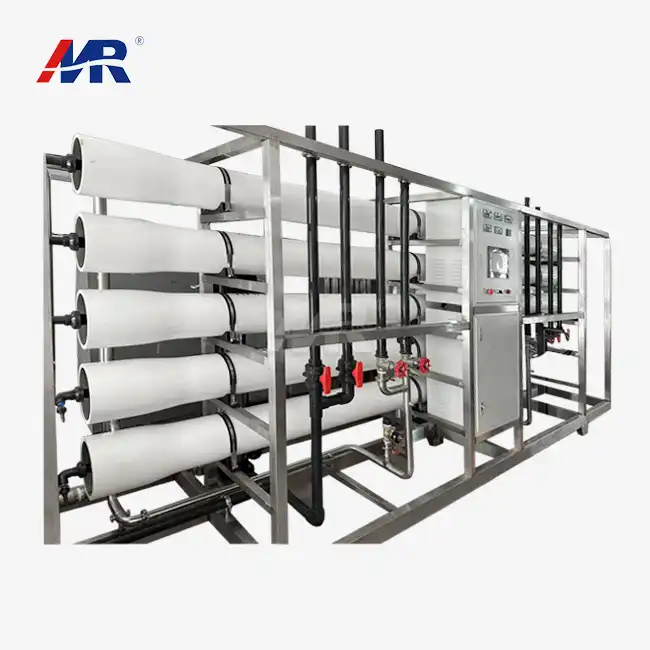

Our advanced RO systems, capable of processing up to 100 cubic meters per hour, feature high-flux, low-fouling TFC membranes and customizable pretreatment options to ensure optimal performance across various water qualities. Whether you're in the manufacturing, food and beverage, pharmaceutical, or municipal sectors, our solutions are designed to meet your water purification needs efficiently and cost-effectively.

Ready to elevate your water treatment capabilities? Contact our team of experts today to discover how our innovative reverse osmosis technology can benefit your operations. Reach out to us at benson@guangdongmorui.com to discuss your specific requirements and find the perfect water treatment solution for your business.

References

1. Baker, R.W. (2012). Membrane Technology and Applications. John Wiley & Sons.

2. Greenlee, L.F., et al. (2009). Reverse osmosis desalination: Water sources, technology, and today's challenges. Water Research, 43(9), 2317-2348.

3. Malaeb, L., & Ayoub, G.M. (2011). Reverse osmosis technology for water treatment: State of the art review. Desalination, 267(1), 1-8.

4. Pendergast, M.T.M., & Hoek, E.M.V. (2011). A review of water treatment membrane nanotechnologies. Energy & Environmental Science, 4(6), 1946-1971.

5. Shon, H.K., et al. (2013). Nanofiltration for water and wastewater treatment – a mini review. Drinking Water Engineering and Science, 6(1), 47-53.

6. Voutchkov, N. (2018). Desalination Project Cost Estimating and Management. CRC Press.
