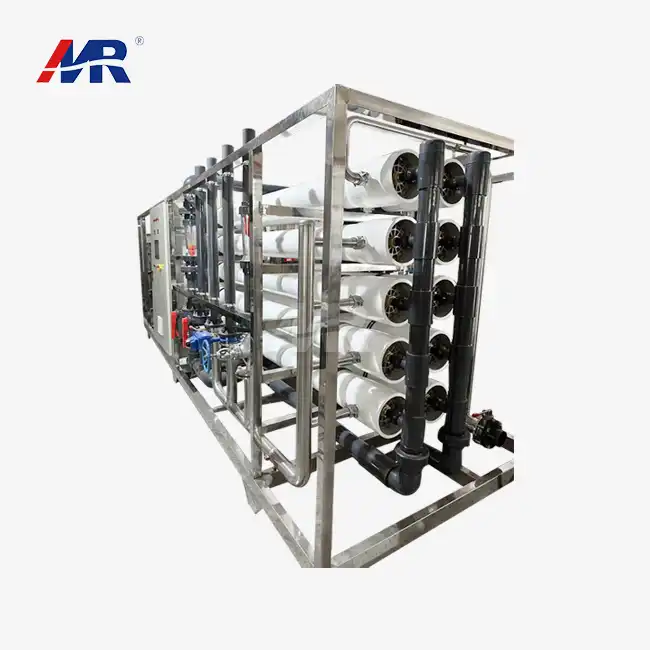

Pharmaceutical-grade reverse osmosis equipment

Pharmaceutical-grade reverse osmosis equipment plays a crucial role in the production of high-quality medications and biotechnology products. These sophisticated reverse osmosis systems are specifically designed to meet the stringent water purity requirements of the pharmaceutical industry. A state-of-the-art reverse osmosis plant removes contaminants, impurities, and microorganisms from water, ensuring that it meets or exceeds regulatory standards for use in drug manufacturing processes. The pharmaceutical industry relies heavily on ultra-pure water for various applications, including drug formulation, equipment cleaning, and sterilization processes. A well-designed pharmaceutical-grade RO system can effectively remove up to 99% of dissolved solids, organic compounds, and microorganisms from water sources. This level of purification is essential for maintaining product quality, consistency, and safety in pharmaceutical manufacturing. Modern pharmaceutical-grade reverse osmosis equipment often incorporates advanced features such as automated monitoring systems, multiple filtration stages, and sanitization capabilities. These innovations ensure consistent water quality and minimize the risk of contamination throughout the production process. As water purity standards in the pharmaceutical industry continue to evolve, manufacturers are increasingly turning to cutting-edge RO technology to meet these demanding requirements.

USP Standards for Water Purity in Pharma RO Plants

The United States Pharmacopeia (USP) sets strict standards for water purity in pharmaceutical manufacturing. These standards are crucial for ensuring the safety and efficacy of medications produced using purified water. Pharmaceutical-grade BWRO plants (Brackish Water Reverse Osmosis) must adhere to these rigorous guidelines to maintain compliance and product quality.

Key USP Water Purity Standards for Pharmaceutical Manufacturing

USP standards for water purity in pharmaceutical manufacturing encompass several critical parameters:

Total Organic Carbon (TOC): The maximum allowable TOC content is typically 500 ppb for purified water and 100 ppb for water for injection (WFI).
Conductivity: Purified water must have a conductivity of less than 1.3 μS/cm at 25°C, while WFI should not exceed 1.1 μS/cm.
Microbial contamination: The total viable aerobic count should not exceed 100 CFU/mL for purified water and 10 CFU/100 mL for WFI.
Endotoxin levels: WFI must contain less than 0.25 EU/mL of bacterial endotoxins.

To meet these exacting standards, pharmaceutical RO plants often incorporate multiple purification stages, including pretreatment, reverse osmosis, electrodeionization (EDI), and ultraviolet (UV) disinfection. This multi-barrier approach ensures that the final water quality consistently meets or exceeds USP requirements.

Why Endotoxin-free Membranes are Critical for Medical RO Systems

Endotoxins, also known as lipopolysaccharides (LPS), are heat-stable components of the outer cell membrane of gram-negative bacteria. These molecules can cause severe immune responses in humans, even in minute quantities. In pharmaceutical manufacturing, the presence of endotoxins in water used for drug production can lead to product contamination and potentially harmful effects on patients.

The Importance of Endotoxin Removal in Pharmaceutical Water Purification

Endotoxin-free membranes are essential components of medical RO systems for several reasons:

Patient safety: Endotoxins can cause fever, inflammation, and other adverse reactions in patients if present in injectable medications or medical devices.
Regulatory compliance: Health authorities worldwide mandate strict limits on endotoxin levels in pharmaceutical-grade water and final drug products.
Product quality: Endotoxin contamination can affect the stability, efficacy, and shelf life of pharmaceutical products.
Process integrity: Endotoxins can interfere with various manufacturing processes and quality control tests.

High-quality reverse osmosis systems designed for pharmaceutical use incorporate specialized membranes that effectively remove endotoxins along with other contaminants. These membranes are typically made from materials such as polyethersulfone (PES) or polyvinylidene fluoride (PVDF), which have excellent endotoxin retention properties.

To ensure the ongoing effectiveness of endotoxin removal, pharmaceutical manufacturers must implement rigorous membrane cleaning and sanitization protocols. Regular monitoring of endotoxin levels in the purified water is also crucial to maintain compliance with regulatory standards and ensure product safety.

RO vs. Distillation in Drug Manufacturing: Which is Better?

Both reverse osmosis and distillation are widely used water purification methods in the pharmaceutical industry. Each technique has its advantages and limitations, and the choice between the two often depends on specific manufacturing requirements, energy considerations, and regulatory compliance needs.

Comparing Reverse Osmosis and Distillation for Pharmaceutical Water Purification

Let's examine the key factors that influence the choice between RO and distillation in drug manufacturing:

Energy efficiency: Reverse osmosis plants generally consume less energy than distillation systems, making them more cost-effective for large-scale operations.
Water quality: Both methods can produce high-purity water, but distillation may have a slight edge in removing certain volatile organic compounds.
Operational flexibility: RO systems are typically more adaptable to variations in feed water quality and can be easily scaled up or down.
Maintenance requirements: Distillation systems often require more frequent maintenance due to scaling and corrosion issues.
Space considerations: Reverse osmosis systems usually have a smaller footprint compared to distillation units of similar capacity.
Regulatory acceptance: While both methods are accepted by regulatory authorities, distillation is sometimes preferred for producing water for injection (WFI) in certain regions.

In many cases, pharmaceutical manufacturers opt for a hybrid approach, combining reverse osmosis with other purification technologies such as electrodeionization (EDI) or ultrafiltration. This multi-step process allows for optimal water quality while maximizing energy efficiency and operational flexibility.

When selecting between RO and distillation, pharmaceutical companies must carefully evaluate their specific production needs, regulatory requirements, and long-term operational costs. Consulting with experienced water purification experts can help in making an informed decision that aligns with the company's manufacturing goals and quality standards.

Conclusion

Pharmaceutical-grade reverse osmosis plant equipment plays a vital role in ensuring the purity and safety of water used in drug manufacturing. By adhering to stringent USP standards, implementing endotoxin-free membranes, and carefully weighing the benefits of RO against alternative purification methods, pharmaceutical companies can maintain the highest levels of product quality and regulatory compliance.

Are you looking for a reliable and efficient pharmaceutical-grade reverse osmosis solution for your drug manufacturing facility? Look no further than Guangdong Morui Environmental Technology Co., Ltd. Our cutting-edge RO systems are designed to meet the diverse needs of the pharmaceutical industry, from water treatment to manufacturing processes. With our advanced technology and commitment to excellence, we deliver dependable, efficient, and customizable solutions for your water purification needs.

Contact us today at benson@guangdongmorui.com to learn more about our pharmaceutical-grade reverse osmosis equipment and how we can help optimize your drug manufacturing processes.

References

1. United States Pharmacopeia and National Formulary (USP-NF). "Water for Pharmaceutical Purposes." USP General Chapter <1231>.

2. American Society for Testing and Materials (ASTM). "Standard Guide for Selection of Water Purification Technologies for Pharmaceutical and Biotechnology Applications." ASTM E2500-13.

3. European Medicines Agency (EMA). "Note for Guidance on Quality of Water for Pharmaceutical Use." CPMP/QWP/158/01 revision.

4. World Health Organization (WHO). "Water for Pharmaceutical Use." In: WHO Good Manufacturing Practices: Water for Pharmaceutical Use. Technical Report Series, No. 970, Annex 2.

5. Pharmaceutical Engineering. "Comparison of Reverse Osmosis and Distillation for WFI Production." Vol. 35, No. 4.

6. Journal of Membrane Science. "Advances in Membrane Technology for Pharmaceutical-Grade Water Production." Vol. 587.
