Configuration Types: Submerged vs. External MBRs
The configuration of an MBR system significantly influences its performance and operational characteristics. Two primary configurations exist: submerged and external MBRs.
Submerged MBR Configuration

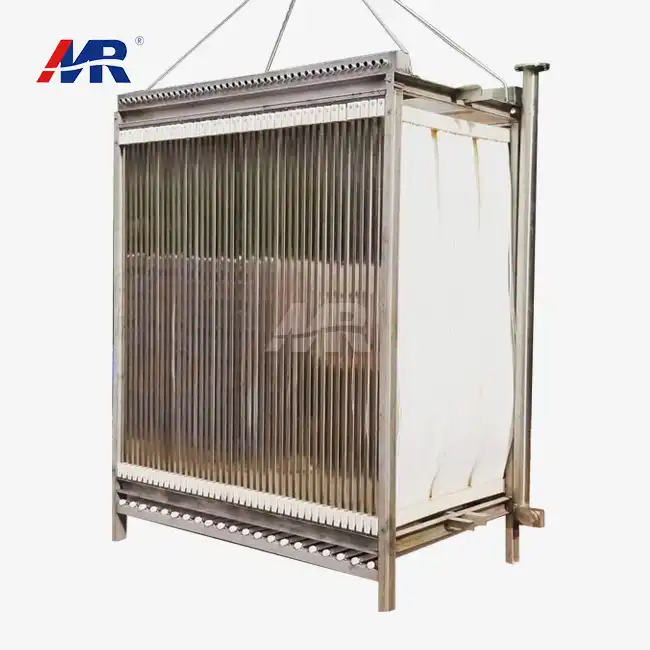

In a submerged MBR setup, the membrane bioreactor modules are immersed directly in the biological treatment tank. This configuration offers several advantages:
- Compact footprint: Ideal for space-constrained installations
- Lower energy consumption: Reduced pumping requirements
- Simplified operation: Integrated design facilitates easier management
However, submerged systems may face challenges such as membrane fouling due to direct exposure to mixed liquor suspended solids (MLSS).
External MBR Configuration
External MBR systems house the membrane modules in a separate tank, outside the biological reactor. This configuration presents its own set of benefits:
- Enhanced membrane cleaning: Easier access for maintenance
- Flexible operation: Independent control of biological and filtration processes
- Higher flux rates: Potential for increased throughput
The trade-off for external configurations often includes higher energy costs and a larger overall footprint.
Selecting between submerged and outside arrangements depends on different components, counting accessible space, vitality contemplations, and particular treatment necessities. Each sort has its merits, and the choice eventually pivots on the one of a kind needs of the office and the characteristics of the wastewater being treated.
Operational Parameters: Optimizing Performance Factors
Optimizing the performance of an MBR system requires careful attention to several key operational parameters. These factors not only affect the quality of the treated effluent but also impact the system's energy efficiency and long-term sustainability.
Mixed Liquor Suspended Solids (MLSS) Concentration
MLSS concentration is a critical parameter in MBR operation. Typically, MBR systems operate at higher MLSS concentrations compared to conventional activated sludge processes. Optimal MLSS levels range from 8,000 to 12,000 mg/L, allowing for:
- Enhanced biological treatment efficiency
- Reduced reactor volume requirements
- Improved sludge settleability
However, excessively high MLSS concentrations can lead to increased membrane fouling and higher energy consumption for aeration and pumping.
Hydraulic Retention Time (HRT) and Solids Retention Time (SRT)
HRT and SRT are interconnected parameters that significantly influence MBR performance:
- HRT: Typically ranges from 4 to 8 hours, affecting the contact time between microorganisms and wastewater
- SRT: Usually maintained between 15 to 30 days, impacting biomass characteristics and nutrient removal efficiency
Balancing these parameters is crucial for achieving optimal biological treatment and managing membrane fouling propensity.
Membrane Flux and Transmembrane Pressure (TMP)
The MBR membrane module performance is directly linked to flux rates and TMP:
- Flux: Typically ranges from 10 to 25 LMH (liters per square meter per hour)
- TMP: Monitored to assess membrane fouling and cleaning requirements
Maintaining appropriate flux rates while managing TMP is essential for sustainable long-term operation and minimizing energy consumption.
Aeration Strategy
Effective aeration is crucial in MBR systems for both biological treatment and membrane scouring:
- Process aeration: Provides oxygen for biological processes
- Membrane scouring: Helps control fouling by creating shear forces at the membrane surface
Optimizing aeration strategies can significantly reduce energy costs while maintaining system performance.
By carefully managing these operational parameters, MBR operators can achieve superior effluent quality, minimize energy consumption, and extend membrane life, ultimately leading to more efficient and cost-effective wastewater treatment.
Maintenance Protocols: Ensuring Long-Term Efficiency
Implementing robust maintenance protocols is crucial for preserving the long-term efficiency and reliability of membrane bioreactor systems. Proper maintenance not only extends the lifespan of the MBR membrane but also ensures consistent performance and minimizes operational disruptions.
Regular Membrane Cleaning
Membrane cleaning is a cornerstone of MBR maintenance. It typically involves two main approaches:
- Physical cleaning: Includes backwashing and relaxation cycles to remove reversible fouling
- Chemical cleaning: Periodic use of cleaning agents to address more persistent fouling
The frequency and intensity of cleaning procedures depend on the specific membrane characteristics, influent quality, and operational conditions. Developing a tailored cleaning regimen is essential for maintaining optimal flux rates and preventing irreversible fouling.
Monitoring and Data Analysis
Continuous monitoring of key parameters is vital for proactive maintenance:
- Transmembrane pressure (TMP)
- Permeate quality
- Mixed liquor characteristics
- Energy consumption
Advanced monitoring systems and data analysis tools can help identify trends, predict potential issues, and optimize maintenance schedules. This data-driven approach allows operators to intervene before minor problems escalate into major operational challenges.
Preventive Maintenance Schedule
Implementing a comprehensive preventive maintenance schedule is crucial for ensuring the longevity of MBR systems. Key components of such a schedule include:
- Regular inspection of membrane integrity
- Maintenance of aeration systems
- Calibration of sensors and instrumentation
- Scheduled replacement of wear parts
By adhering to a well-designed preventive maintenance plan, operators can minimize unexpected downtime and extend the useful life of the MBR system.
Operator Training and Standard Operating Procedures (SOPs)
The human element plays a critical role in maintaining MBR efficiency. Investing in operator training and developing clear SOPs ensures:
- Consistent operational practices
- Proper response to system alarms and abnormalities
- Effective troubleshooting and problem-solving
Well-trained operators equipped with comprehensive SOPs can significantly contribute to the smooth operation and longevity of MBR systems.
By implementing these maintenance protocols, MBR operators can ensure their systems continue to deliver high-quality effluent while minimizing operational costs and maximizing the lifespan of critical components like the membrane modules.
Conclusion
The plan and operation of layer bioreactor frameworks speak to a critical headway in wastewater treatment innovation. By carefully considering setup sorts, optimizing operational parameters, and executing strong upkeep conventions, administrators can saddle the full potential of MBR frameworks. These progressed treatment arrangements offer prevalent gushing quality, diminished impression, and improved adaptability compared to customary treatment strategies. As water shortage and natural directions gotten to be progressively rigid, the part of MBR innovation in giving economical water administration arrangements will as it were develop in importance.
FAQ
1. What are the primary advantages of using MBR technology?
MBR technology offers several key benefits, including superior effluent quality, smaller footprint compared to conventional systems, reduced sludge production, and the ability to handle high organic loads. The integration of biological treatment with membrane filtration results in highly efficient removal of contaminants, making the treated water suitable for reuse in many applications.
2. How does the pore size of MBR membranes affect treatment efficiency?
The typical pore size of MBR membranes, around 0.04 microns, allows for effective removal of suspended solids, bacteria, and even some viruses. This ultrafiltration capability ensures high-quality effluent that often meets or exceeds regulatory standards without the need for additional tertiary treatment steps.
3. What factors influence the choice between submerged and external MBR configurations?
The decision between submerged and external MBR configurations depends on factors such as available space, energy costs, maintenance accessibility, and specific treatment requirements. Submerged systems generally offer a smaller footprint and lower energy consumption, while external systems provide easier access for maintenance and potentially higher flux rates.
4. How can operators minimize membrane fouling in MBR systems?
Minimizing membrane fouling involves a multi-faceted approach, including optimizing operational parameters like MLSS concentration and aeration, implementing effective cleaning protocols, and ensuring proper pretreatment of influent. Regular monitoring of transmembrane pressure and permeate quality can also help in early detection and prevention of fouling issues.
