Materials and corrosion control for marine RO systems?

The effectiveness and life of marine reverse osmosis (RO) systems, especially in seawater desalination plants, depend heavily on corrosion control. With saltwater, high pressure, and chemical treatments, these sites work in harsh conditions that make corrosion very likely. To ensure the dependability and efficiency of seawater desalination systems, effective material selection and corrosion control methods are crucial. To make sure that key parts last much longer, cost less to maintain, and keep producing water consistently, operators must use the right corrosion management techniques. It talks about the most important things engineers, plant managers, and people who make decisions in the desalination business should think about when choosing materials, taking precautions, and coming up with plans to stop corrosion in marine RO systems.

Selecting Corrosion-Resistant Materials: Duplex Steel and GRP for Marine Environments

The selection of appropriate materials is paramount in designing and constructing durable SWRO plants. Two materials that have gained prominence in marine RO applications are duplex stainless steel and glass-reinforced plastic (GRP).

Duplex Stainless Steel: A Robust Solution for High-Pressure Components

For high-pressure parts in seawater desalination systems, duplex stainless steel has become the best option. This alloy is strong like ferritic steels but doesn't rust like austenitic grades. It has a good balance of properties that make it perfect for marine settings. Key advantages include:

• Enhanced resistance to chloride-induced stress corrosion cracking
• Superior mechanical strength, allowing for thinner wall sections and weight reduction
• Improved resistance to pitting and crevice corrosion
• Cost-effectiveness compared to higher-grade stainless steels

Duplex grades like 2205 (UNS S32205) and 2507 (UNS S32750) are often used in the pressure tanks, pipes, and valves of SWRO systems because they work well in harsh salty conditions.

Glass-Reinforced Plastic (GRP): Versatile and Corrosion-Resistant

GRP, which is also called fiberglass-reinforced plastic (FRP), is a great option to metals in parts of desalination plants that aren't as important. Its inherent corrosion resistance and lightweight nature make it suitable for various applications, including:

• Low-pressure piping systems
• Storage tanks and vessels
• Structural components and support systems
• Intake screens and outfall diffusers

GRP components can be engineered to withstand specific environmental conditions, offering customized solutions for different parts of the desalination process, and the material's low thermal conductivity also provides energy efficiency benefits, reducing heat loss in piping systems, especially from a seawater desalination plants manufacturer.

Protective Coatings and Cathodic Protection for Intake and Outfall Pipes

While material selection forms the foundation of corrosion control, additional protective measures are often necessary to ensure the longevity of marine RO system components, particularly for intake and outfall pipes exposed to seawater.

Advanced Protective Coatings for Marine Applications

Protective coatings serve as a barrier between the underlying material and the corrosive environment. For marine RO systems, specialized coatings have been developed to withstand the challenges of seawater exposure:

• Epoxy-based coatings: Offer excellent adhesion and chemical resistance
• Polyurethane coatings: Provide superior UV resistance and flexibility
• Ceramic-filled epoxies: Enhance abrasion resistance in high-flow areas
• Fluoropolymer coatings: Deliver exceptional chemical resistance and low surface energy to prevent fouling

These coatings are typically applied in multiple layers, with each layer serving a specific purpose in the protection system. Proper surface preparation and application techniques are crucial to ensure coating performance and longevity.

Cathodic Protection: An Active Approach to Corrosion Prevention

Cathodic protection (CP) is an electrochemical technique used to prevent corrosion of metallic structures in contact with electrolytes, such as seawater. In seawater desalination plants, CP systems are commonly employed to protect intake and outfall pipes, as well as other submerged metallic components. Two primary methods of cathodic protection are used:

• Impressed Current Cathodic Protection (ICCP): This system uses an external power source to apply a protective current to the structure, offering precise control and the ability to protect large areas.
• Sacrificial Anode Cathodic Protection: This method utilizes sacrificial anodes made of more electronegative metals (such as zinc or aluminum) that corrode preferentially, protecting the main structure.

The choice between ICCP and sacrificial anode systems depends on factors such as the size of the protected area, expected lifespan, and maintenance requirements. Often, a combination of protective coatings and cathodic protection is employed to provide comprehensive corrosion control for critical components in marine RO systems.

How to prevent biofouling and microbiologically influenced corrosion (MIC)?

Biofouling and microbiologically influenced corrosion (MIC) pose significant challenges to the operation and maintenance of seawater desalination systems. These biological processes can lead to reduced efficiency, increased energy consumption, and accelerated corrosion of system components. Implementing effective strategies to prevent biofouling and MIC is crucial for maintaining the performance and longevity of marine RO plants.

Advanced Pretreatment Technologies

Effective pretreatment is the first line of defense against biofouling in SWRO systems. Advanced pretreatment technologies help remove organic matter and microorganisms that contribute to biofilm formation:

• Ultrafiltration (UF) membranes: Provide superior removal of suspended solids and microorganisms
• Dissolved air flotation (DAF): Effectively removes algae and organic matter during algal bloom events
• Media filtration with biocide-impregnated filter media: Offers continuous disinfection capabilities

Implementing a multi-barrier approach that combines these technologies can significantly reduce the biological load entering the RO system, minimizing the risk of biofouling.

Chemical Treatment Strategies

Chemical treatments play a crucial role in controlling biofouling and MIC in marine RO systems. A comprehensive chemical treatment program may include:

• Chlorination at the intake: Provides initial disinfection, but requires dechlorination before the RO membranes
• Non-oxidizing biocides: Offer targeted microbial control without damaging RO membranes
• Antiscalants with bio-dispersant properties: Prevent scale formation while disrupting biofilm development
• Periodic clean-in-place (CIP) procedures: Remove accumulated biofilms and restore system performance

The selection and dosing of chemicals must be carefully managed to ensure effective biofilm control without compromising membrane integrity or environmental compliance.

Innovative Surface Modifications and Materials

Emerging technologies in surface modification and materials science offer promising solutions for biofouling prevention:

• Anti-fouling coatings: Novel coatings with low surface energy or biocidal properties can inhibit biofilm attachment
• Membrane surface modifications: Hydrophilic or zwitterionic surface treatments can reduce organic adhesion to RO membranes
• Copper-nickel alloys: Used in intake piping to provide natural biofouling resistance in critical areas

When these new ideas are mixed with old ways of stopping problems, they can make marine RO systems much more resistant to biofouling and MIC.

Monitoring and Early Detection Systems

Implementing robust monitoring and early detection systems is crucial for effective biofouling and MIC management:

• Real-time biofilm monitors: Provide early warning of biofilm development in feed water systems
• ATP (Adenosine Triphosphate) analysis: Offers rapid assessment of microbial activity in process streams
• Membrane autopsy programs: Allow for periodic evaluation of membrane condition and fouling patterns

Achieving optimal performance and longevity for systems is possible with the help of these monitoring technologies, which allow operators to take targeted adjustments before biofouling or MIC issues become worse.

Conclusion

When designing seawater desalination plants, it's important to pick the right materials and keep corrosion under control so that marine RO systems work well. Carefully choosing the materials and using protective coatings, cathodic protection, and improved biofouling prevention methods can help operators make their desalination plants much more reliable and efficient. Knowing about the newest advances in materials science and rust control will help the desalination business stay ahead of the competition as technology changes.

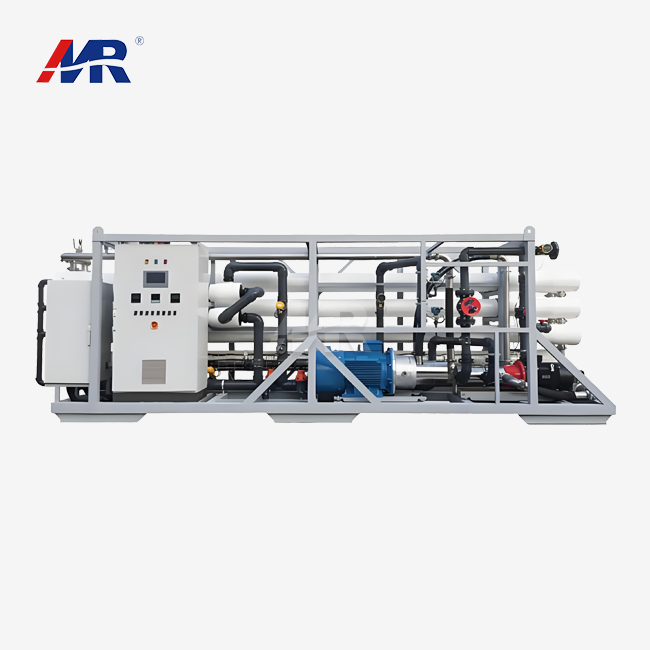

Want to improve your current SWRO plant or make your seawater desalination system work better? If you need new ways to treat water, you can trust Guangdong Morui Environmental Technology Co., Ltd. We are experts at treating wastewater from factories, desalinating seas, and making drinking water. For your peace of mind, we offer cutting-edge tools, full installation services, and the best customer service after the sale. We can make solutions that fit your needs because we have our own plant for making membranes and work with well-known brands. See the difference with our state-of-the-art 60m³/hour reverse osmosis plants, which are built to be reliable, efficient, and flexible. Don't let corrosion challenges hold you back – contact us today at benson@guangdongmorui.com to discover how we can elevate your water purification processes to new heights of performance and durability.

References

1. Voutchkov, N. (2018). Desalination Project Cost Estimating and Management. CRC Press.

2. Olsson, J., & Snis, M. (2017). Duplex - A new generation of stainless steels for desalination plants. Desalination, 205(1-3), 104-113.

3. Flemming, H. C., Sriyutha Murthy, P., Venkatesan, R., & Cooksey, K. (Eds.). (2019). Marine and Industrial Biofouling. Springer.

4. Tran, T., Bolto, B., Gray, S., Hoang, M., & Ostarcevic, E. (2016). An autopsy study of a fouled reverse osmosis membrane element used in a brackish water treatment plant. Water Research, 41(17), 3915-3923.

5. Matin, A., Khan, Z., Zaidi, S. M. J., & Boyce, M. C. (2017). Biofouling in reverse osmosis membranes for seawater desalination: Phenomena and prevention. Desalination, 281, 1-16.

6. Poulson, B. (2020). Electrochemical aspects of corrosion-control in marine environments. Corrosion Science, 62, 189-194.
