Layout, Installation Space, and Construction Guidelines for a 500m3/day reverse osmosis RO plant

Planning and actualizing a reverse osmosis system for a 500 m³/day capacity requires cautious planning and thought of different variables. This comprehensive guide will walk you through the basic perspectives of format, establishment space, and development rules for a 500 m³/day switch osmosis RO plant. Whether you're updating an existing office or building a modern one, understanding these vital components will guarantee ideal execution and proficiency of your water treatment system.

How much floor area and clearances does a 500m3/day RO plant require?

The floor range and clearances required for a 500m3/day RO plant depend on a few variables, including the particular hardware setup, pre-treatment necessities, and post-treatment forms. By and large, a plant of this capacity requires roughly 150-200 square meters of floor space. This range includes the primary RO slides, pre-treatment gear, pumps, control boards, and vital clearances for support and operation.

Key considerations for floor area allocation:

Main RO Slides: The primary RO slips regularly require 50–70 square meters of space. This region obliges the high-pressure pumps, film vessels, and related channeling. Giving satisfactory space guarantees appropriate establishment, permits for secure operation, and encourages support or future extensions without operational constraints.
Pre-Treatment Gear: Pre-treatment gear, such as media channels, actuated carbon units, water conditioners, and ultrafiltration frameworks, for the most part occupies 30–40 square meters. Adequate space is fundamental for establishment, adjusting, and standard checking, guaranteeing the RO bolster water is legitimately conditioned to secure films and keep up framework efficiency.
Post-Treatment and Capacity: Post-treatment and capacity zones ordinarily require 20–30 square meters. This space suits treated water tanks, dosing frameworks, and cleaning units, giving adequate room for establishment, operational access, and support exercises, while guaranteeing secure taking care of and distribution of decontaminated water.
Control Room and Electrical Boards: The control room and electrical boards ordinarily require 15–20 square meters. This space permits administrators to screen framework execution, oversee controls, and securely get to electrical and automation components, supporting productive operation and investigation of the RO plant.
Maintenance and Get to Zones: Support and get to regions, by and large require 35–40 square meters to permit secure development around hardware, encourage schedule reviews, and give space for repairs or replacement of components. Satisfactory guarantees operational unwavering quality and minimizes downtime amid upkeep activities.

Clearances play a pivotal part in guaranteeing secure and effective operation. A least 1-1.5 meters ought to be kept up around all hardware for simple accessamid upkeep and repairs. An overhead clearance of at least 3 meters is prescribed for reverse osmosis system establishments to guarantee adequate space for channeling, electrical conduits, and other fundamental frameworks. This clearance, moreover, encourages simple access for schedule upkeep, reviews, and potential hardware evacuation or substitution without disturbing the framework operation. Satisfactory vertical space makes a difference in anticipating clogs, permits for secure development of the workforce, and guarantees compliance with security guidelines. Arranging for legitimate overhead clearance amid office plan progresses operational productivity, diminishes upkeep challenges, and bolsters long-term unwavering quality of the RO plant.

Typical skid vs modular container layouts for 500m3/day RO installations

When planning a 500m3/day reverse osmosis plant, two primary layout options are available: skid-mounted systems and modular container installations. Each approach has its advantages and considerations, depending on the specific project requirements and site constraints.

Skid-mounted systems:

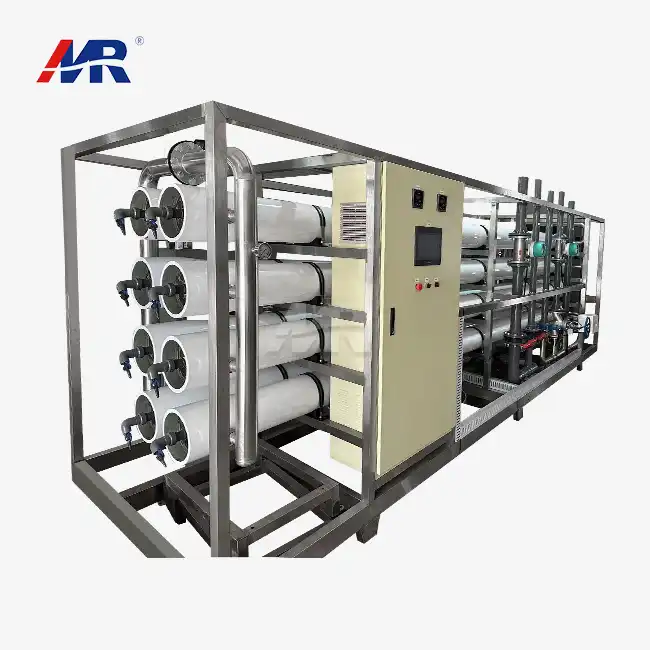

Skid-mounted RO systems are pre-assembled units that integrate all necessary components on a single frame or multiple interconnected frames. This configuration offers several benefits:

Compact footprint: Ideal for installations with limited floor space
Easier transportation and installation: Pre-assembled units can be quickly set up on-site
Flexibility in layout: Skids can be arranged to fit available space and optimize workflow
Scalability: Additional skids can be added to increase capacity as needed

However, skid-mounted systems may require more careful planning for maintenance access and future expansions.

Modular container layouts:

Modular container installations house the RO system and associated equipment within specially designed containers. This approach offers unique advantages:

Turnkey solution: Complete system delivered in a self-contained unit
Rapid deployment: Minimal on-site construction required
Weather protection: Built-in shelter for equipment in harsh environments
Mobility: Can be relocated if necessary
Standardized design: Simplified planning and permitting process

While measured holders offer great compactness, ease of establishment, and security for the reverse osmosis system, they can have impediments with respect to interior design flexibility and future development. Adjustments or capacity increments may require extra holders or overhaul, making it less versatile compared to purpose-built, on-site RO plant constructions.

Site preparation checklist: foundations, access, ventilation, and utilities

Proper site preparation is crucial for the successful implementation of a 500m3/day BWRO plant. This checklist covers essential aspects to consider during the construction and installation phase:

Foundations:

Conduct a geotechnical survey to assess soil conditions
Design and construct a reinforced concrete foundation capable of supporting the entire system's weight
Ensure proper leveling and vibration isolation for sensitive equipment
Incorporate drainage systems to prevent water accumulation

Access:

Plan-wide, unobstructed pathways for equipment delivery and installation
Design access points for routine maintenance and potential equipment replacement
Consider overhead clearance for cranes or lifting equipment during installation
Implement safety measures such as handrails, non-slip flooring, and proper lighting

Ventilation:

Calculate required air changes per hour based on equipment heat load and occupancy
Install appropriate HVAC systems to maintain optimal temperature and humidity levels
Ensure proper ventilation for areas with potential chemical fumes or high humidity
Consider noise reduction measures for ventilation equipment

Utilities:

Coordinate with local authorities for necessary permits and approvals
Ensure adequate electrical supply, including backup power systems if required
Plan for water supply and discharge connections, including any pre-treatment requirements
Install compressed air systems for pneumatic valves and instruments
Provide appropriate chemical storage and dosing facilities

By carefully considering these viewpoints of format, establishment space, and development rules, you can guarantee a smooth execution of your 500m3/day turn-around osmosis RO plant. Legitimate planning and execution are fundamental for planning and executing a turnaround osmosis framework that conveys ideal execution. By carefully evaluating feed-water quality, selecting reasonable pretreatment advances, and guaranteeing adjusted system measuring and establishment, you can accomplish a water treatment arrangement that is effective, solid, and custom-fitted to your operational requirements. This approach maximizes framework lifespan, minimizes support, and ensures reliable generation of high-purity water for your particular application.

Frequently Asked Questions

1. What are the key factors to consider when choosing between skid-mounted and modular container layouts for a 500m3/day RO plant?

When choosing between skid-mounted and secluded holder formats, consider variables such as accessible space, location availability, natural conditions, budget, and future extension plans. Skid-mounted frameworks offer more adaptability in format and simpler adaptability, whereas secluded holders give superior security and versatility. Evaluate your particular extent prerequisites and location limitations to decide the most appropriate option.

2. How can I optimize the layout of a 500m3/day RO plant to minimize its footprint?

To optimize the format and minimize impression, consider vertical integration of components, utilizing compact pre-treatment frameworks, actualizing proficient channeling plans, and utilizing space-saving advances like high-flux films. A cautious course of action of gear and vital arrangement of control boards can also help decrease the overall plant impression while keeping up vital clearances for operation and maintenance.

3. What are the most critical utilities to consider when preparing a site for a 500m3/day RO plant installation?

The most basic utilities for a 500m3/day RO plant establishment incorporate electrical control supply, water supply and release associations, compressed discuss systems, and chemical capacity systems. Guarantee satisfactory capacity and unwavering quality of these utilities to bolster the plant's operations. Furthermore, consider reinforcement control frameworks, legitimate seepage, and any particular necessities for pre-treatment or post-treatment forms in your utility planning.
