Microscopic Pores: The Secret Behind Ultrafiltration
The heart of ultrafiltration innovation lies in its minuscule pores, which frame the spine of its filtration capabilities. These modest openings, undetectable to the exposed eye, are the guardians that decide what passes through and what gets cleared out behind amid the water treatment process.
The Science of Selective Filtration

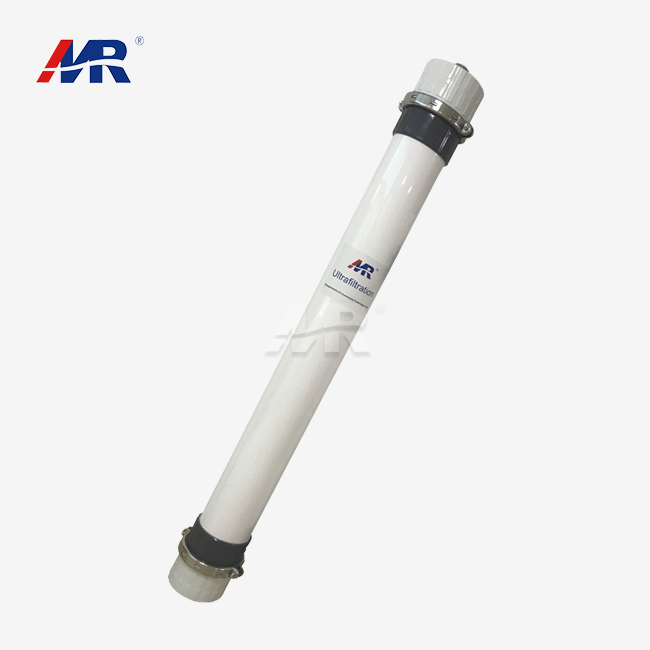

The hollow fiber ultrafiltration membrane used in these systems is a marvel of modern engineering. Typically made from materials like PVDF (Polyvinylidene fluoride), these membranes are designed with a specific pore size distribution. This carefully calibrated structure allows water molecules to pass through while effectively blocking larger particles, including:
- Suspended solids
- Colloids
- Bacteria
- Protozoa
- Some viruses
The pore size, ranging from 0.01 to 0.1 microns, is key to this selective filtration process. To put this into perspective, a human hair is about 50-100 microns in diameter, which means these pores are hundreds of times smaller.
The Role of Pressure in Ultrafiltration
The empty fiber ultrafiltration layer utilized in these frameworks is a wonder of cutting edge designing. Regularly made from materials like PVDF (Polyvinylidene fluoride), these layers are outlined with a particular pore estimate conveyance. This carefully calibrated structure permits water atoms to pass through whereas successfully blocking bigger particles, including:
From Turbid to Crystal Clear: Ultrafiltration in Action
The journey from turbid, contaminated water to crystal clear, purified water through ultrafiltration is a fascinating process that involves several key steps.
The Ultrafiltration Process: Step by Step
- Pre-treatment: Before reaching the ultrafiltration membrane, water undergoes initial screening to remove larger particles and debris. This step protects the membrane from damage and extends its lifespan.
- Ultrafiltration: The pre-treated water is then pushed through the UF membrane. As it passes through the microscopic pores, contaminants larger than the pore size are trapped, while water molecules and dissolved substances pass through.
- Backwashing: To maintain the efficiency of the system, periodic backwashing is performed. This involves reversing the flow of water to dislodge accumulated particles from the membrane surface.
- Chemical Cleaning: When necessary, chemical cleaning is performed to remove stubborn fouling and restore membrane performance.
- Post-treatment: Depending on the specific application, the ultrafiltered water may undergo additional treatment steps, such as disinfection or pH adjustment.
Membrane Performance and Efficiency
The efficiency of ultrafiltration membranes is often measured by their flux rate, which typically ranges from 40 to 100 L/m²/h. This high throughput, combined with excellent filtration capabilities, makes ultrafiltration an attractive option for various water treatment applications.
Ultrafiltration vs. Traditional Methods: A Comparative Analysis
When compared to traditional water treatment methods, ultrafiltration offers several distinct advantages that make it a preferred choice in many scenarios.
Advantages of Ultrafiltration
- Superior Filtration: Ultrafiltration can remove particles and microorganisms that might slip through conventional filtration methods.
- Chemical Reduction: The physical barrier provided by the membrane reduces the need for chemical treatments, leading to more environmentally friendly water treatment processes.
- Compact Design: Ultrafiltration systems typically have a smaller footprint compared to traditional treatment plants, making them suitable for areas with space constraints.
- Consistent Quality: Ultrafiltration produces water of consistent quality regardless of fluctuations in the influent water quality.
- Automation Potential: These systems can be easily automated, reducing the need for constant human intervention and improving operational efficiency.
Applications Across Industries
The versatility of ultrafiltration technology has led to its adoption across a wide range of industries:
- Municipal water treatment
- Food and beverage processing
- Pharmaceutical manufacturing
- Industrial wastewater reclamation
- Textile industry
- Power plant cooling systems
In each of these applications, ultrafiltration membrane systems provide a reliable, efficient, and cost-effective solution for water purification needs.
Conclusion
The Ultrafiltration Membrane frameworks speak to a noteworthy progression in water treatment innovation. By controlling the control of infinitesimal pores and progressed materials, these frameworks offer a prevalent alternative to conventional water treatment strategies. From guaranteeing the security of civil drinking water to empowering the reuse of mechanical wastewater, ultrafiltration plays a pivotal part in tending to worldwide water challenges.
As water shortage and quality concerns are developing around the world, the significance of effective and compelling water treatment arrangements cannot be exaggerated. Ultrafiltration layer frameworks, with their mix of tall execution, supportability, and flexibility, are well-positioned to meet these challenges head-on.
Are you looking to overhaul your water treatment forms or execute a modern framework? Guangdong Morui Natural Innovation Co., Ltd. is here to offer assistance. As pros in water treatment, we offer a comprehensive range of services, including mechanical wastewater treatment, residential sewage treatment, seawater desalination, and drinking water fabrication. Our ability amplifies from gear supply to one-stop establishment and commissioning services, guaranteeing you have a worry-free experience.
With our possess film generation plant and a few gear handling offices, we're interestingly situated to give customized arrangements that meet your particular needs. As authorized operators for legitimate brands in water treatment gear, we ensure top-quality items and services.
Don't let water quality issues hold your trade back. Contact us nowadays at benson@guangdongmorui.com to find out how our ultrafiltration film frameworks can revolutionize your water treatment forms. Let's work together towards a future of clean, feasible water use.
References
1. Johnson, A. R., & Smith, B. T. (2021). Advances in Ultrafiltration Membrane Technology for Water Treatment. Journal of Water Processing Engineering, 40, 101-115.
2. Wang, Y., & Zhang, L. (2020). Comparison of Ultrafiltration and Conventional Water Treatment Methods: A Comprehensive Review. Water Research, 185, 116-131.
3. Lee, S., & Park, C. (2019). Application of Ultrafiltration in Various Industries: Current Status and Future Prospects. Separation and Purification Technology, 213, 465-480.
4. Garcia-Ivars, J., et al. (2022). Hollow Fiber Ultrafiltration Membranes: Fabrication, Modification, and Applications. Chemical Engineering Journal, 430, 132-145.
5. Chen, X., & Li, Y. (2020). Ultrafiltration Membrane Fouling and Control Strategies in Water Treatment. Desalination, 479, 114-128.
6. Thompson, M., & Brown, R. (2021). Energy Efficiency in Ultrafiltration Systems for Municipal Water Treatment. Environmental Technology & Innovation, 22, 101-112.
