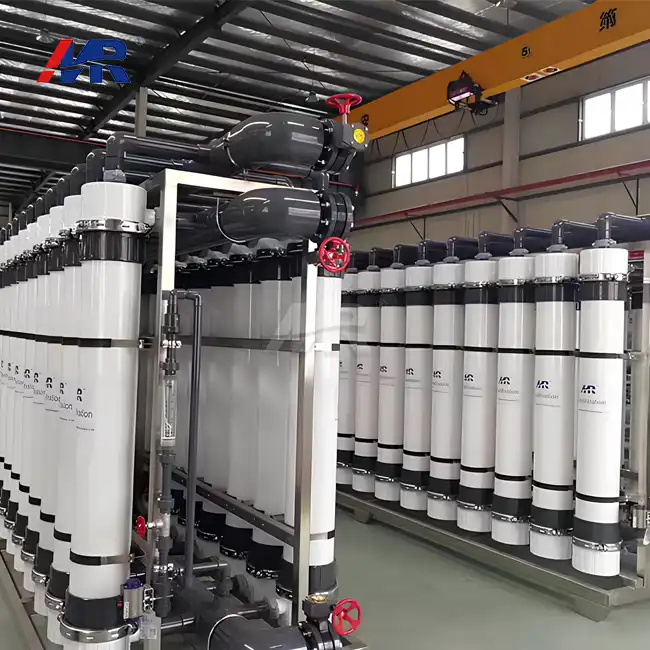

What Specifications Are Critical for a Municipal 200m3/hour UF Plant?
When selecting a municipal ultrafiltration plant with a capacity of 200m3/hour, several critical specifications must be considered to ensure optimal performance and efficiency. These specifications are essential for meeting the water treatment needs of a medium-sized community while maintaining high-quality standards.
Membrane Type and Configuration
The heart of any ultrafiltration plant is its membrane system. For a 200m3/hour capacity, PVDF (polyvinylidene fluoride) hollow fiber membranes are often the preferred choice due to their durability and excellent filtration properties. The membrane configuration should be designed to maximize the filtration area while minimizing the plant's footprint. Typically, a system of this size would require a filtration area between 1000-1500 m2 to ensure efficient operation.
Pore Size and Filtration Efficiency
The pore size of the ultrafiltration membranes is a critical specification that determines the level of filtration. For municipal water treatment, a pore size range of 0.01-0.1 microns is standard, as it effectively removes suspended solids, bacteria, and other contaminants while allowing essential minerals to pass through. This pore size ensures high filtration efficiency without compromising the water's beneficial mineral content.
Operating Pressure and Energy Efficiency
The operating pressure of the UF system is another crucial specification. For a 200m3/hour plant, an optimal operating pressure range of 0.1-0.3 MPa strikes a balance between effective filtration and energy efficiency. This pressure range allows for sufficient water flow through the membranes while minimizing energy consumption, which is a significant factor in the long-term operational costs of the plant.
Automation and Control Systems
Modern ultrafiltration plants require sophisticated automation for optimal performance. A fully automated system with PLC (Programmable Logic Controller) control is essential for a 200m3/hour plant. This level of automation ensures consistent water quality, efficient backwashing cycles, and real-time monitoring of system parameters. It also reduces the need for constant manual intervention, leading to more reliable and cost-effective operation.
Pre-treatment and Post-treatment Capabilities
While the ultrafiltration process is the core of the system, pre-treatment and post-treatment capabilities are equally important. The plant should include adequate pre-treatment options such as coagulation, flocculation, or sedimentation to remove larger particles and extend the life of the UF membranes. Post-treatment options, such as disinfection systems, may also be necessary depending on the final water quality requirements.
Assessing Raw Water Quality for Sizing a 200 m³/h Ultrafiltration System
Proper assessment of raw water quality is paramount when sizing a 200 m³/h ultrafiltration system for municipal use. This evaluation ensures that the chosen system can effectively handle the specific contaminants present in the local water source, leading to optimal performance and longevity of the ultrafiltration equipment.
Comprehensive Water Analysis
The first step in assessing raw water quality is conducting a comprehensive water analysis. This analysis should include measurements of various parameters such as:
- Turbidity levels
- Total suspended solids (TSS)
- Dissolved organic matter
- pH levels
- Hardness
- Presence of specific contaminants (e.g., heavy metals, microorganisms)
These parameters provide crucial information about the challenges the ultrafiltration system will face and help in determining the necessary pre-treatment steps.
Seasonal Variations in Water Quality
It's important to consider seasonal variations in water quality when sizing an ultrafiltration system. Many water sources experience fluctuations in turbidity, organic matter content, and other parameters throughout the year. Collecting data over an extended period, ideally covering all seasons, provides a more accurate picture of the raw water quality challenges the system will encounter.
Pilot Testing for Accurate Sizing
Conducting pilot tests using a smaller-scale ultrafiltration unit can provide valuable insights for sizing a 200 m³/h system. These tests can help determine:
- Optimal membrane flux rates
- Backwash frequency requirements
- Chemical cleaning needs
- Overall system efficiency under actual operating conditions
Pilot testing allows for fine-tuning of the system design and helps prevent over or undersizing of the full-scale ultrafiltration plant.
Consideration of Future Water Quality Changes
When sizing an ultrafiltration system, it's crucial to consider potential future changes in water quality. Factors such as climate change, urbanization, or changes in industrial activities in the watershed can impact raw water quality over time. Building in some flexibility in the system design can help address potential future challenges without requiring a complete system overhaul.
Ensuring Regulatory Compliance with High-Capacity UF Water Treatment
Ensuring regulatory compliance is a critical aspect of implementing high-capacity ultrafiltration water treatment systems for municipal use. As water quality standards become increasingly stringent, it's essential that UF plants not only meet current regulations but are also designed with future compliance in mind.
Understanding Current Regulations
The first step in ensuring compliance is to have a thorough understanding of current water quality regulations. These may include:
- National drinking water standards
- Local or state-specific water quality requirements
- Environmental protection agency (EPA) guidelines
- World Health Organization (WHO) recommendations
It's crucial to design the ultrafiltration plant to meet or exceed these standards consistently.
Implementing Robust Monitoring Systems
To maintain regulatory compliance, high-capacity UF water treatment plants must incorporate robust monitoring systems. These systems should include:
- Continuous online monitoring of key water quality parameters
- Regular sampling and laboratory testing protocols
- Data logging and reporting capabilities for regulatory submissions
- Alarm systems to alert operators of any deviations from acceptable ranges
Advanced monitoring systems not only ensure compliance but also allow for proactive maintenance and optimization of the ultrafiltration process.
Addressing Emerging Contaminants
As scientific understanding of water quality improves, new contaminants of concern are often identified. High-capacity UF systems should be designed with the flexibility to address these emerging contaminants. This may involve:
- Incorporating additional treatment steps if needed
- Selecting membranes with enhanced removal capabilities
- Implementing advanced oxidation processes for certain contaminants
Staying informed about emerging water quality issues and maintaining a proactive approach to system upgrades is key to long-term regulatory compliance.
Staff Training and Standard Operating Procedures
Regulatory compliance is not just about having the right equipment; it also depends on proper operation and maintenance. Implementing comprehensive staff training programs and developing detailed standard operating procedures (SOPs) are crucial for ensuring consistent compliance. These should cover:
- Daily operational checks and adjustments
- Maintenance schedules and procedures
- Emergency response protocols
- Quality control and assurance practices
Well-trained staff and clear SOPs help maintain the integrity of the ultrafiltration process and ensure consistent compliance with regulatory standards.
Regular Audits and Continuous Improvement
To maintain long-term regulatory compliance, it's essential to implement a system of regular audits and continuous improvement. This involves:
- Conducting internal audits of the UF system's performance and compliance
- Participating in external audits or certifications
- Reviewing and updating procedures based on audit findings
- Implementing a culture of continuous improvement in water quality and operational efficiency
By maintaining a proactive approach to compliance and system optimization, high-capacity UF water treatment plants can ensure they meet both current and future regulatory requirements effectively.
Conclusion
Selecting the right Ultrafiltration System hardware for metropolitan water needs is a complex but pivotal handle. By carefully considering the basic determinations for a 200m3/hour UF plant, altogether surveying crude water quality, and guaranteeing strong administrative compliance measures, districts can execute high-capacity ultrafiltration frameworks that successfully serve their communities' water decontamination needs.
For master direction in selecting and actualizing ultrafiltration frameworks custom-made to your particular civil water treatment necessities, see no advance than Guangdong Morui Natural Innovation Co., Ltd. Our group of experienced experts specializes in giving cutting-edge water treatment arrangements, counting mechanical wastewater treatment, household sewage administration, seawater desalination, and drinking water generation. We offer not fair gear, but comprehensive administrations counting establishment, commissioning, consumables supply, and intensive after-sales support.
With our state-of-the-art film generation office and gear handling plants, we are extraordinarily situated to convey customized, high-quality ultrafiltration arrangements. Our commitment to advancement and greatness guarantees that you get dependable, productive, and custom fitted water decontamination frameworks that meet and surpass your expectations.
Don't hesitate to take the next step towards superior water quality for your community. Contact us today at benson@guangdongmorui.com to discuss how our ultrafiltration expertise can address your municipal water treatment needs. Let Guangdong Morui Environmental Technology Co., Ltd be your partner in ensuring clean, safe water for generations to come.
