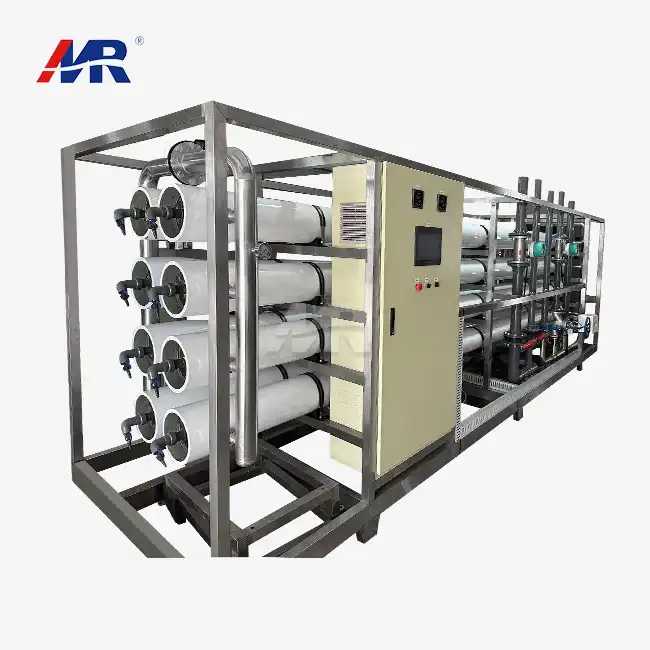

What Are the Key Components of a Reverse Osmosis Plant?
A reverse osmosis plant comprises several crucial components that work in harmony to deliver high-purity water. Understanding these elements is essential for anyone considering implementing or optimizing a reverse osmosis system. Let's explore the key components that make up a typical RO plant:
Pre-treatment System
The pre-treatment system is the first line of defense in a reverse osmosis plant. It typically includes:
- Sediment filters: Remove suspended particles and debris
- Activated carbon filters: Eliminate chlorine and organic compounds
- Water softeners: Reduce hardness to protect RO membranes
Effective pre-treatment is crucial for extending the lifespan of RO membranes and ensuring optimal system performance.
High-pressure Pump
The high-pressure pump is the heart of the reverse osmosis system. It generates the necessary pressure to overcome osmotic pressure and force water through the semi-permeable membranes. In industrial-scale plants, these pumps are often multi-stage centrifugal pumps designed for continuous operation and energy efficiency.
Reverse Osmosis Membranes
The RO membranes are the core technology in a reverse osmosis plant. These semi-permeable barriers allow water molecules to pass through while rejecting dissolved solids, organic compounds, and other contaminants. Modern RO plants typically use thin-film composite membranes arranged in spiral-wound configurations for maximum efficiency and compact design.
Membrane Housing
Membrane housings are pressure vessels that contain and protect the RO membranes. They are designed to withstand high operating pressures and facilitate easy membrane replacement when needed. In large-scale plants, multiple membrane housings are often arranged in arrays to achieve the desired water production capacity.
Control System
A sophisticated control system is essential for monitoring and managing the reverse osmosis process. It typically includes:
- Programmable logic controllers (PLCs)
- Human-machine interface (HMI) panels
- Sensors for monitoring pressure, flow, conductivity, and pH
- Automated valves for system control and protection
Advanced control systems in modern RO plants offer real-time monitoring, data logging, and remote access capabilities for optimized operation and maintenance.
Post-treatment System
The post-treatment system fine-tunes the quality of the permeate water to meet specific requirements. Common post-treatment processes include:
- pH adjustment: To neutralize the slightly acidic RO permeate
- Remineralization: Adding essential minerals for improved taste and corrosion control
- Disinfection: UV sterilization or chlorination for microbial control
Energy Recovery Devices
In modern reverse osmosis plants, energy recovery devices play a crucial role in improving overall system efficiency. These devices, such as pressure exchangers or turbochargers, harness the energy from the high-pressure concentrate stream to assist in pressurizing the feed water, significantly reducing energy consumption.
By integrating these key components, a reverse osmosis plant can effectively purify water for various applications, from industrial processes to drinking water production. The synergy between these elements ensures reliable operation, consistent water quality, and optimal energy efficiency.
Reverse Osmosis System vs. Traditional Filtration: Key Differences
When it comes to water purification, reverse osmosis systems and traditional filtration methods each have their unique characteristics and applications. Understanding the key differences between these technologies is crucial for selecting the most appropriate solution for specific water treatment needs.
Purification Mechanism
Reverse osmosis systems utilize a semi-permeable membrane to separate water molecules from contaminants at the molecular level. This process can remove up to 99% of dissolved solids, including ions, molecules, and larger particles. In contrast, traditional filtration methods typically rely on physical barriers or chemical processes to remove impurities. These may include:
- Sand filtration: Removes larger particles and some microorganisms
- Activated carbon filtration: Adsorbs organic compounds and chlorine
- Ion exchange: Removes hardness and specific ions
While traditional filtration can be effective for certain applications, it generally cannot achieve the same level of purity as reverse osmosis, especially for dissolved solids and smaller contaminants.
Contaminant Removal Efficiency
Reverse osmosis excels in removing a wide range of contaminants, including:
- Dissolved salts and minerals
- Heavy metals (lead, arsenic, mercury)
- Microorganisms (bacteria, viruses, protozoa)
- Organic compounds
- Pesticides and herbicides
Traditional filtration methods may be effective against specific contaminants but often struggle to remove dissolved solids and smaller molecules comprehensively. For instance, activated carbon is excellent for removing chlorine and organic compounds but ineffective against dissolved salts.
Water Quality Output
A well-designed reverse osmosis plant can consistently produce high-purity water with very low total dissolved solids (TDS) levels, often below 50 parts per million (ppm). This level of purity is crucial for applications such as:
- Semiconductor manufacturing
- Pharmaceutical production
- Laboratory-grade water
- High-pressure boiler feed water
Traditional filtration systems typically cannot achieve such low TDS levels and may struggle to maintain consistent water quality, especially when dealing with variable source water conditions.
Energy and Resource Requirements
Reverse osmosis systems generally require more energy than traditional filtration methods due to the high pressure needed to overcome osmotic pressure. However, modern RO plants incorporate energy recovery devices to significantly improve efficiency. Additionally, RO systems may have higher water rejection rates, producing a concentrated waste stream.
Traditional filtration methods often have lower energy requirements but may consume more chemicals for regeneration (e.g., ion exchange resins) or require frequent media replacement (e.g., activated carbon filters).
Scalability and Flexibility
Reverse osmosis plants offer excellent scalability, with modular designs that can be easily expanded to meet increasing demand. They can also be adapted to treat a wide range of water sources, from brackish water to seawater. This flexibility makes RO systems suitable for various applications, from small point-of-use units to large-scale municipal water treatment plants.
Traditional filtration systems may have limitations in scalability and adaptability, often requiring significant redesign or additional treatment steps to handle changing water quality or increased capacity requirements.
Maintenance and Operational Considerations
While reverse osmosis systems require specialized maintenance, such as membrane cleaning and replacement, they generally offer consistent performance with minimal operator intervention when properly designed and maintained. Advanced control systems in modern RO plants facilitate automated operation and remote monitoring.
Traditional filtration systems may require more frequent maintenance, such as backwashing, media replacement, or chemical regeneration. However, they can be simpler to operate and may have lower initial costs for smaller-scale applications.
In conclusion, while both reverse osmosis and traditional filtration methods have their place in water treatment, RO systems offer superior purification capabilities, consistency, and flexibility for applications requiring high-purity water. The choice between these technologies ultimately depends on the specific water quality requirements, scale of operation, and available resources.
How Does a BWRO Plant Optimize Energy Efficiency?
Brackish Water Reverse Osmosis (BWRO) plants are designed to treat water with moderate salinity levels, typically ranging from 1,000 to 10,000 mg/L of total dissolved solids (TDS). While these plants are inherently more energy-efficient than seawater desalination systems, optimizing their energy consumption is crucial for sustainable and cost-effective operation. Let's explore the strategies and technologies employed in modern BWRO plants to maximize energy efficiency:
Advanced Membrane Technology
The heart of any reverse osmosis system is its membranes. In BWRO plants, the latest advancements in membrane technology play a significant role in energy optimization:
- Low-energy membranes: These membranes are designed to operate at lower pressures while maintaining high salt rejection rates, reducing the overall energy demand of the system.
- High-flux membranes: By increasing the water permeability of the membrane, these elements allow for higher production rates at lower operating pressures.
- Fouling-resistant membranes: These specialized membranes reduce the frequency of cleaning cycles and maintain consistent performance, contributing to long-term energy efficiency.
Energy Recovery Devices (ERDs)
Energy recovery devices are crucial components in optimizing the efficiency of BWRO plants. These devices harness the energy from the high-pressure concentrate stream to assist in pressurizing the feed water, significantly reducing the overall energy consumption of the system. Common types of ERDs used in BWRO plants include:
- Pressure exchangers: These devices directly transfer pressure from the concentrate to the feed stream with minimal energy loss.
- Turbochargers: Hydraulic energy from the concentrate stream is converted to mechanical energy to assist the high-pressure pump.
- Peltron wheels: These devices use the concentrate stream to drive a turbine, generating electricity to power the feed pumps.
The implementation of ERDs can reduce energy consumption by up to 60% in BWRO systems, making them a critical component for energy optimization.
Variable Frequency Drives (VFDs)
Variable frequency drives allow for precise control of pump speeds, enabling BWRO plants to adjust their operation based on varying feed water conditions and production requirements. By optimizing pump performance, VFDs contribute to energy savings in several ways:
- Matching pump output to system demand, reducing unnecessary energy consumption
- Allowing for soft starts and stops, reducing mechanical stress and energy spikes
- Facilitating fine-tuning of system pressure for optimal membrane performance
Intelligent Control Systems
Advanced control systems play a crucial role in optimizing the energy efficiency of BWRO plants. These systems utilize real-time data and sophisticated algorithms to:
- Adjust operating parameters based on feed water quality and production demands
- Implement predictive maintenance strategies to maintain peak system efficiency
- Optimize chemical dosing and cleaning cycles to minimize energy waste
- Coordinate the operation of multiple RO trains for maximum overall plant efficiency
By continuously monitoring and adjusting system parameters, these intelligent control systems ensure that the BWRO plant operates at its optimal energy efficiency point under varying conditions.
Two-Pass RO Configuration
For applications requiring extremely high water purity, BWRO plants often employ a two-pass RO configuration. While this may seem counterintuitive for energy efficiency, it can actually lead to overall energy savings compared to a single-pass system pushed to its limits. The benefits include:
- Lower operating pressure in each pass, reducing overall energy consumption
- Improved system flexibility and ability to handle varying feed water quality
- Extended membrane life due to less aggressive operating conditions
Hybrid Systems and Process Integration
Innovative BWRO plant designs are increasingly incorporating hybrid systems and process integration to optimize energy efficiency. These approaches may include:
- Combining RO with electrodialysis reversal (EDR) for improved overall system efficiency
- Integrating renewable energy sources, such as solar or wind power, to offset grid electricity consumption
- Utilizing waste heat from nearby industrial processes for feed water pre-heating
- Implementing closed-circuit desalination (CCD) techniques to maximize recovery rates and reduce energy consumption
By thinking beyond traditional BWRO configurations, plant designers can achieve significant energy savings and improved sustainability.
Optimal System Design and Staging
The overall design and staging of a BWRO plant play a crucial role in its energy efficiency. Key considerations include:
- Optimizing the number and arrangement of RO elements and pressure vessels
- Implementing split-feed or tapered designs to balance flux and minimize concentration polarization
- Proper sizing of pumps and piping to minimize friction losses
- Strategic placement of booster pumps to optimize pressure distribution
By carefully considering these design aspects, BWRO plants can achieve significant improvements in energy efficiency without compromising water quality or production capacity.
In conclusion, modern BWRO plants employ a range of strategies and technologies to optimize energy efficiency. From advanced membranes and energy recovery devices to intelligent control systems and innovative plant designs, these approaches work synergistically to minimize energy consumption while maintaining high performance and reliability. As technology continues to advance, we can expect further improvements in the energy efficiency of BWRO systems, making them an increasingly attractive solution for sustainable water purification.
Conclusion
Reverse osmosis technology has revolutionized water purification, offering unparalleled efficiency in removing contaminants and producing high-quality water for various applications. From the intricate components that make up a reverse osmosis plant to the advanced energy optimization strategies employed in BWRO systems, this technology continues to evolve and improve.
