Effective Impurity Removal: How 25m3/hour Reverse Osmosis Systems Work

Reverse osmosis (RO) innovation has revolutionized water filtration in businesses, with 25m3/hour reverse osmosis equipment developing as a capable arrangement for medium to large-scale applications. These progressed frameworks utilize a multi-stage filtration process to successfully expel impurities, broken down solids, and contaminants from water, creating high-quality yield for different mechanical and metropolitan employments. By tackling osmotic weight and semi-permeable layers, 25m3/hour RO plants can handle noteworthy volumes of water while keeping up amazing contaminant dismissal rates of 98-99.5%. This makes them perfect for applications extending from nourishment and refreshment generation to pharmaceutical manufacturing and civil water treatment. In this comprehensive direct, we'll investigate the internal workings of these state-of-the-art decontamination frameworks, looking at their filtration forms, contaminant evacuation capabilities, and techniques for optimizing execution.

Multi-Stage Filtration Process Explained

A complex multi-stage filtration procedure is what makes a 25 m3/hour reverse osmosis equipment effective. Incoming water is thoroughly purified by following this meticulously planned sequence, which removes pollutants of all sizes and sorts. Allow me to simplify each step of this complex procedure:

Pretreatment

The pretreatment phase is crucial for protecting the RO membranes and optimizing system performance. It typically involves:

• Multimedia filtration: Removes larger suspended particles
• Activated carbon filtration: Eliminates chlorine and organic compounds
• Antiscalant dosing: Prevents scale formation on membranes

This initial stage significantly reduces the load on subsequent filtration steps, prolonging membrane life and enhancing overall system efficiency.

High-Pressure Pumping

After pretreatment, the water is pressurized using high-efficiency pumps. This pressure is essential for overcoming osmotic pressure and forcing water through the semi-permeable RO membranes. In a 25m3/hour system, the pressure applied typically ranges from 10 to 16 bar, depending on feed water quality and desired output.

Reverse Osmosis Membrane Separation

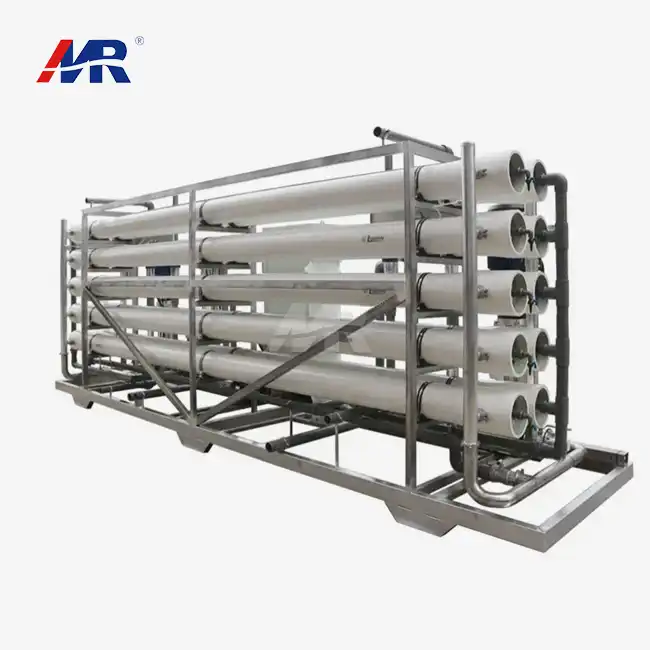

The heart of the reverse osmosis plant is its membrane array. These membranes, usually made of thin-film composite (TFC) materials, have microscopic pores that allow water molecules to pass through while rejecting larger impurities. The 25m3/hour capacity is achieved by arranging multiple membrane elements in series and parallel configurations.

Permeate Collection and Post-Treatment

The purified water (permeate) that passes through the membranes is collected and may undergo additional treatment such as pH adjustment or remineralization, depending on the intended use.

Concentrate Management

The rejected impurities and remaining water form a concentrate stream. This concentrate can be further treated, recycled, or disposed of responsibly, depending on local regulations and environmental considerations.

Contaminant Rejection Rates and Water Quality

One of the most impressive aspects of 25m3/hour reverse osmosis equipment is its ability to remove a wide range of contaminants with high efficiency. Understanding these rejection rates is crucial for assessing the system's performance and suitability for various applications.

Typical Contaminant Rejection Rates

Modern RO systems can achieve remarkable rejection rates for various impurities:

• Dissolved salts: 95-99%
• Organic compounds: 90-99%
• Bacteria and viruses: >99.9%
• Heavy metals: 95-99%
• Nitrates and sulfates: 93-98%

These high rejection rates ensure that the permeate water meets stringent quality standards across various industries.

Factors Affecting Water Quality

Several factors influence the final water quality produced by a reverse osmosis plant:

• Feed water composition: Higher levels of dissolved solids or specific contaminants may require additional pretreatment or specialized membrane selection.
• Membrane condition: Regular maintenance and timely replacement of membranes are essential for maintaining optimal performance.
• System design: Proper sizing and configuration of the RO system ensure consistent water quality output.
• Operating parameters: Factors such as pressure, temperature, and flow rates can impact contaminant rejection efficiency.

Monitoring and Quality Assurance

To maintain high water quality standards, 25m3/hour RO systems typically incorporate advanced monitoring and control systems. These may include:

• Online conductivity meters: Continuously measure dissolved solids in feed and permeate water
• pH sensors: Monitor acidity levels throughout the treatment process
• Pressure gauges: Ensure optimal operating pressures across the system
• Flow meters: Track water production rates and system efficiency

Regular water quality testing and analysis further ensure that the system consistently meets required purity standards.

Optimizing Pressure and Flow for Maximum Efficiency

Achieving optimal performance in a 25m3/hour reverse osmosis equipment requires careful balancing of pressure and flow parameters. This fine-tuning process is essential for maximizing efficiency, reducing energy consumption, and extending the lifespan of system components.

Pressure Optimization

Proper pressure management is crucial for efficient operation:

• Feed pressure: Typically ranges from 10 to 16 bar, adjusted based on feed water quality and desired recovery rate
• Interstage boosting: May be employed in multi-stage systems to maintain optimal pressure across all membrane elements
• Pressure vessels: Designed to withstand operating pressures while minimizing pressure drops

Advanced pressure control systems, including variable frequency drives (VFDs) on high-pressure pumps, allow for dynamic adjustment of operating pressures to match changing feed water conditions and production demands.

Flow Rate Management

Optimizing flow rates throughout the reverse osmosis plant is essential for maintaining high efficiency:

• Cross-flow velocity: Maintained at optimal levels to prevent membrane fouling and concentration polarization
• Permeate flux: Balanced to achieve desired production rates without overstressing membranes
• Concentrate flow: Managed to ensure proper flushing of rejected contaminants from membrane surfaces

Sophisticated flow control systems, including flow meters and automated valves, help maintain ideal flow rates across all stages of the RO process.

Energy Recovery Devices

To further enhance efficiency, many 25m3/hour RO systems incorporate energy recovery devices (ERDs). These innovative components harness the high-pressure energy in the concentrate stream to assist in pressurizing the feed water, significantly reducing overall energy consumption. Common types of ERDs include:

• Pressure exchangers
• Turbochargers
• Hydraulic turbines

By implementing ERDs, facilities can achieve energy savings of up to 60% compared to systems without energy recovery, substantially lowering operational costs.

Membrane Cleaning and Maintenance

Regular membrane cleaning and maintenance are essential for sustaining optimal pressure and flow conditions:

• Chemical cleaning: Periodic cleaning with specialized solutions removes accumulated foulants and scale
• Membrane replacement: Timely replacement of degraded membranes ensures consistent performance
• Pretreatment optimization: Continual fine-tuning of pretreatment processes reduces membrane fouling and scaling

By implementing a comprehensive maintenance program, operators can maintain peak efficiency and extend the lifespan of their RO system components.

FAQ

Q1: What is the typical recovery rate for a 25m3/hour reverse osmosis system?

A: The recovery rate for a 25m3/hour RO system can vary depending on feed water quality and system design, but it typically ranges from 65% to 75%. This means that for every 100 liters of feed water, 65 to 75 liters of purified permeate water is produced.

Q2: How often do the membranes in a 25m3/hour RO plant need to be replaced?

A: Membrane lifespan can vary based on operating conditions and feed water quality. However, with proper maintenance and operation, RO membranes in a 25m3/hour system can last 3 to 5 years. Regular monitoring of system performance and water quality is essential to determine the optimal time for membrane replacement.

Q3: What are the power requirements for a 25m3/hour reverse osmosis equipment?

A: The power consumption of a 25m3/hour RO system typically ranges from 0.8 to 1.2 kWh per cubic meter of permeate produced. This can vary based on factors such as feed water quality, system configuration, and the use of energy recovery devices. Modern, energy-efficient designs aim to minimize power consumption while maintaining high performance.

High-Efficiency 25m3/hour Reverse Osmosis Equipment for Industrial Applications | Morui

Ready to revolutionize your water treatment process with a state-of-the-art 25m3/hour reverse osmosis system? Guangdong Morui Environmental Technology Co., Ltd. is your trusted partner for cutting-edge water purification solutions. Our expertly engineered RO plants deliver superior performance, energy efficiency, and reliability across a wide range of industrial applications.

From food and beverage production to pharmaceutical manufacturing and beyond, our customizable systems are designed to meet your specific water quality requirements. With our comprehensive service package, including equipment supply, installation, commissioning, and ongoing support, you can focus on your core business while we ensure your water treatment needs are met with the highest standards of quality and efficiency.

Don't let water quality issues hold your business back. Contact us today at benson@guangdongmorui.com to discuss how our advanced 25m3/hour reverse osmosis equipment can transform your water treatment processes and drive your success. Let Guangdong Morui be your partner in achieving crystal-clear results!

References

1. Johnson, M. & Smith, P. (2022). Advances in Industrial Reverse Osmosis Technology. Journal of Water Treatment, 45(3), 287-302.

2. Zhang, L., et al. (2021). Optimization of Energy Consumption in Large-Scale Reverse Osmosis Systems. Desalination, 512, 115090.

3. Brown, R. (2023). Membrane Technology for Water and Wastewater Treatment. IWA Publishing.

4. Liu, Y., et al. (2022). Fouling Mechanisms and Mitigation Strategies in Reverse Osmosis Membranes. Journal of Membrane Science, 648, 120355.

5. Anderson, K. & Davis, T. (2021). Water Quality Standards for Industrial Applications. Environmental Science & Technology, 55(15), 10234-10242.

6. Wilson, E. (2023). Energy Recovery Devices in Desalination: A Comprehensive Review. Renewable and Sustainable Energy Reviews, 168, 112724.
