DTRO Water Treatment: key components and module design

Disc Tube Reverse Osmosis (DTRO) Water Treatment is a state-of-the-art membrane filtration technology that provides unmatched efficiency for handling complicated industrial effluents. The novel design of this system incorporates the high rejection rates of reverse osmosis with a novel disc-tube arrangement, which results in improved fouling resistance and increased recovery rates when contrasted with conventional RO layouts. For the treatment of difficult wastewaters, such as concentrated industrial discharges, high-salinity brines, and landfill leachate, DTRO Water Treatment modules are exceptional. Engineers and plant operators may optimize operational costs while meeting strict environmental rules by knowing the core components and design concepts of DTRO Water Treatment systems.

What are the main components of DTRO Water Treatment modules?

DTRO water treatment modules comprise several essential components that work together to achieve high-performance separation:

Disc Membranes

The uniquely engineered disc membranes are the brains of DTRO Water Treatment for sale technology. These sheets of circular membrane are arranged in succession, with a center hole in the middle of each disc to collect permeate. With a greater effective membrane surface area, the disc structure outperforms spiral-wound elements in terms of filtering capacity while taking up less space.

Tube Housing

The disc membranes are housed within a cylindrical pressure vessel, typically constructed from corrosion-resistant materials like fiber-reinforced plastic (FRP) or stainless steel. This robust housing withstands the high operating pressures required for reverse osmosis while protecting the internal components.

Spacers and Support Plates

Alternating between the membrane discs are specialized spacers and support plates. These components serve multiple critical functions:

• Maintaining proper spacing between membrane discs
• Promoting turbulent flow to reduce concentration polarization
• Providing structural support to prevent membrane deformation under pressure
• Facilitating efficient feed distribution and concentrate collection

Central Permeate Collection Tube

A perforated central tube runs through the stack of membrane discs, collecting the purified permeate water that passes through each membrane layer. This design allows for continuous permeate extraction along the entire length of the module.

End Caps and Sealing Systems

Specialized end caps and sealing mechanisms in DTRO Water Treatment ensure proper fluid distribution and prevent bypass between the feed, concentrate, and permeate streams. These components are crucial for maintaining the integrity of the separation process.

DTRO Water Treatment module design: disc, tube, feed channel layout

The unique design of DTRO modules offers several advantages over conventional RO configurations:

Disc Membrane Configuration

The stacked disc arrangement provides several benefits:

• Increased membrane packing density, maximizing filtration area within a given volume
• Improved resistance to fouling due to the tangential flow pattern across the membrane surface
• Enhanced ability to handle high suspended solids loads without clogging
• Easier membrane replacement and maintenance compared to spiral-wound elements

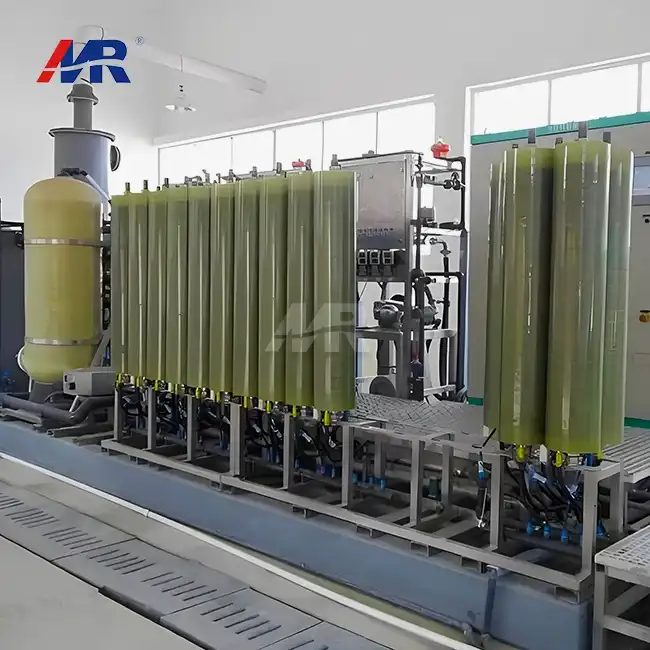

Tubular Housing Design

The cylindrical pressure vessel housing the disc stack offers:

• Efficient distribution of hydraulic pressure across the membrane surface
• Compatibility with high-pressure operations, enabling treatment of challenging feed waters
• Modular scalability, allowing for easy system expansion or reconfiguration

Feed Channel Layout

The feed channel design in DTRO modules is optimized for performance:

• Radial flow pattern from the outer edge of the discs towards the center
• Turbulence-promoting spacers to minimize concentration polarization
• Graduated channel heights to maintain consistent cross-flow velocities as the feed becomes concentrated

This carefully engineered feed channel layout contributes to the DTRO water treatment system's ability to handle high-fouling feeds and achieve higher recovery rates compared to conventional RO designs.

Hydraulic design considerations for DTRO Water Treatment

Optimizing the hydraulic design of DTRO systems is crucial for achieving peak performance and longevity:

Pressure Drop Management

Careful consideration of pressure drop across the DTRO module is essential:

• Balancing feed channel dimensions to minimize pressure loss while maintaining adequate cross-flow
• Designing manifold systems to ensure even flow distribution among multiple modules
• Implementing pressure recovery devices to optimize energy efficiency in high-pressure applications

Concentrate Management

Effective handling of the concentrate stream is critical for DTRO operation:

• Designing staged systems to achieve higher overall recovery rates
• Implementing concentrated recirculation loops to maintain minimum flow velocities
• Considering concentrated treatment options for zero liquid discharge applications

Permeate Collection Optimization

Efficient permeate extraction contributes to overall system performance:

• Sizing the central permeate tube to minimize back-pressure on the membranes
• Implementing permeate staging for improved overall water quality
• Considering permeate recirculation for enhanced removal of specific contaminants

By carefully addressing these hydraulic design aspects, engineers can maximize the efficiency and effectiveness of DTRO water treatment systems across a wide range of applications.

Conclusion

DTRO Water Treatment represents a significant advancement in membrane filtration technology, offering superior performance for challenging industrial wastewater applications. The innovative disc-tube configuration combines the high rejection capabilities of reverse osmosis with enhanced fouling resistance and improved recovery rates, making it particularly valuable for treating concentrated industrial discharges, high-salinity brines, and landfill leachate. The system's key advantages stem from its unique design elements: stacked disc membranes that maximize filtration area, optimized feed channel layout promoting turbulent flow, and efficient permeate collection through a central tube. These features translate into tangible operational benefits, including reduced energy consumption, lower maintenance requirements, and extended intervals between chemical cleanings. As industries face increasingly stringent environmental regulations and complex wastewater challenges, DTRO technology provides a robust, cost-effective solution that enables plant operators to achieve compliance while optimizing operational efficiency. This makes DTRO an essential technology for modern industrial water treatment applications.

FAQ

Q1: How does DTRO compare to traditional reverse osmosis in terms of energy efficiency?

A: DTRO systems generally offer improved energy efficiency compared to traditional RO, particularly when treating high-fouling or high-salinity feeds. The disc configuration and optimized hydraulics allow for higher recovery rates, reducing the volume of concentrate that requires further treatment or disposal. Additionally, the ability to operate at lower cross-flow velocities can result in reduced pumping energy requirements.

Q2: What types of industries can benefit most from DTRO water treatment technology?

A: DTRO is particularly well-suited for industries dealing with challenging wastewater streams. This includes landfill leachate treatment, mining and metal processing effluents, concentrated industrial discharges from chemical or pharmaceutical manufacturing, and high-salinity brines from desalination or oil and gas operations. The technology's robustness and fouling resistance make it valuable in scenarios where conventional RO systems might struggle.

Q3: How does the maintenance of DTRO modules compare to traditional spiral-wound RO elements?

A: In many cases, DTRO modules provide maintenance benefits. Disassembly and membrane replacement are made easier with the disc structure than with spiral-wound parts. Maintenance activities can have less downtime if this is done. Longer periods between chemical cleanings may be possible with DTRO systems due to their enhanced fouling resistance, which might reduce chemical usage and maintenance expenses.
