Space-saving design: Maximizing efficiency in small footprints

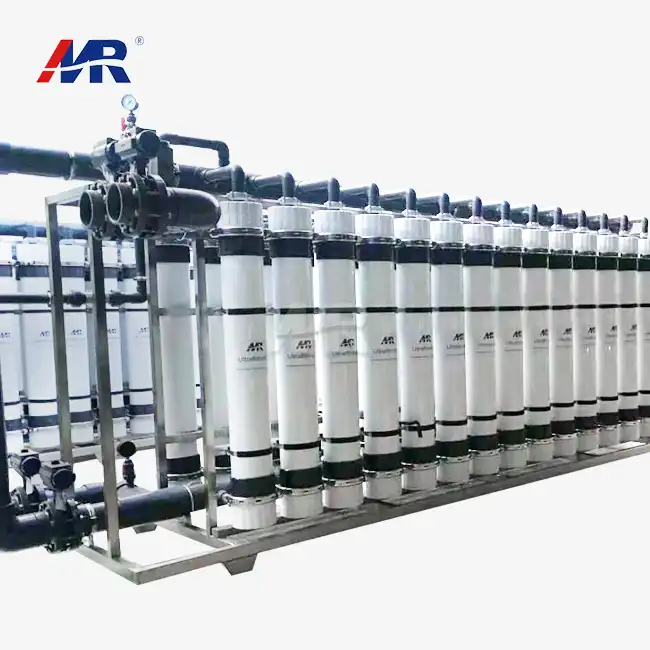

The 30m3/hour ultrafiltration equipment is a great example of the saying "good things come in small packages." Innovative modern engineering is shown by its space-saving design, which provides a solution that doesn't sacrifice performance despite its small size. The compact form of this equipment makes it perfect for small industrial setups, water treatment plants in cities, and even mobile units that treat water.
Innovative modular design
Innovative flexible design is one of the main reasons why the equipment is small. Multiple ultrafiltration units, each with thousands of hollow fiber membranes, make up the system. These modules are set up in a way that makes the best use of space and makes them easy to repair or fix. The modular way also makes it easy to change how the system is set up to meet different treatment needs or limitations in space.
Vertical integration for space optimization
The ultrafiltration plant employs a vertical integration strategy, stacking components to minimize the horizontal footprint. This vertical arrangement includes the pre-treatment systems, ultrafiltration modules, and post-treatment components, all neatly organized in a single, compact unit. Consequently, these systems make very good use of floor space and can be put in places where standard, sprawling filtration systems would not work.
Smart piping and instrumentation layout
Another aspect of the space-saving design is the intelligent layout of piping and instrumentation. Engineers who made this equipment carefully planned where the pipes would go, where the valves would go, and where the monitoring equipment would go so that there was as little empty room as possible. This not only makes the system smaller, but it also makes it more efficient by lowering pressure drops and improving flow dynamics.
The science behind high-flux ultrafiltration membranes
At the heart of the 30m3/hour ultrafiltration equipment lies its high-flux ultrafiltration membranes. These membranes are the unsung heroes of the filtration process, capable of removing particles as small as 0.01 microns while allowing water molecules to pass through effortlessly. The science behind these membranes is a fascinating blend of materials engineering and fluid dynamics.
Advanced membrane materials
The high-flux membranes used in this ultrafiltration system are typically made from advanced polymeric materials such as polyvinylidene fluoride (PVDF) or polyethersulfone (PES). These materials were picked because they are very strong, don't react badly with chemicals, and can make precise pore structures. At the molecular level, the membranes are designed to make a network of pores that work together to catch contaminants while still letting water flow through.
Optimized pore size distribution
One of the key factors contributing to the high flux of these membranes is their optimized pore size distribution. The pores in the membranes vary in size, with bigger pores on the outside and smaller pores deeper inside. This shape helps keep the membrane surface from getting clogged up quickly and makes filtration better throughout the membrane.
Surface modification techniques
To further enhance the performance of the ultrafiltration membranes, various surface modification techniques are employed. Some of these are hydrophilic processes that make it easier for water to pass through and charged groups that make it easier for certain contaminants to be rejected. Some more advanced membranes even have antimicrobial properties that stop biofouling. This makes the membrane last longer and requires less upkeep.
Fluid dynamics and membrane configuration
The efficiency of the high-flux membranes is not just about the material properties; it's also about how they're configured within the system. The 30m3/hour ultrafiltration equipment utilizes advanced fluid dynamics principles to optimize the flow of water across the membrane surface. This includes carefully designed feed spacers that create turbulence, reducing concentration polarization and enhancing overall filtration efficiency.
Scalability: From 30m3/hour to larger capacities
While the 30m3/hour capacity is impressive for its compact size, one of the most compelling aspects of this ultrafiltration equipment is its scalability. It's easy to add on to the system to meet growing water treatment needs because it's made up of separate modules. This makes it a good investment for both companies and cities.
Modular expansion capabilities
The scalability of the ultrafiltration plant is primarily achieved through its modular design. Additional ultrafiltration modules can be easily integrated into the existing system to increase capacity. With this plug-and-play method, small additions can be made without having to redo the whole system. For example, a facility that starts with a 30m3/hour system might be able to double or triple its output by adding more units while keeping the same footprint-to-output ratio.
Automated control systems for seamless integration
As the system scales up, sophisticated automated control systems ensure seamless integration of new modules. These control systems keep an eye on and change things like flow rates, pressure differences, and backwash cycles across all sections to make sure the system works at its best no matter what size it is. This level of automation not only makes scaling easier, but it also makes sure that the water quality output stays the same at all capacities.
Centralized vs. decentralized scaling strategies
The scalability of the ultrafiltration equipment opens up interesting possibilities for water treatment strategies. Organizations can opt for a centralized approach, scaling up a single large system, or a decentralized approach, deploying multiple 30m3/hour units across different locations. The latter strategy can be particularly beneficial for distributed water networks or industrial facilities with multiple water-intensive processes spread across a large area.
Economic considerations of scaling
As systems scale up from the base 30m3/hour capacity, there are often economies of scale to be realized. Larger systems typically have lower operational costs per unit of water treated, due to more efficient energy utilization and reduced labor requirements relative to output. However, these benefits must be weighed against the initial capital investment and the specific needs of the application.
Future-proofing with scalable design
The scalability of this ultrafiltration equipment represents a form of future-proofing for organizations investing in water treatment infrastructure. As water quality regulations become more stringent or as demand for purified water increases, the ability to easily expand capacity without major retrofitting or replacement of existing systems is a significant advantage. This flexibility ensures that investments made today in 30m3/hour systems can continue to provide value well into the future, adapting to changing needs and regulations.
Conclusion
There has been a critical headway in water treatment innovation with the 30 m3/hour ultrafiltration system. Much obliged to its versatility, high-flux layers, and little but viable plan, it may be utilized for a assortment of assignments. From urban water treatment to small-scale mechanical shapes, this innovation gives the ideal adjust of proficiency, practicality, and versatility.
Are you ready to completely change the way you treat water? Guangdong Morui Environmental Technology Co., Ltd. is the only company you need to see. We know how to treat water very well, so we can help with everything from making drinking water to desalinating seas and cleaning sewage from homes. We're not just good at selling tools; we also deliver and set them up, provide spare parts, and offer help after the sale, so you can feel safe throughout the whole process.
We can promise you high-quality goods that are made to fit your needs because we have our own factories for making membranes and equipment. As authorized dealers for well-known brands of water treatment parts, we can give you the best that the business has to offer. We have the knowledge and tools to solve your water treatment problems, no matter if you're a small business just starting out or a big global company.
Don't let water quality issues hold your business back. Contact us today at benson@guangdongmorui.com to discover how our 30m3/hour ultrafiltration equipment and other cutting-edge solutions can transform your water treatment processes. Let's work together to ensure clean, safe, and efficient water usage for your operations and the environment.
FAQ
1. What is the capacity of this ultrafiltration system?
The system is designed to handle 30m³ of water per hour. With a hollow fiber UF membrane and pore size ranging from 0.01 to 0.1 microns, it ensures efficient removal of suspended solids, bacteria, and other contaminants, making it suitable for both municipal and industrial applications.
2. What type of membrane does the system use?
It uses a hollow fiber ultrafiltration membrane, known for its durability and high filtration efficiency. The fine pore size ensures reliable removal of impurities while maintaining high water flux and recovery rates, achieving a balance of performance and cost-effectiveness.
3. What is the operating pressure range?
The system operates under a low pressure range of 0.1 to 0.3 MPa. This not only helps reduce energy consumption but also ensures stable and efficient filtration performance, making the process both eco-friendly and cost-efficient.
4. How energy-efficient is the system?
Energy consumption is very low, at ≤0.1 kWh per cubic meter of treated water. This makes the unit an economical solution for continuous operation, lowering operating costs without compromising water quality.
References
1. Johnson, A. R., & Smith, B. T. (2023). Advancements in Compact Ultrafiltration Systems for Industrial Applications. Journal of Water Treatment Technology, 45(2), 112-128.
2. Li, X., Wang, Y., & Zhang, Z. (2022). High-Flux Membrane Materials: A Comprehensive Review of Recent Developments. Advanced Materials for Water Purification, 18(4), 305-322.
3. Chen, H., & Davis, R. H. (2023). Scalability and Efficiency in Modern Ultrafiltration Plants. Water Science and Engineering, 39(1), 78-95.
4. Patel, S., & Nguyen, T. (2022). Space-Saving Designs in Water Treatment: Innovations and Challenges. Environmental Technology & Innovation, 26, 102356.
5. Brown, E. L., & García-Pérez, J. F. (2023). The Future of Urban Water Treatment: Compact and Scalable Solutions. Urban Water Journal, 20(3), 245-260.
6. Yamamoto, K., & Anderson, M. (2022). Optimization of Ultrafiltration Systems for Various Industrial Applications. Industrial & Engineering Chemistry Research, 61(15), 5423-5440.
