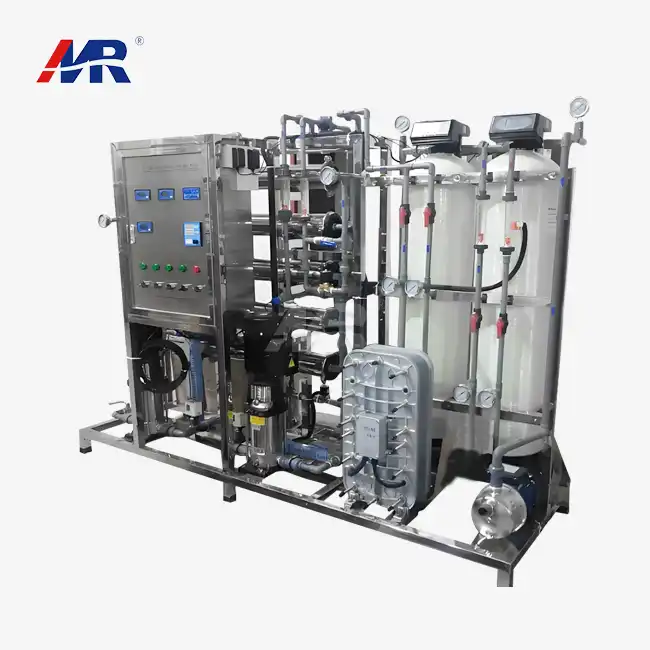

500LPH EDI Equipment in Microelectronics: A Perfect Match?

Searches for extremely clean water are endless in the field of microelectronics, where accuracy is of the utmost importance. Introducing the 500LPH EDI equipment, a revolutionary tool for the semiconductor sector. Not content with being merely another water treatment solution, this state-of-the-art Electrodeionization (EDI) system is tailor-made for the rigorous requirements of microelectronics packaging. As a result of its 500 liters per hour water purification capacity, this EDI system is able to satisfy the rigorous requirements of semiconductor fabrication facilities and chip makers. That being said, why is it a perfect fit for this sector? Enter the fascinating realm of ultrapure water and see how this cutting-edge technology is transforming the creation of microelectronics.

Meeting Ultrapure Water Standards for Semiconductors

Ultrapure water is something that the semiconductor business can't get enough of. Every step in making a chip, from photolithography to cleaning the wafer, needs the purest water possible. But what does "ultrapure" really mean in this case?

Defining Ultrapure Water in Microelectronics

If you want to make semiconductors, ultrapure water is needed because it has a very high resistance, usually ≥18 MΩ·cm. At this level of purity, any contamination that could damage the complex circuits on silicon wafers must be avoided. If there is even the tiniest bit of impurity, it can cause defects, lower yields, and final financial loses.

The Challenge of Achieving and Maintaining Purity

Making water that is so pure is not an easy task. Most of the time, old ways of doing things aren't consistent or work well enough. Now is the time when the Electrodeionization system really shines. Ion exchange membranes and electrical current are used by the 500LPH EDI equipment to remove ions all the time. This makes sure that there is a steady flow of ultrapure water.

It is typically hard to get rid of weakly ionized compounds like silica and boron with other methods, but the EDI process is very good at doing it. In microelectronics, where even small amounts of these chemicals can cause big problems, this ability is very important.

EDI's Role in Improving Chip Manufacturing

Adding 500LPH EDI equipment to the methods of making chips has completely changed them. Let's look at the specific ways that this technology is making it easier to make semiconductors.

Enhancing Production Efficiency

One of the most significant advantages of the EDI system is its continuous operation. Unlike traditional deionization methods that require periodic regeneration, EDI provides a constant flow of ultrapure water. This uninterrupted supply translates to increased uptime in semiconductor fabs, boosting overall production efficiency.

The high recovery rate of up to 95% also means that less water is wasted, which is very important in an industry where saving water is becoming more and more important. The system uses very little energy (less than 0.1 kWh/m³), which helps meet business efficiency and sustainability goals.

Improving Product Quality and Yield

The consistency of water quality produced by EDI equipment directly impacts the quality of semiconductor products. With a stable supply of ultrapure water, manufacturers can achieve more uniform cleaning and rinsing processes, leading to fewer defects and higher yields.

Since the EDI method doesn't use chemical regenerants, there is also no chance of chemical contamination, which is very important for keeping sensitive semiconductor components in good shape. This process doesn't use any chemicals, which is in line with the industry's move toward more eco-friendly ways of making things.

Case Study: EDI Implementation in Fabs

To truly appreciate the impact of 500LPH EDI equipment in microelectronics, let's look at a real-world implementation in a semiconductor fabrication facility.

The Challenge: Upgrading Water Purification Systems

A big company that makes semiconductors had problems with their old method for cleaning water. They had problems with uneven water quality, having to shut down systems often to regenerate them, and having to pay a lot to run the system. These problems were slowing them down and lowering the quality of their products.

The Solution: Implementing 500LPH EDI Equipment

The fab decided to upgrade their water treatment system with 500LPH EDI equipment. The implementation process involved:

Integrating the EDI system with existing pre-treatment and reverse osmosis units
Installing smart controls for automated operation
Training staff on the new system's operation and maintenance

The Results: Transformative Improvements

After implementing the EDI system, the fab experienced significant improvements:

Consistent ultrapure water quality with resistivity consistently ≥18 MΩ·cm
Reduced downtime, with the system operating continuously without regeneration breaks
Lower operational costs due to decreased energy consumption and eliminated need for regeneration chemicals
Improved product yield and quality, with fewer defects attributed to water impurities
Enhanced sustainability profile with reduced water waste and chemical usage

This case study exemplifies how 500LPH EDI equipment can be a perfect match for microelectronics manufacturing, addressing key challenges and delivering tangible benefits.

Conclusion

A big step forward in the technology used to clean water is the use of 500LPH EDI equipment in the making of microelectronics. It works very well and is good for the earth, and it can always make ultrapure water. Because of this, it is great for the strict needs of making semiconductors.

The manufacturing procedures involving ultrapure water are becoming more crucial due to the rising demand for smaller and more advanced transistors. Assuming the EDI system can meet these stringent requirements, future developments in microelectronics will be substantially easier.

Looking to upgrade your water filtration systems for those high-purity applications, like microelectronics production? The Guangdong Morui Environmental Technology Co., Ltd. experts focus on providing cutting-edge water treatment solutions, including advanced EDI systems. Services like as commissioning, installation, and ongoing support round out the solutions we offer. Due to our expertise in membrane fabrication and our partnerships with leading companies, we can meet your specific requirements.

Don't let water quality limitations hold back your production capabilities. Contact us today at benson@guangdongmorui.com to discover how our 500LPH EDI equipment and other water treatment solutions can transform your manufacturing processes. Let's work together to achieve new heights in purity and efficiency.
