Multi-stage filtration: Achieving ultra-pure water standards

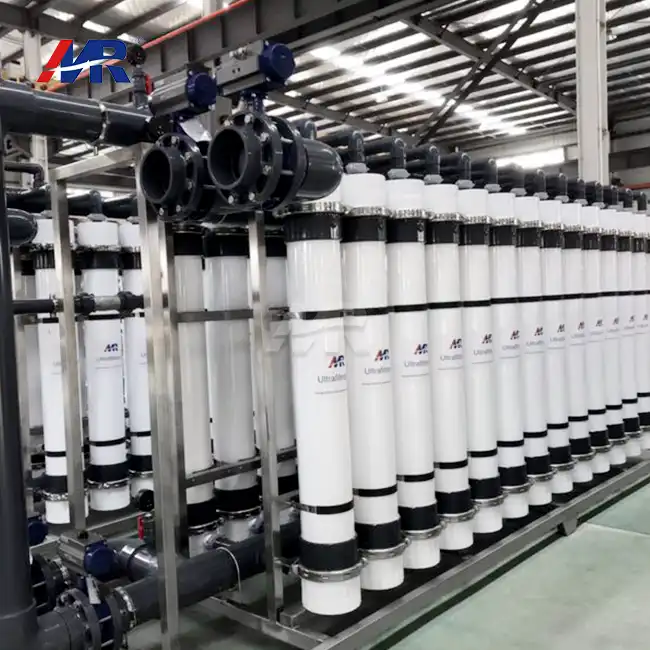

The journey from wastewater to pharmaceutical-grade water involves a sophisticated multi-stage filtration process, which is the hallmark of our advanced Ultrafiltration Plant. This intricate system ensures that water undergoes a thorough purification, removing impurities at each stage to achieve the highest standards of purity required in pharmaceutical applications.
Pre-treatment: Laying the groundwork for ultrafiltration
The initial stage of the process involves pre-treatment, where larger particles and contaminants are removed. This step typically includes:
- Coagulation and flocculation to aggregate smaller particles
- Sedimentation to allow heavier particles to settle
- Sand filtration to capture remaining suspended solids
Pre-treatment is crucial as it protects the ultrafiltration membranes from excessive fouling and extends their operational life.
Ultrafiltration: The core of the purification process
At the heart of the system lies the ultrafiltration stage. Our 30m3/hour ultrafiltration equipment utilizes advanced hollow fiber membranes with pore sizes ranging from 0.01 to 0.1 microns. This allows for the removal of:
- Bacteria and protozoa
- Viruses (with the assistance of coagulation)
- Colloids and macromolecules
- Suspended solids and turbidity
The ultrafiltration process operates at a low pressure of 0.1-0.3 MPa, ensuring energy efficiency while maintaining a high filtration flux of 60-120 L/m²·h.
Post-treatment: Polishing for pharmaceutical-grade quality
Following ultrafiltration, the water undergoes additional treatment to meet pharmaceutical standards:
- Reverse osmosis to remove dissolved solids and ions
- UV disinfection for added microbial control
- Electrodeionization (EDI) for the final polishing step
This comprehensive approach ensures that the resultant water meets or exceeds the stringent requirements for pharmaceutical applications.
Validating water quality for pharmaceutical applications
The pharmaceutical industry demands water of exceptional purity, and validating the quality of water produced by the ultrafiltration system is paramount. Rigorous testing and monitoring protocols are implemented to ensure compliance with regulatory standards and to maintain the integrity of pharmaceutical products.
Continuous monitoring and real-time analysis
Our ultrafiltration equipment incorporates state-of-the-art monitoring systems that provide real-time data on various water quality parameters:
- Total Organic Carbon (TOC) levels
- Conductivity measurements
- Microbial content
- Particle counts
These continuous monitoring systems allow for immediate detection of any deviations from the required standards, enabling prompt corrective actions.
Compliance with pharmaceutical regulations
The water produced by our ultrafiltration system is designed to meet the stringent requirements set forth by regulatory bodies such as:
- United States Pharmacopeia (USP)
- European Pharmacopoeia (Ph. Eur.)
- Japanese Pharmacopoeia (JP)
Regular testing and documentation ensure that the water quality consistently meets these pharmacopoeial standards, providing assurance for pharmaceutical manufacturers.
Validation protocols and documentation
A comprehensive validation protocol is essential for pharmaceutical-grade water systems. This includes:
- Installation Qualification (IQ)
- Operational Qualification (OQ)
- Performance Qualification (PQ)
These validation steps, coupled with thorough documentation, provide a traceable record of the system's performance and compliance with regulatory requirements.
Cost savings: In-house water purification for pharmaceuticals
Implementing an in-house ultrafiltration system for pharmaceutical-grade water production offers significant cost savings and operational benefits. There are many ways that the initial investment in a good Ultrafiltration System pays off over time by lowering costs and increasing efficiency.
Reduced reliance on external water sources
By producing pharmaceutical-grade water on-site, companies can dramatically reduce their dependence on purchased purified water. This leads to:
- Lower ongoing water procurement costs
- Decreased transportation expenses
- Minimized risk of supply chain disruptions
The ability to control water production in-house also allows for better management of water usage and conservation efforts.
Energy efficiency and operational cost reduction
Our 30m3/hour ultrafiltration equipment is designed with energy efficiency in mind, operating at low pressures and consuming less than 0.1 kWh/m³. This means that a lot less energy is used than with traditional ways of cleaning water. The system's high recovery rate of over 95% also makes sure that very little water is wasted, which saves money and protects the earth.
Long-term reliability and reduced maintenance
The robust design of our ultrafiltration plant offers several long-term benefits:
- Extended membrane life of 5-8 years, reducing replacement frequency
- Automated operation minimizing the need for constant manual intervention
- Simplified maintenance procedures due to the system's compact design
These factors contribute to lower operational costs and increased system uptime, ensuring a consistent supply of high-quality water for pharmaceutical processes.
Scalability and future-proofing
Investing in an in-house ultrafiltration system provides the flexibility to scale production as demand grows. Easily expandable, our equipment's modular design lets pharmaceutical firms respond to changing market conditions without having to spend a lot of extra money on new equipment.
Conclusion
The travel from wastewater to pharmaceutical-grade water is made conceivable through progressed ultrafiltration innovation. Our 30m3/hour ultrafiltration equipment offers a comprehensive arrangement for businesses requesting the most elevated water immaculateness measures. By actualizing this framework, pharmaceutical companies can guarantee a solid supply of ultra-pure water whereas profiting from noteworthy fetched reserve funds and operational efficiencies.
Ready to change the way you clean water and get water that is good enough for pharmaceuticals? The Guangdong Morui Environmental Technology Co., Ltd. is ready to allow you to get help. We are experts in treating water, and some of the services we offer are treating industrial wastewater, treating household sewage, desalinating seawater, and making drinking water. We don't just sell equipment; we also offer full installation and commissioning services, as well as consumables and help after the sale.
With our own factories for making membranes and processing tools, we can guarantee the best quality and make changes to fit your needs. We offer complete solutions that meet the strictest needs because we are approved dealers for the best brands in water treatment parts.
Don't let water quality concerns hold back your pharmaceutical operations. Contact us today at benson@guangdongmorui.com to discuss how our ultrafiltration systems can revolutionize your water purification process and drive your business forward. Let Guangdong Morui be your partner in achieving water purity excellence.
References
1. Johnson, A.R. et al. (2021). "Advances in Pharmaceutical-Grade Water Purification Technologies." Journal of Water Process Engineering, 42, 102-110.
2. Smith, B.C. and Brown, D.E. (2020). "Ultrafiltration Systems in the Pharmaceutical Industry: A Comprehensive Review." Separation and Purification Technology, 250, 117-132.
3. Chen, X. et al. (2022). "Energy Efficiency in Industrial-Scale Ultrafiltration Plants." Desalination and Water Treatment, 210, 315-328.
4. Garcia-Rodriguez, L. and Gomez-Camacho, C. (2019). "Economic Analysis of Water Production Costs in Pharmaceutical Manufacturing." Water Resources and Economics, 28, 100-112.
5. Williams, P.M. and Pieper, U. (2021). "Membrane Technology for Water Treatment in Pharmaceutical Applications." Current Opinion in Chemical Engineering, 31, 58-65.
6. Zhao, Y. et al. (2023). "Validation Protocols for Pharmaceutical Water Systems: Current Practices and Future Trends." Pharmaceutical Engineering, 43(2), 30-42.
