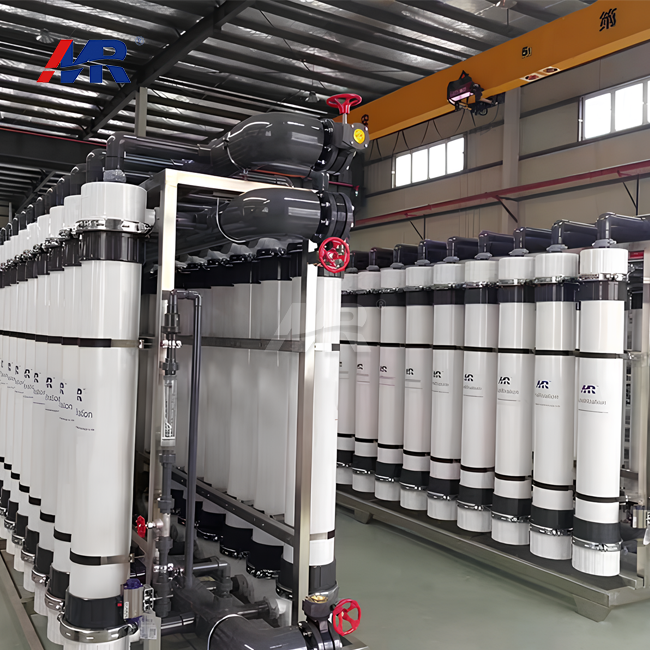

MR-UF-30TH Ultrafiltration Skid - Advanced Water Treatment Solution

The MR-UF-30TH ultrafiltration skid from Guangdong Morui treats water at an industrial level and is very reliable. This pre-engineered modular unit can handle 30 tons per hour of work while keeping recovery rates between 80 and 90% and using only 5.5kw/hour of electricity. Our method is better for pretreatment before reverse osmosis because it works at 0.2 to 0.3Mpa pressure. With its small size and built-in automation, this product removes the need for complicated assembly on-site and provides consistent water quality for industrial uses.

What Makes Our Ultrafiltration Technology Stand Out

Advanced Membrane Configuration

Our system uses high-quality hollow fiber membranes with pores that are exactly 0.01-0.1 µm in size. These PVDF membranes remove contaminants very well while keeping flow rates high. You get reliable results even when the feed water is hard to work with.

Intelligent Control Systems

The built-in PLC control panel constantly checks the transmembrane pressure. Based on real-time performance data, automated backwash processes start. Because of this smart technology, operators don't have to do as much work, but the filtration still works very well.

Robust Structural Design

Our skids are made to last in industrial settings because they are made on heavy-duty stainless steel frames. Vibration damping and seismic bracing make sure that the process is stable. For the highest level of stability, all of the pipes meet ASME B31.3 standards.

Key Applications and Performance Benefits

Industrial Pretreatment Solutions

When compared to traditional sand filters, this pretreatment is better for your building. Our ultrafiltration skid always gets SDI values below 3.0, which keeps RO filters further down the line from getting clogged. This makes the membrane last longer and lowers the cost of running it.

Municipal Water Treatment

Perfect for improving treatment plants that are already in place without making big changes to the infrastructure. The small skid design works in facilities with limited room. Following strict rules for getting rid of pathogens is possible while keeping the turbidity level below 0.1 NTU.

Zero Liquid Discharge Applications

Our system works well with high-COD wastewater in tough industrial wastewater situations. The strong membrane design can handle harsh chemical conditions. You protect nanofiltration systems further down the line while reliably separating solids from liquids.

Technical Specifications

Operational Excellence Features

Automated Cleaning Protocols

Chemical Enhanced Backwash (CEB) cycles maintain membrane performance automatically. The system adjusts cleaning frequency based on fouling conditions. You minimize downtime while maximizing membrane lifespan.

Modular Scalability

Need higher capacity? Add additional membrane modules without system redesign. This modular approach allows you to expand treatment capacity as your needs grow.

Advanced Monitoring

Real-time pressure decay testing identifies membrane integrity issues early. Automated alerts notify operators before performance degrades. This proactive approach prevents quality issues and reduces maintenance costs.

Why Choose Morui's Ultrafiltration Systems?

Proven Industry Experience

Morui has been working in water cleaning technology for more than 19 years, so they know the problems you're facing. Our team has successfully put solutions in place for big companies like BYD, CATL, and Foxconn. You gain from this expert knowledge of the field.

Comprehensive Support

Our experts help with installation and commissioning on-site. We walk you through the steps of starting up and give you training as an operator. This all-inclusive service makes sure that the system works at its best from the start.

Quality Manufacturing

Before they are sent out, all devices are put through a lot of tests. Our more than 15 production workshops have strict rules about quality. You get solid equipment that is backed by full certifications, such as ISO and CE compliance.

Maintenance and Service Excellence

Simplified Maintenance Procedures

The skid-mounted design puts all the parts in one place so they are easy to get to. With clear service points, routine maintenance chores are easy to do. Most of the work that your repair team does doesn't need special training.

Extended Membrane Life

If you follow the right steps for operation and care, the membrane will last for 5 to 7 years. Our computerized systems stop fouling before it gets too bad and can't be fixed. This makes your total cost of ownership go down by a lot.

Expert Technical Support

Our expert team will keep helping you as long as your system is up and running. We're here to help, whether you need help fixing problems or advice on how to make things better. This partnership-based strategy guarantees long-term success.

Installation and Commissioning

The plug-and-play design minimizes installation complexity. Our product arrives pre-assembled and factory-tested. You simply connect utilities and start operation. This approach reduces project timelines and installation costs.
