industrial ro membrane
Operating pressure:1.55Mpa
Area: 7.2m2
Flow: 2500GPD
Salt rejection rate:99.5%
- Product Description

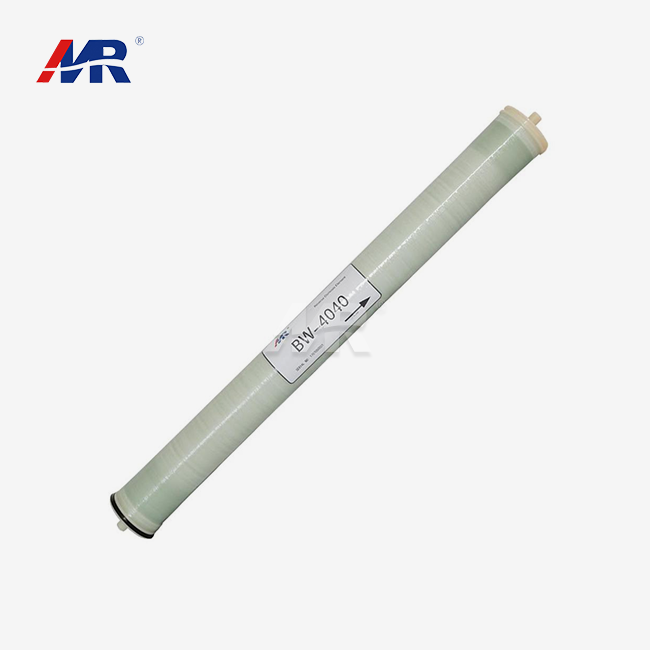

Industrial RO Membrane MR-BW-4040 - High-Performance Water Treatment Solution
Are you an industrial business looking for safe ways to treat water? For large-scale uses, our industrial RO membrane MR-BW-4040 performs admirably. This business-grade membrane can reject 99.5% of salt, can handle 2500 GPD of flow, and has an active membrane area of 7.2m². It's designed to work in tough industry settings where consistent water quality is important and operates at 1.55MPa pressure. Morui Group has been making things for more than 19 years and works with big names in the industry, like Toray and Vontron, to offer tried-and-true answers for your water treatment problems.
Understanding Industrial RO Membrane Technology
Industrial reverse osmosis membranes are the most important part of modern devices that clean water. Dissolved salts, organic matter, and contaminants can be successfully removed from different water sources by these semi-permeable barriers.
Your business processes need water quality that stays the same. That's where our membrane technology is unique. Because they are made of advanced polyamide construction, these membranes can survive harsh operating conditions and still do a great job.
With its spiral-wound form, the small housing has the most surface area possible. This setup makes sure that the most water is produced while also reducing the size of your facility's presence.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MR-BW-4040 |
| Operating Pressure | 1.55 MPa |
| Active Membrane Area | 7.2 m² |
| Permeate Flow Rate | 2500 GPD |
| Salt Rejection Rate | 99.5% |
| Configuration | Spiral Wound |
| pH Range (Cleaning) | 1-13 |
| Maximum Operating Temperature | 45°C |
Why Choose Our Industrial Membrane Solutions?
Proven Performance Standards
The parts of your water cleaning system need to be reliable. Our product technology always gives the same results in a wide range of situations. The 99.5% salt rejection rate makes sure that the cleanliness of your process water meets very high standards.
Controlling quality begins when the goods are made. In our 15 or more production workshops, we stick to strict standards for production. Before it is shipped, every membrane goes through a lot of tests.
Wide Application Range
Industrial water treatment demands vary significantly. Our membranes excel in:
- Boiler Feed Water Systems: Producing ultra-low silica water for thermal power generation
- Process Water Treatment: Supporting manufacturing operations requiring high-purity water
- Wastewater Recovery: Enabling water reuse and Zero Liquid Discharge systems
- Desalination Projects: Converting brackish water for industrial use
Advanced Engineering Features
Modern industrial ro membrane design incorporates several performance enhancements. Our membranes feature fouling-resistant surface modifications that extend operational life and reduce cleaning frequency.
The polyamide active layer provides excellent chemical resistance. This durability translates to longer service life and reduced replacement costs for your facility.
Low-energy variants reduce pump electricity consumption. This design consideration helps minimize your operational expenses while maintaining water production targets.
Installation and Maintenance Best Practices
System Integration
The membrane will work best if it is installed correctly. Our expert team helps with system commissioning on-site. We walk you through the starting process so that you can reach your performance goals.
The design of the pre-treatment method has a big effect on the membrane's life. Keeping the quality of the feed water within the acceptable ranges saves your investment and makes sure that the system works consistently.
Maintenance Guidelines
Regular monitoring prevents performance degradation. Track normalized permeate flow, salt passage, and differential pressure to identify when cleaning becomes necessary.
Chemical cleaning procedures restore membrane performance. Industry standards recommend cleaning when normalized flow drops by 10-15% or differential pressure increases by 15%.
Storage requirements protect spare membranes. Keep unused elements in original packaging with preservation solution to prevent microbial growth and membrane damage.
Quality Assurance and Support
Manufacturing Excellence
Our production facilities maintain ISO, CE, and ROHS certifications. These certifications demonstrate our commitment to quality and environmental responsibility.
Partnerships with established component suppliers ensure reliable supply chains. We work with trusted brands like Grundfos, Danfoss, and other industry leaders.
Technical Support Services
Expert engineering support helps optimize your system performance. Our team provides design assistance, troubleshooting guidance, and performance optimization recommendations.
Installation and commissioning services ensure proper system startup. We send qualified engineers to assist with on-site installation and initial operation.
Delivery and Logistics
Standard delivery timeframes support project planning. Membrane elements typically ship within 7 days, while complete systems require 20-35 days for manufacturing and testing.
Global distribution network enables efficient shipping to your location. Our 14+ branches and partners facilitate timely delivery and local support services.
Sample availability helps with system design and testing. We provide membrane samples for evaluation, with customers covering sample and shipping costs.
Contact Us
Ready to improve your water treatment performance? Our industrial ro membrane solutions provide the reliability and efficiency your operations demand. Contact our technical team to discuss your specific requirements and receive customized recommendations.
