RO EDI System - Advanced Ultrapure Water Treatment Solution

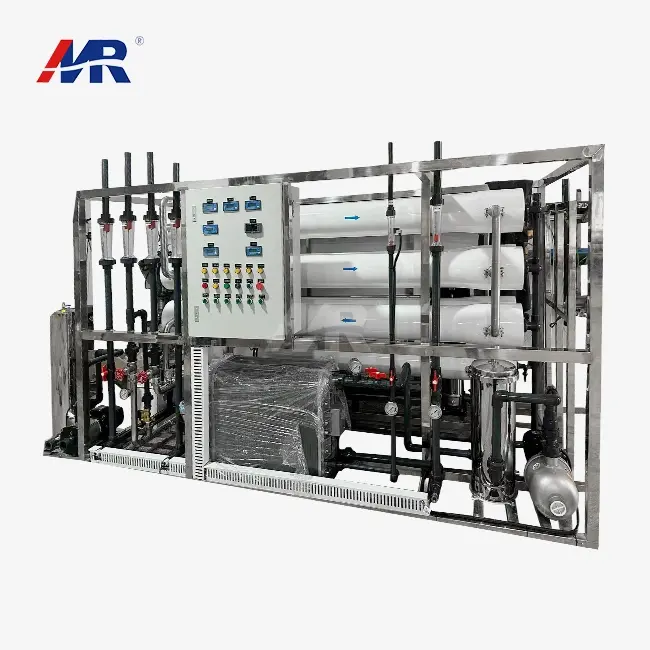

Guangdong Morui's ro edi system MR-EDI-10TH delivers enterprise-level ultrapure water production with exceptional efficiency. This advanced system combines reverse osmosis and electrodeionization technologies to achieve 99.99% salt rejection rates and 55% water recovery. Operating at 25kW/hour power consumption, our system produces consistent 10 tons per hour of ultrapure water for critical industrial applications. You get reliable, continuous operation without chemical regeneration downtime, making it perfect for pharmaceutical, semiconductor, and power generation facilities.

What Makes Our RO EDI Water System Special?

Our product uses cutting-edge technology to treat water. Unlike other ion exchange systems, this one doesn't need to use dangerous chemicals to regenerate. You get the benefit of uninterrupted production without any breaks in operation.

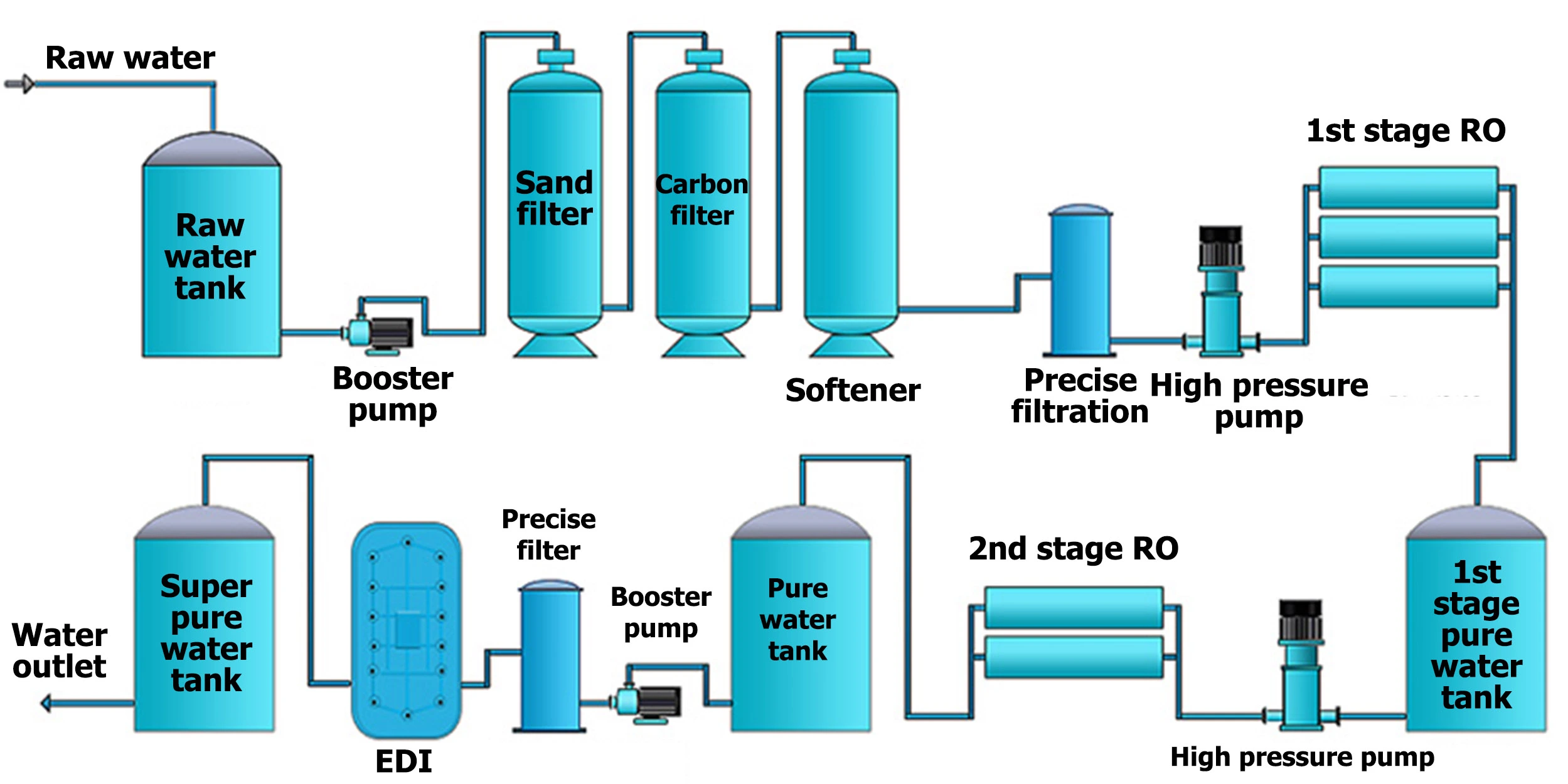

There are two main steps that make the method work. First, the reverse osmosis stage gets rid of 95–99% of all the solids, organics, and particles that are dissolved in the water. Then, ion exchange resins and DC electric fields are used by the EDI module to polish the water. This gets rid of any ionic species that are still there, even ones that aren't very strong, like carbon dioxide and silica.

Your building gets a lot of benefits. Not having to handle chemicals means more safety. Downtime is eliminated by continuous functioning. No matter how the feedwater changes, the quality of the water stays the same.

Technical Specifications

Key Applications

Pharmaceutical and Biotechnology

Your pharmaceutical operations require USP Grade Purified Water and Water for Injection (WFI). Our ro edi water system ensures compliance with strict GMP validation protocols. The chemical-free regeneration minimizes validation risks and prevents bio-burden proliferation. You can use this water for buffer preparation, culture media, and cleaning processes with complete confidence.

Power Generation Industry

Supercritical power plants need exceptional water quality for boiler feed water. Our system removes silica to less than 5 ppb, preventing turbine blade scaling and corrosion. You protect your valuable equipment while maintaining optimal efficiency in high-temperature, high-pressure environments.

Semiconductor Manufacturing

Microelectronics fabrication demands absolute ionic purity. Our ro edi water system delivers 18.2 MΩ·cm resistivity water, removing trace contaminants down to parts-per-trillion levels. You prevent defects in nanometer-scale circuitry during wafer rinsing and wet processing operations.

Advanced Technology Features

Electro-Regeneration Process

The heart of our system lies in continuous electro-regeneration. Water splitting creates H+ and OH- ions within the EDI cell, continuously polishing the resin. You never need to stop production for regeneration cycles.

Double-Pass RO Configuration

We incorporate double-pass reverse osmosis to reduce feed conductivity effectively. This preparation ensures optimal EDI performance. Membrane degassers supplement the process when needed, removing dissolved gases that could affect water quality.

Sanitary Design Standards

Our systems meet ASME BPE standards for bioprocessing equipment. Sanitary piping and 80°C hot water sanitization capabilities ensure your system stays clean. You maintain the highest hygiene standards for sensitive applications.

Quality Compliance

Your operations demand strict quality standards. Our ro edi system adheres to multiple international guidelines:

• ASTM D1193 Type I for analytical laboratory applications
• USP <645> and <643> for pharmaceutical conductivity and TOC requirements
• ISO certification for manufacturing quality
• CE marking for European compliance

Why Choose Morui's RO EDI Water System?

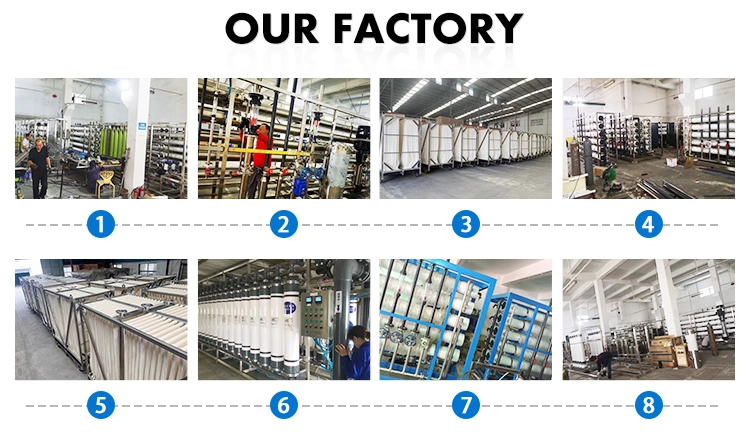

Morui Group has been in business for 19 years and has more than 500 employees. They can help you with your job. With 15 production workshops, we can get systems to you quickly—in just 20 to 35 days for whole systems. For reliable parts, you work with sources you can trust, like Toray, Dow, and Danfoss.

The engineering team at our company offers full help. We check the quality of your water and come up with custom options. Professional installation and testing services make sure that the startup goes smoothly. You get ongoing technical help for as long as your system works.

Some of our big companies, like Foxconn, CATL, and BYD, trust our water treatment services. Our yearly sales are more than $200 million, which shows that we are the market leader and that our customers are happy.

Installation and Support Services

You receive complete project support from design to commissioning. Our engineers assess your specific requirements and remove unnecessary treatment processes. This approach improves economic practicability while meeting your water quality goals.

Professional installation teams guide equipment setup at your facility. Comprehensive commissioning ensures optimal performance from day one. Training programs help your operators maintain peak system efficiency.

Contact Us

Ready to upgrade your ro edi system water treatment capabilities? Contact our expert team at benson@guangdongmorui.com for customized solutions.
